PBM-317-3G-10

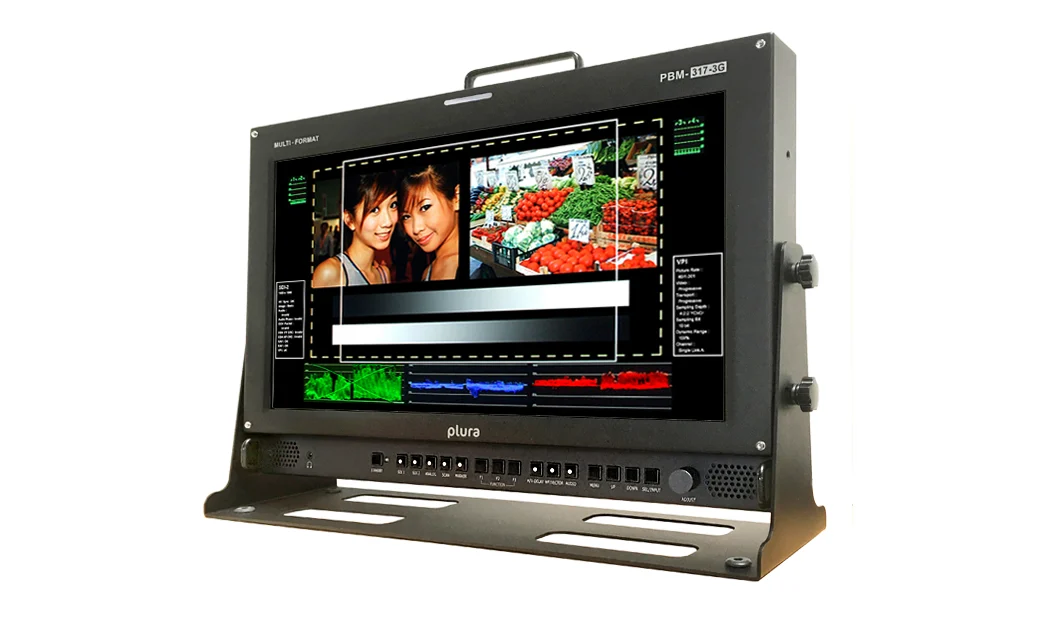

PBM-317-3G-10, 17″ Portable & Rack-mountable monitor offers an elegant slim design integrated with Grade A – 10 BIT LED 17″ panel and delivers outstanding BLACK performance, HDR (High Dynamic Range) capabilities, very fast response time for smooth video with virtually NO motion blur, High contrast ratio, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring application.

PBM-3G series designed for every possible broadcast mobile environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The PBM-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit look up table (LUT) (1024 steps of grayscale).

As an optional feature the PBM-3G series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

Contact Sales

Screen Size

17"

Backlight

LED

Video

3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

Advanced Features

Battery Operation, HDR

PBM-317-3G-10

Datasheet Contact Sales

Highlights

PBM-317-3G-10, 17” Portable & Rack-mountable Monitor
3Gb/s ready – 1080/60P
HDR (High Dynamic Range) capabilities
PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
Dual HD SDI YPbPr 4:2:2 – Dual HD SDI YPbPr/RGB 4:4:4 & 2K
RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
(ICAC) – Plura Intelligent Connection for Alignment & Calibration
Closed Caption (608/708) – North American Market
Teletext 801 & Subtitle OP-47 – Australia & NZ Market
Cutting edge De-interlacing and Scaling Technology
Ethernet & RS232 Remote Control
Ember+ compliant control system capabilities – OPTIONAL
Fast Response Time for high motion video
RGB 10 Bit Digital Signal Processing
178° Viewing Angle Display
Internal Monitor Display (IMD)
Underscan/ Overscan/ Normal / Zoom
Pixel to Pixel Mode, Tally, DC Operation
False Color and Peaking Filter / Focus Assist
Video Range Test with adjustable Y & C values
Display LTC & DVITC time code with line select
Internal Pattern Generator and Wall Control System
Built In Stereo Speaker , 16 CH Audio Metering Display
Analog & Embedded Audio Input, Digital Audio Decoding
Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
Various and User defined Markers Display, Safe Area in HD & SD
Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
Display Advanced Waveform & Vector Scope simultaneously with line select
Programmable Front Pushbutton Controls & GPI
OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor

Specifications

Weight	10 lbs
Dimensions	17.4 × 12.2 × 2.68 in
Screen Size	17"
Style	Desktop
Screen Resolution	1920×1080
Backlight	LED
Color Depth	10bit
Advanced Features	Battery Operation, HDR
Control	Optional Ember+, Ethernet, RS232, Wall Control System
ICAC	Yes
Video	3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV
Audio	Analog Audio, Embedded Digital Audio
Additional Features	Closed Caption, Vectorscope, Waveform
Housing	VESA (100×100) & (75×75), Optional 19" Rack
RU	7
Ember+ Complaint	Optional
