Home  //  Monitors  //  SFP-3G  //  SFP-224-3G

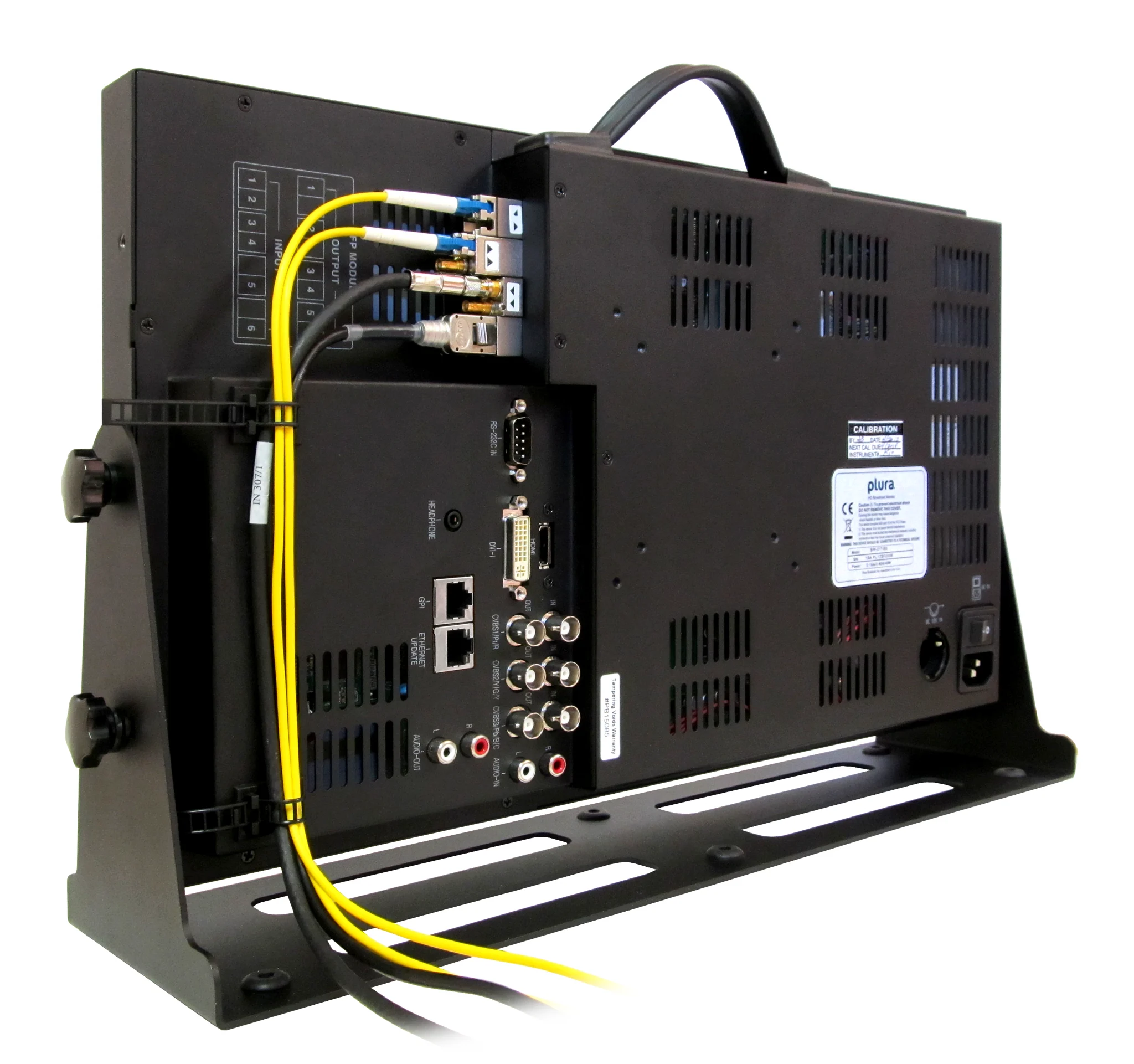

  • SFP-3G Back I/O
  • SFP-224-3G

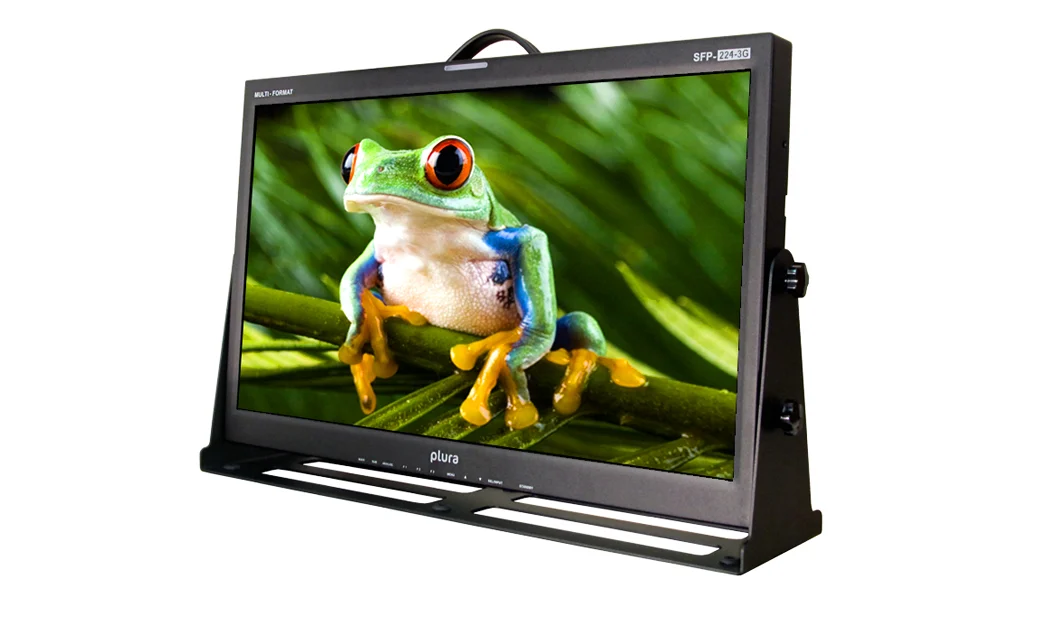

    The SFP-224-3G , 24″ monitor with full hd 1920×1200  high quality panel. The SFP-3G series adapt to various optional PLURA SFP modules which can fit any possible broadcast application. It supports up to 3 Gbps-1080-60P along with all other Digital and Analog inputs & formats.

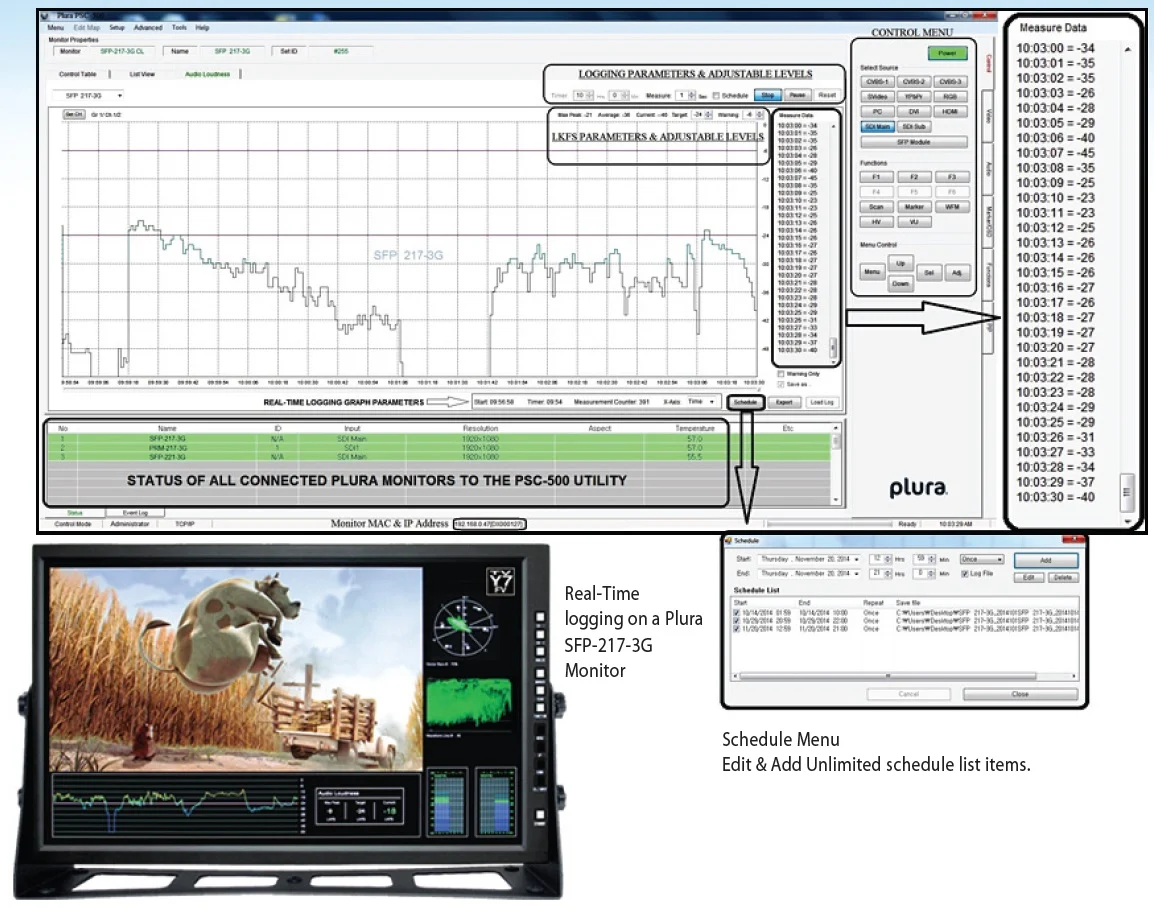

    The SFP-3G Plura QC Dashboard series offers the below NEW & Advanced features which takes Master Control monitoring to a higher and unmatched Level.

    • 6 x 6 Built-IN Cross-point Solution

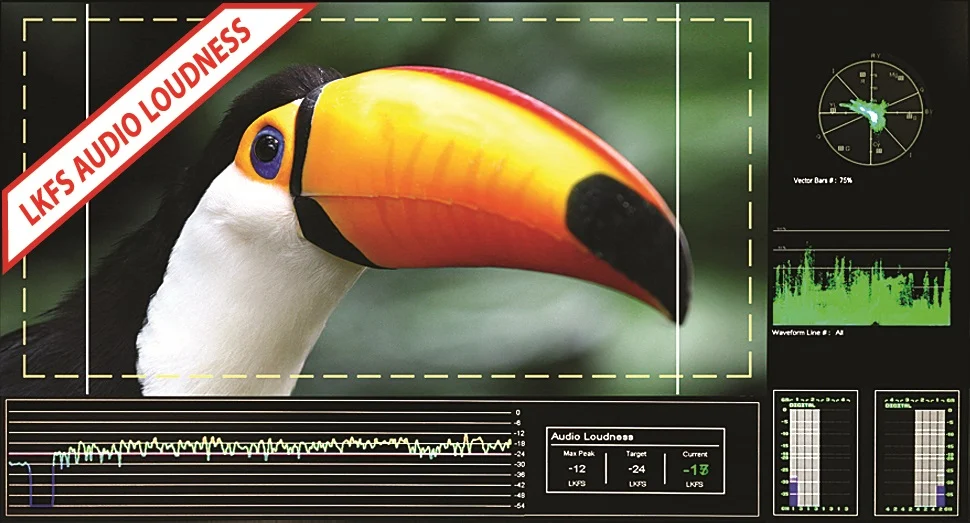

    • LKFS Audio Monitoring & logging
    • Closed Caption Real-Time display

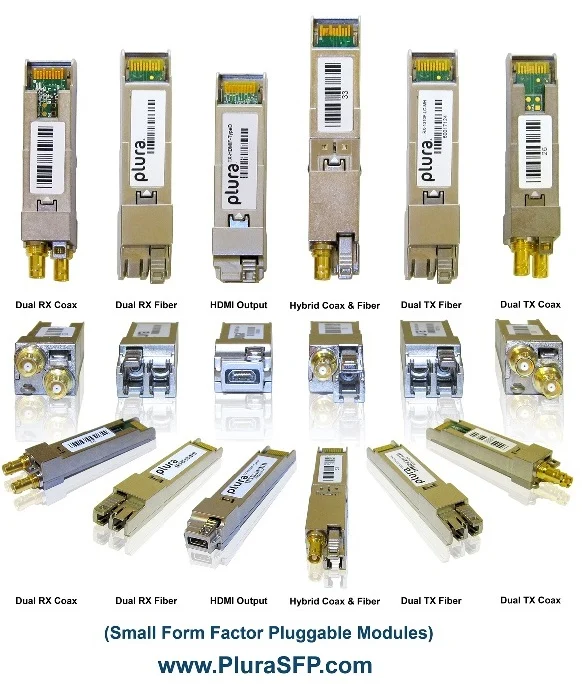

    • Multiple SFP module selection such as (Fiber, Coax, HDMI)

    Product Documents

    Datasheet

    • SFP-3G Datasheet

    Manuals

    • SFP-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • SFP-3G Mechanical Drawings

    Firmware

    • SFP-224-3G CC SN 13APL - 15APL Firmware
    • SFP-224-3G CC SN 17APL Firmware

    Additional Resources

    • Monitoring Accesories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • SFP-224-3G, 24″ Monitor supporting Coax & Fiber connectivity
    • 3Gb/s ready – 1080/60P
    • LKFS Audio Loudness Monitoring Tool
    • Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
    • 4 SFP Slots HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Fiber (RX, TX or Transceiver) and Coaxial (Rx, TX or Transceiver) optional connectivity
    • SDI to HDMI conversion with an optional SFP module
    • Built-IN 6 x 6 Cross Point Switcher
    • Inclusive Network Controller PSC-400 with Firmware & Cal. Transfer
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178° Viewing Angle Display
    • Closed Caption (608/708)
    • Color Temperature – User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • IMD & Time code display and Wall Control System
    • Pixel to Pixel Mode, Tally, DC Operation
    • Underscan/ Overscan/ Normal / Zoom
    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)

    Additional information

    Weight 35.27 lbs / 16.0 kg
    Dimensions 21.8 × 15.1 × 3.7 in / 553.7 × 383.5 × 94.0 mm
    Screen Size

    24"

    Style

    Desktop

    Screen Resolution

    1920×1200

    Backlight

    LED

    Color Depth

    8bit

    Advanced Features

    LKFS Measurement, SFP Modules Compatibility

    Control

    Ethernet, RS232, Wall Control System

    ICAC

    Yes

    Video

    3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (100×100) & (75×75), Optional 19" Rack

    RU

    9

    Videos

    Prev 1 of 1 Next
    • Ember+ TSL Integration with Plura Monitors

      Ember+ TSL Integration with Plura Monitors

      A short tutorial on how to operate the the Ember+ and TSL integration with Plura Monitors.
    • PLURA Tutorials: Factory Reset on a PBM Monitor

      PLURA Tutorials: Factory Reset on a PBM Monitor

      Q: How do I reset the unit?
      A: Go to: Menu -Setup - Setup Load - and select Factory.
