Home  //  Monitors  //  PBM-3G  //  PBM-307-3G
  • PBM-307-3G

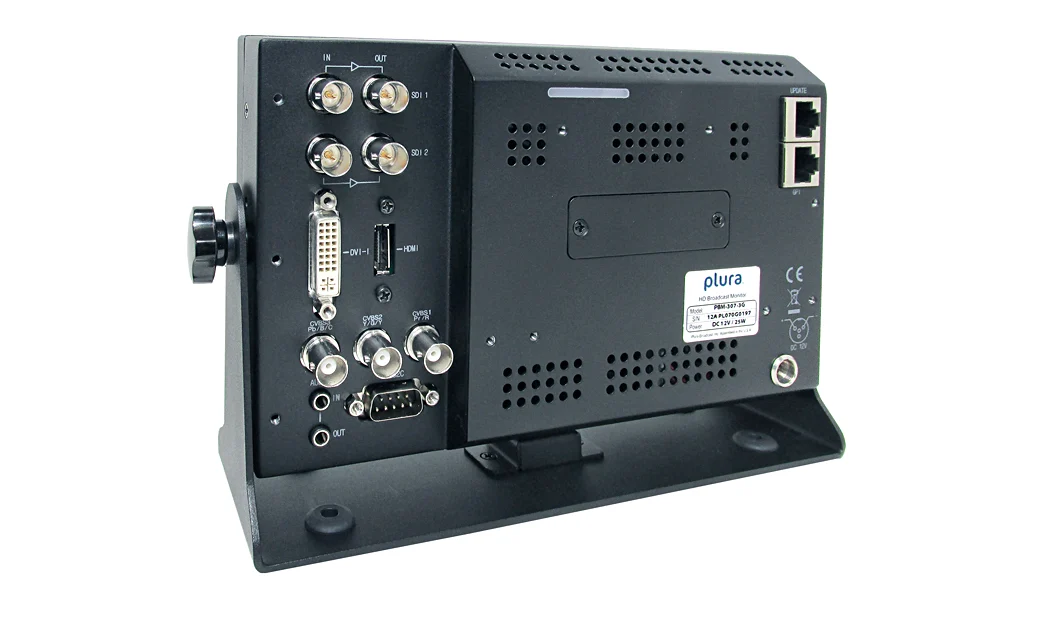

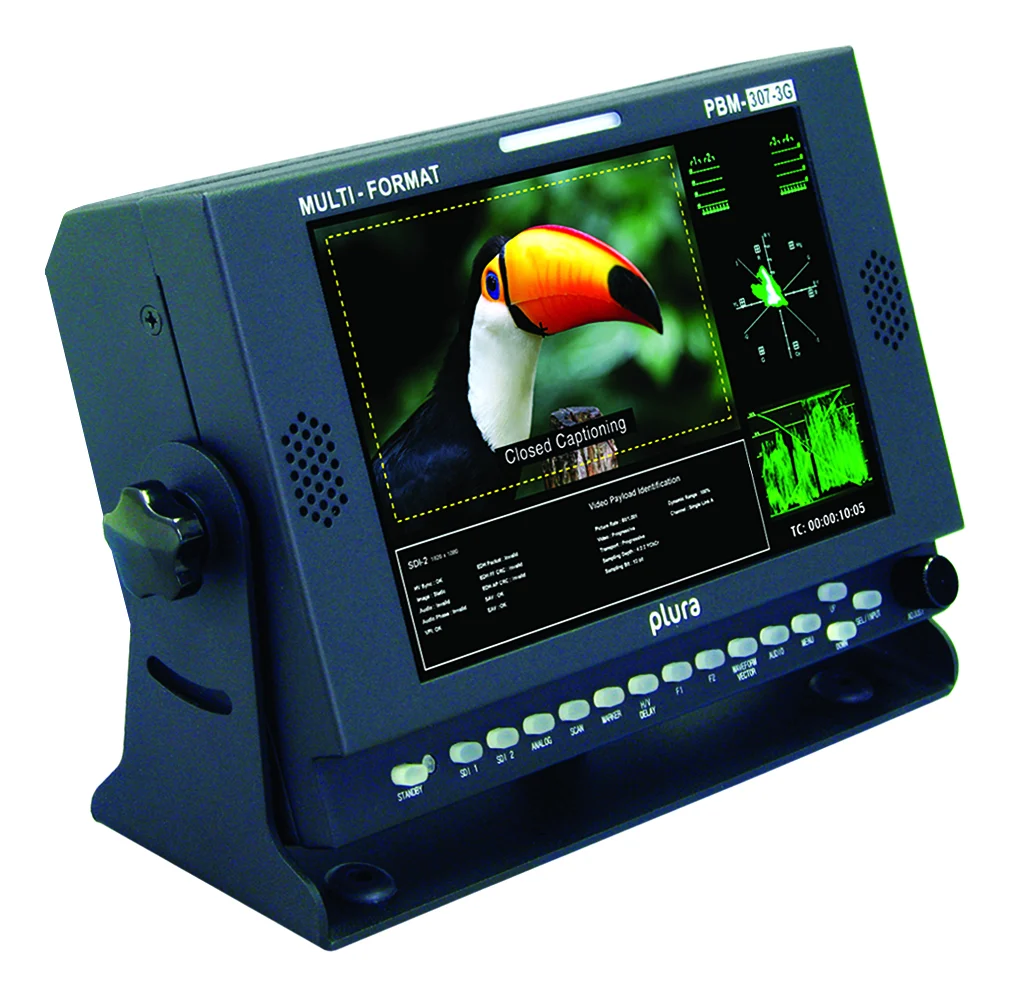

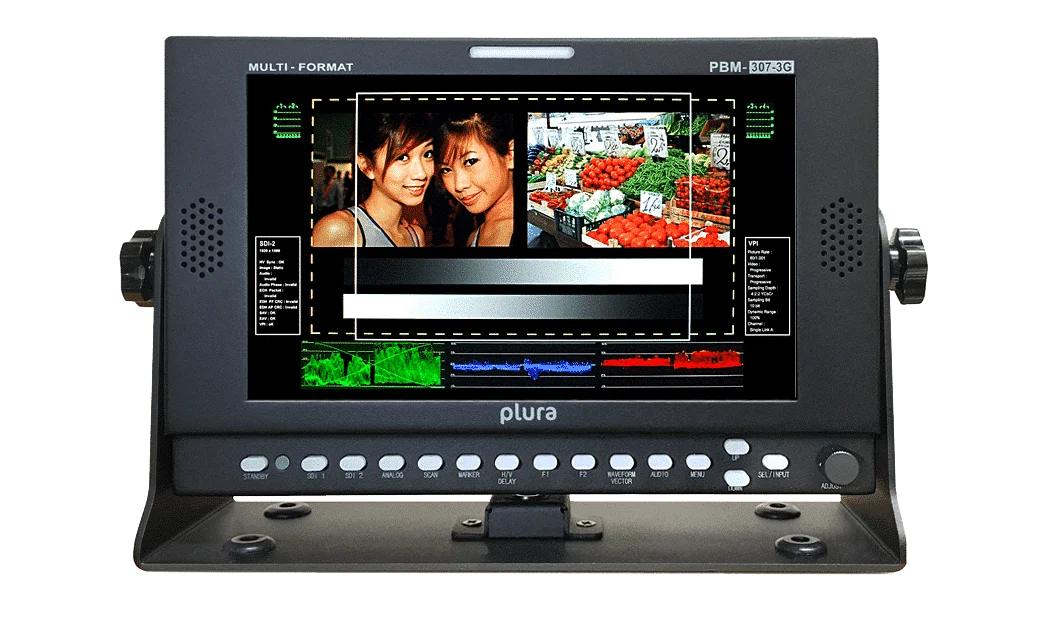

    PBM-307-3G, 7″ Portable monitor  consists of high quality portable LCD panel, specifically designed for multiple video server inputs program & preview monitoring, camera output & return feed side by side and multiple camera preview wall monitoring. PBM-3G series designed for every possible broadcast mobile environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

    The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The PBM-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit look up table (LUT) (1024 steps of grayscale).

    Product Documents

    Datasheet

    • PBM-3G Datasheet

    Manuals

    • PBM-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PBM-3G Mechanical Drawings

    Firmware

    • PBM-307-3G SN 12APL070G0001 - 12APL070G0225 Firmware
    • PBM-307-3G SN 12APL070G0226 - 16APL+ Firmware

    Additional Resources

    • Monitoring Accesories
    • Plura Products Catalog
    • PMT-200 Ember+/TSL Connectivity
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • PBM-307-3G, 7” Portable Monitor
    • 3Gb/s ready – 1080/60P

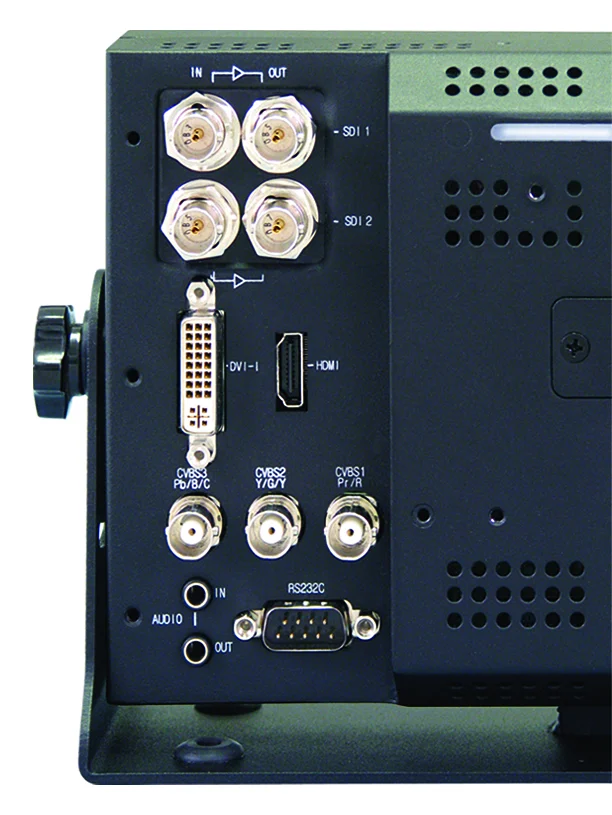

    • 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
    • Dual HD SDI YPbPr 4:2:2 – Dual HD SDI YPbPr/RGB 4:4:4 & 2K
    • RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • Closed Caption (608/708) – North American Market
      Teletext 801 & Subtitle OP-47 – Australia & NZ Market
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high motion video
    • RGB 10 Bit Digital Signal Processing
    • 178° Viewing Angle Display
    • Internal Monitor Display (IMD)
    • Underscan/ Overscan/ Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC Operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range Test with adjustable Y & C values
    • Display LTC & DVITC time code with line select
    • Internal Pattern Generator and Wall Control System
    • Built In Stereo Speaker , 16 CH Audio Metering Display
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Programmable Front Pushbutton Controls, GPI & RS232 Remote Control

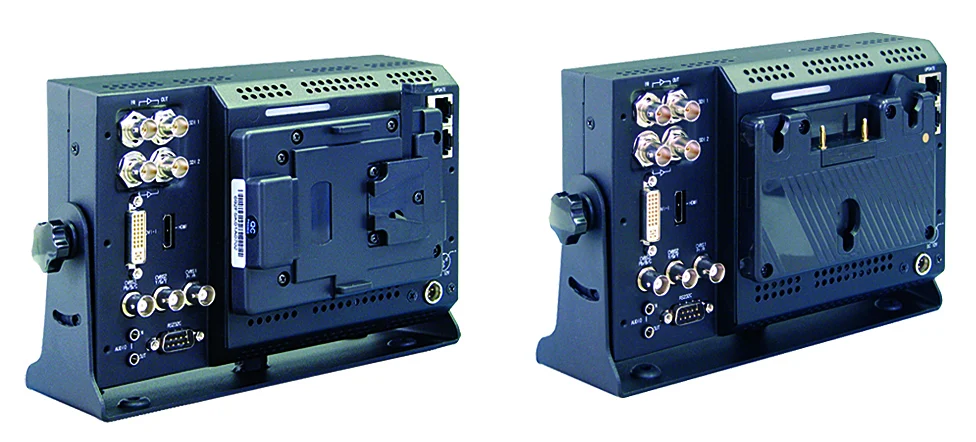

    • OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor

    Additional information

    Weight 2 lbs / 0.9 kg
    Dimensions 8 × 5.16 × 2 in / 203.2 × 131.1 × 50.8 mm
    Screen Size

    7"

    Style

    Desktop

    Screen Resolution

    1024×600

    Backlight

    LED

    Color Depth

    8bit

    Advanced Features

    Battery Operation

    Control

    Ethernet, RS232, Wall Control System

    ICAC

    Yes

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    Optional 19" Rack

    RU

    3

    Videos

    Prev 1 of 1 Next
    • Ember+ TSL Integration with Plura Monitors

      Ember+ TSL Integration with Plura Monitors

      A short tutorial on how to operate the the Ember+ and TSL integration with Plura Monitors.
    • PLURA Tutorials: Factory Reset on a PBM Monitor

      PLURA Tutorials: Factory Reset on a PBM Monitor

      Q: How do I reset the unit?
      A: Go to: Menu -Setup - Setup Load - and select Factory.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • 2019 NABShow New York - BFE Controller

      2019 NABShow New York - BFE Controller

      --
      Find out more about Plura Broadcast at plurainc.com
    • PLURA Tutorials: Change Function Keys on a PBM Monitor

      PLURA Tutorials: Change Function Keys on a PBM Monitor

      Q -- How do I change the function keys to a different function?
      A -- Go to: Menu - Setup - Function Key - Select the function Key - then select from the menu.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Select Closed Captioning on a PBM Monitor

      PLURA Tutorials: Select Closed Captioning on a PBM Monitor

      Q -- How do I choose Closed Captioning Standard?
      A -- Go to: Menu - Setup - Caption - Closed Caption - then select caption.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Correct Closed Captions on a PBM Monitor

      PLURA Tutorials: Correct Closed Captions on a PBM Monitor

      Video tutorial: How to correct closed caption problems on a PLURA PBM Monitor

      Q -- My 708 Closed caption is not functioning properly
      A- Try setting Closed Caption to 608 Transcoded.

      For other questions regarding PLURA Monitors, send an E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Standby on a PBM Monitor

      PLURA Tutorials: Standby on a PBM Monitor

      Q -- The unit will not come out of standby.
      A -- Hold the power button down for a minimum of 5 seconds.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Display Time Codes on a PBM Monitor

      PLURA Tutorials: Display Time Codes on a PBM Monitor

      Q -- How do I turn on the time code?
      A -- Go to: Menu - Setup - On Screen Display - Time Code - Time Code Enable - then select time code standard.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected]
      please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: User Setup on a PBM Monitor

      PLURA Tutorials: User Setup on a PBM Monitor

      Q -- Can I save a monitor setup for later use?
      A -- Yes, there are 3 user setup that can be saved for later use.
      A -- Go to: Menu - Setup - Save Setup - then select user 1 -3

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Show Audio Meters on a PBM Monitor

      PLURA Tutorials: Show Audio Meters on a PBM Monitor

      Q -- How do I change the audio meter to a different scale?
      A -- Go to: Menu - Audio - Level Meter - Level Meter Scale - then select scale.

      For other questions regarding PLURA Monitors, send a E-Mail to: [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Changing Languages on a PBM Monitor

      PLURA Tutorials: Changing Languages on a PBM Monitor

      Video tutorial: How to change change languages on a PLURA PBM Monitor

      Q -- My 708 Closed caption is not functioning properly
      A- Try setting Closed Caption to 608 Transcoded.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    • PLURA Tutorials: Turn Dual Link Off on a PBM Monitor

      PLURA Tutorials: Turn Dual Link Off on a PBM Monitor

      Q -- My unit keeps loosing lock or dropping to black.
      A -- Turn off the Dual Link Mode.
      Q -- How do I turn off Dual Link Mode?
      A -- Go to: Menu - Setup - Dual Link - then select Off.

      For other questions regarding PLURA Monitors, send a E-Mail to [email protected] please include monitor Model, Serial Number, Release Day, FPGA Version, hours on the unit, then a description of the issue. Someone will reply to you.
    Prev 1 of 1 Next

    Product Documents

    Datasheet

    • PBM-3G Datasheet

    Manuals

    • PBM-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PBM-3G Mechanical Drawings

    Firmware

    • PBM-307-3G SN 12APL070G0001 - 12APL070G0225 Firmware
    • PBM-307-3G SN 12APL070G0226 - 16APL+ Firmware

    Additional Resources

    • Monitoring Accesories
    • Plura Products Catalog
    • PMT-200 Ember+/TSL Connectivity
