Home  //  Monitors  //  PBM-4K  //  PBM-265-4K

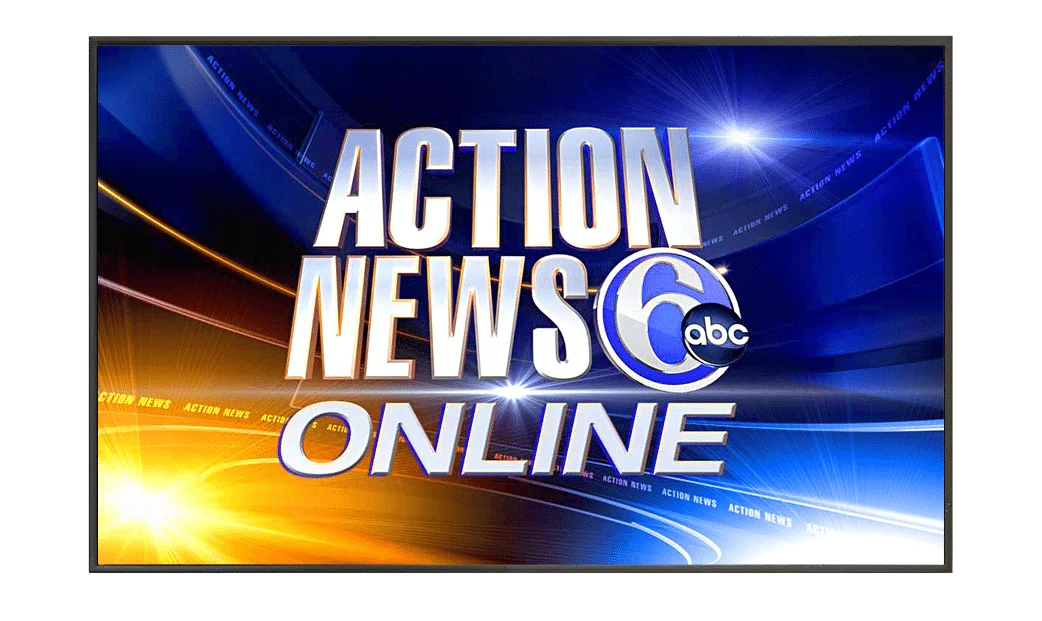

PBM-265-4K-1042x621PBM-265-4K-1042x621
  • PBM-249-4K
  • PBM-265-4K

    65″ monitor supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require.

    PBM-4K monitor series supports ST-2082, ST-2110 and other earlier industry standards, 2 x 12G/3G/HD/SD-SDI or 1 x Quad 3G-SDI (2SI / SQ) inputs with active loop, 2 x SFP+ inputs & HDMI 2.0.

    The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HLG standards. The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.





    Product Documents

    Datasheet

    • PBM-4K Datasheet

    Manuals

    • PBM-4K Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PBM-4K Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • PBM-265-4K, 65″ 4K – UHD Panel
    • Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • Supports IP SFP+ SDI over fiber decoding “ST-2110” with any Third-Party H/W decoder
    • 1 x SFP+ cages supporting 12G/10G/3G/1.5G SDI
    • 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) input ports
    • 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) output ports
    • 1 x HDMI 2.0a
    • 10 bit panel color depth
    • Supports up to 4096 x 2160 resolutions
    • HDR (High Dynamic Range) capabilities
    • PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
    • RGB 12 bit Digital Signal Processing
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 – 3.0)
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • 3D LUT (ITU-R BT 2020, Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema)
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Various and User defined Markers Display & Safe Area
    • Programmable 3 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) – North American Market
    • Cutting edge De-interlacing and scaling Technology
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control
    • Ember+ compliant control system capabilities
    • Underscan / Overscan / Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System

    Additional information

    Weight 88.1 lbs / 40.0 kg
    Dimensions 57.637 × 33.228 × 3.003 in / 1,464.0 × 844.0 × 76.3 mm
    Screen Size

    65"

    Style

    Desktop

    Screen Resolution

    3840×2160

    Backlight

    LED

    Color Depth

    10bit

    Advanced Features

    Closed Caption 708/608, Ember+, Teletext 801 & OP-47, Vectorscope / Waveform, 4K/UHD, HDR, IP2110, SFP Modules Compatibility

    Control

    Ember+, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    H/W Decoding

    ST-2110

    Video

    12G, 3G, DVI, HD-DL, HDMI, HDSDI

    Audio

    Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (600×400)

    Ember+ Complaint

    Yes
