Home  //  Timing  //  MTD Timer  //  UD56S
  • UD56S

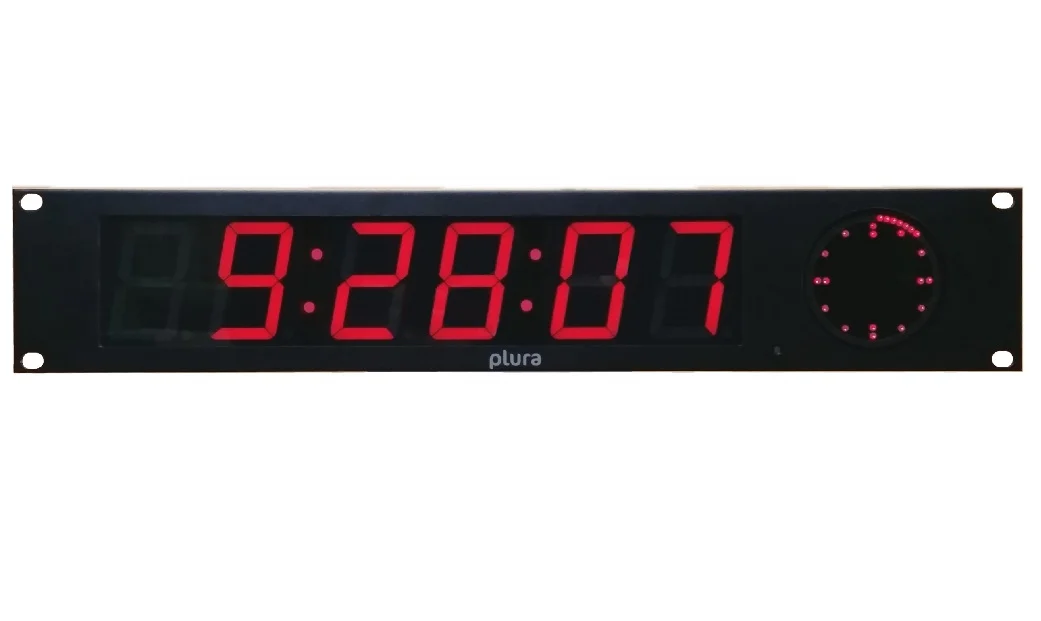

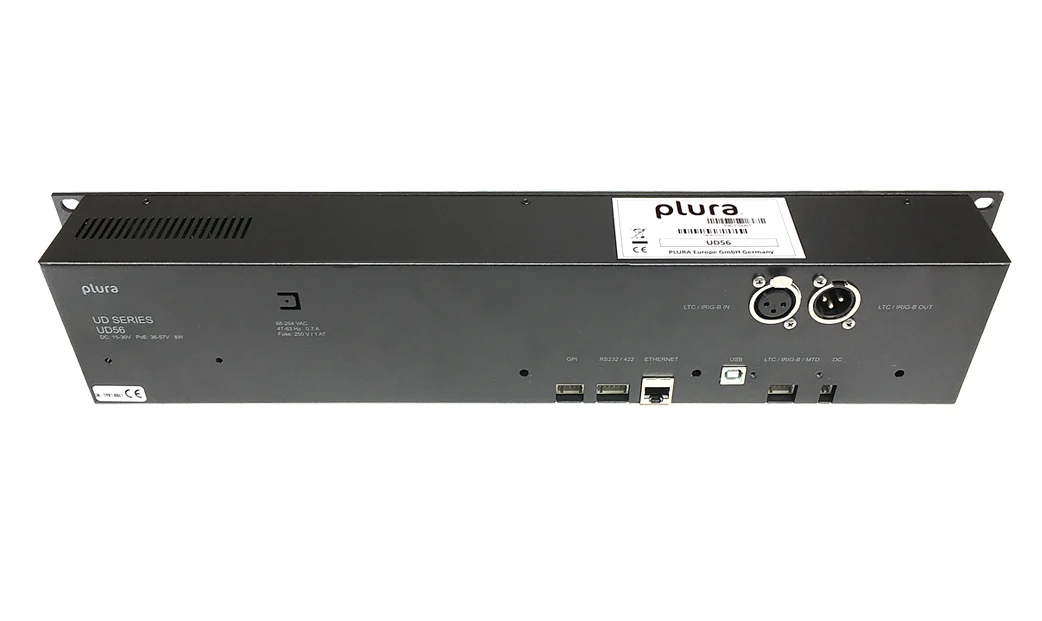

    UD56S displays are designed and engineered to perfection.

    UD56S displays built with 6 digits, 56 mm digit height, LED seconds ring, 19”,2RU housing.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    Product Documents

    Datasheet

    • UD56S Datasheet

    Manuals

    • UD56S Manual

    Firmware

    • UD56 / UD56S Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • 6 digits, 56 mm digit height, LED seconds ring, 19”,2RU housing.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels.
    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 1.76 lbs / 0.8 kg
    Dimensions 17.64 × 2.2 × 3.39 in / 448.1 × 55.9 × 86.1 mm
    Features

    NTP Client, Display, PoE, Power 220/110 Option, Reader, Timer

    Housing

    19" Rack, Stand Alone System

    RU

    2

    Reference Type

    MTD, GPS, IRIG-B, LTC, NTP

    Videos

    Prev 1 of 1 Next
    • MTDOnScreen Overview

      MTDOnScreen Overview

      Plura MTD: Multi Time Displays as an option on Plura Monitors.
    • 2014 Inter BEE - Ray Kalo of plura Broadcast

      2014 Inter BEE - Ray Kalo of plura Broadcast

      2014 Inter BEE - Ray Kalo of plura Broadcast --
      Find out more about Plura Broadcast at plurainc.com
    Prev 1 of 1 Next

    Product Documents

    Datasheet

    • UD56S Datasheet

    Manuals

    • UD56S Manual

    Firmware

    • UD56 / UD56S Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog

    Related products you might be interested in

    RUB GTThe RUB GT is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity. RUB GT module is a "Master Time Code" generator with most typical studio synchronization capabilities and supports various formats. The RUB GT is a complete generator solution designed for compact applications. i.e. Master LTC timecode system comprises of
    • RUB GT
    • RUB GNS10
    • RUB PM
    • RUB H1
    The RUB GT offers extensive monitoring and control capabilities, designed for complex and fail-proof redundant systems.
    RUB GT-LThe RUB GT-L is an optional software for the RUB GT module.
    RUB SIThe RUB SI is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity. The RUB SI is IRIG-B changeover and monitoring module.
    RUB SRThe RUB SR is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity. The RUB SR is a GPS 10MHz reference signal changeover unit and monitoring module.
