Home  //  Timing  //  MTD Timer  //  UD56-8
  • UD56-8

    UD56-8 displays are designed and engineered to perfection.

    UD56 displays built with 8 digits, 56 mm digit height, 19”,2RU housing.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    For more product information & support please contact Plura sales team.

    Product Documents

    Manuals

    • UD56-8 Manual

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

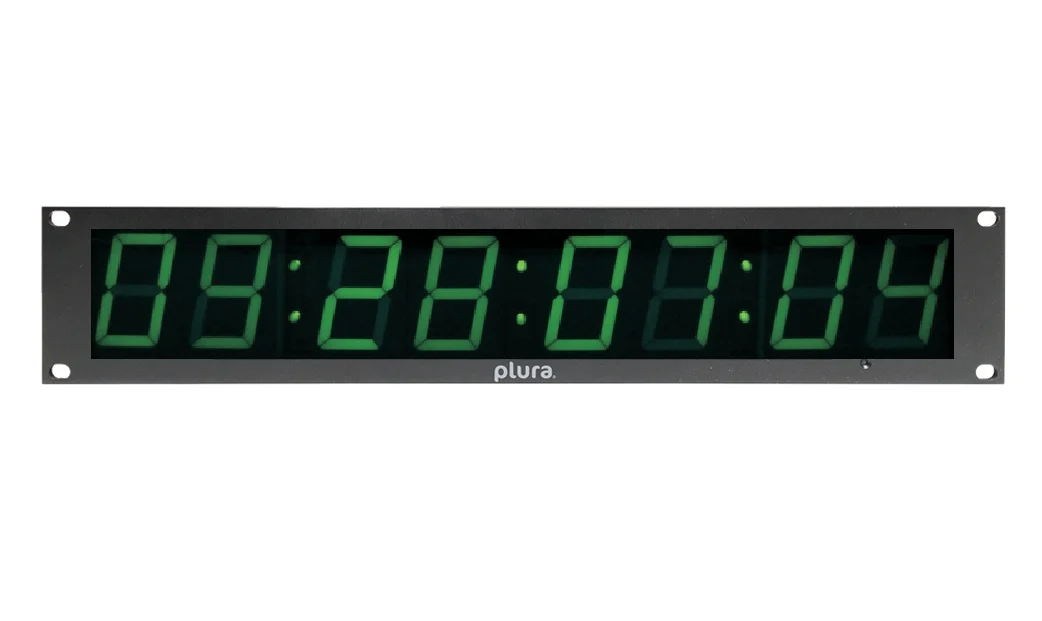

    • 8 digits, 56 mm digit height, 19”,2RU housing.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels.

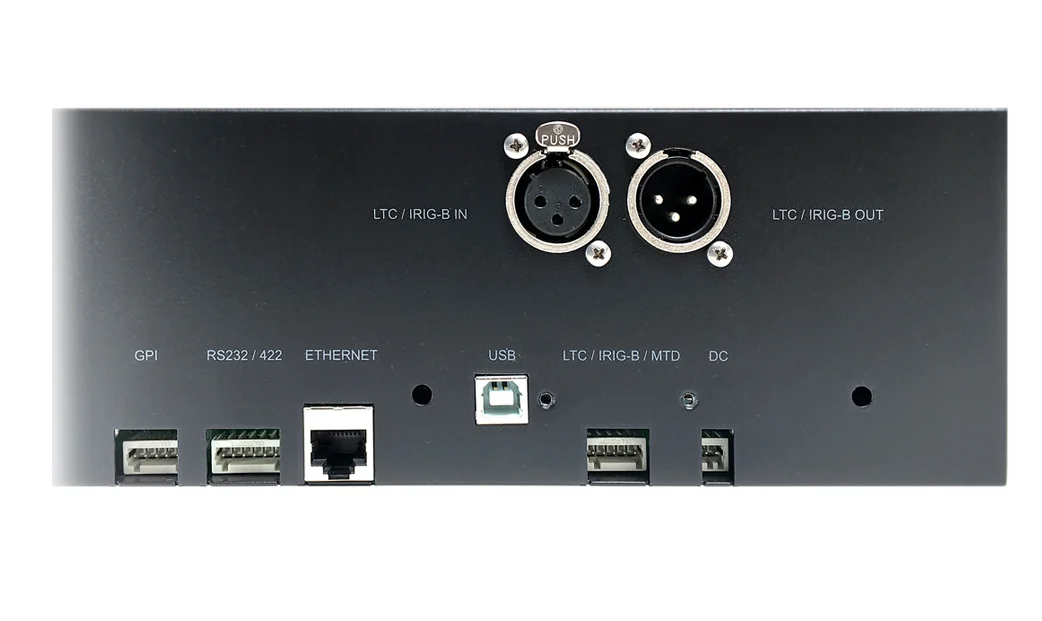

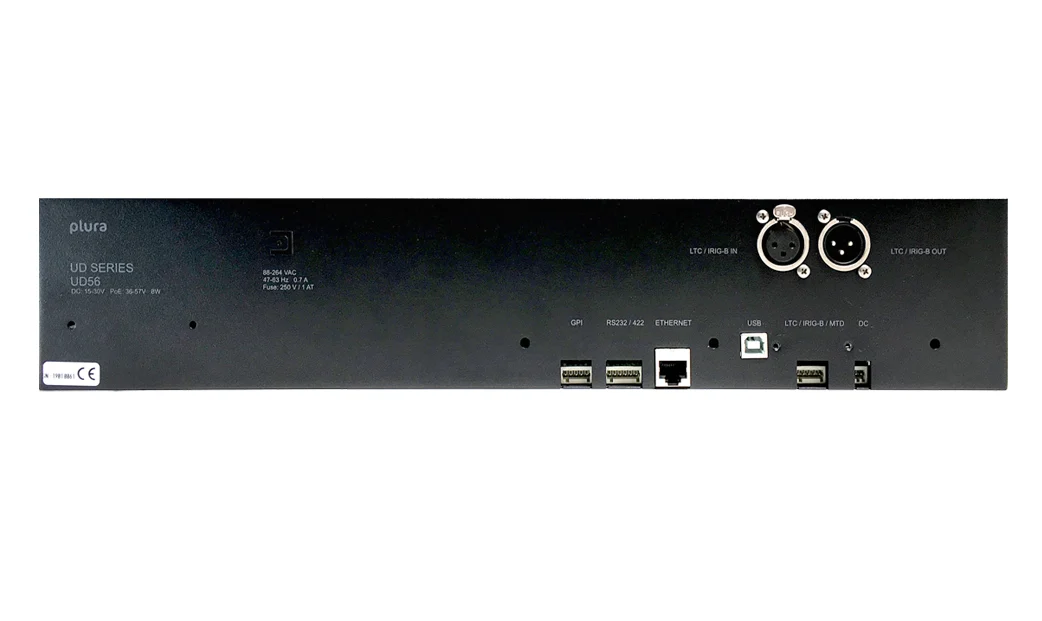

    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Built to order
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 2.0 lbs / 0.9 kg
    Dimensions 1.764 × 2.2 × 3.39 in / 44.8 × 55.9 × 86.1 mm
    Features

    NTP Client, Display, PoE, Power 220/110 Option, Reader, Timer

    Housing

    19" Rack, Stand Alone System

    Reference Type

    MTD, GPS, IRIG-B, LTC, NTP

    RU

    2

    Notes

    BTO
