Home  //  Timing  //  MTD Timer  //  UD300

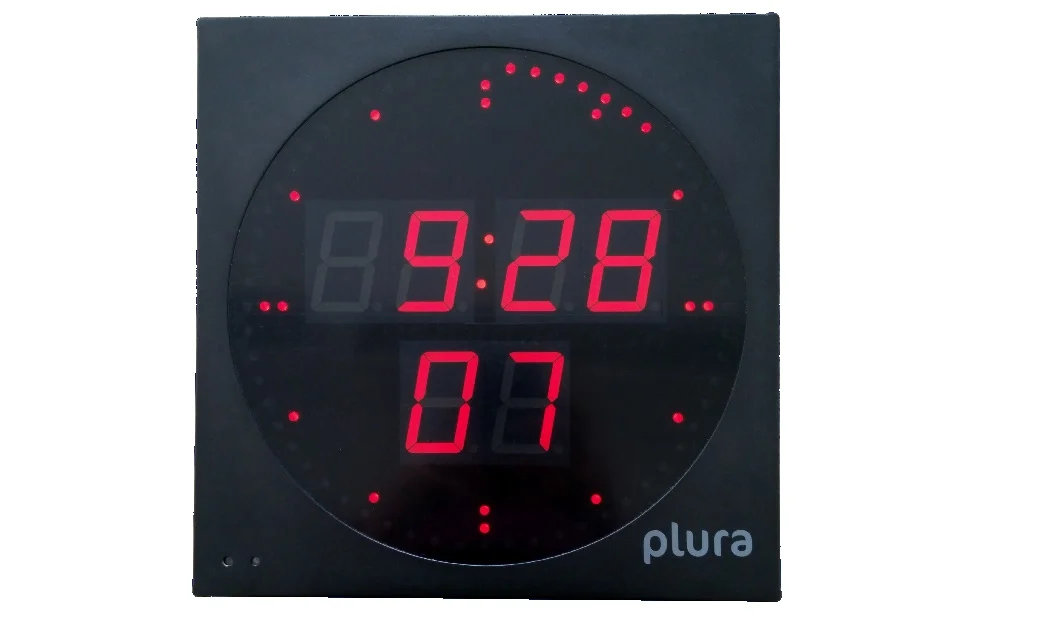

UD300_FrontUD300_Front
  • UD300

    UD300 displays are designed and engineered to perfection.

    UD300 displays built with LED ring, 300 mm square housing.

    UD300D displays is an added option 25 mm display, 6 digits.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    Product Documents

    Datasheet

    • UD300 Datasheet

    Manuals

    • UD300 Manual

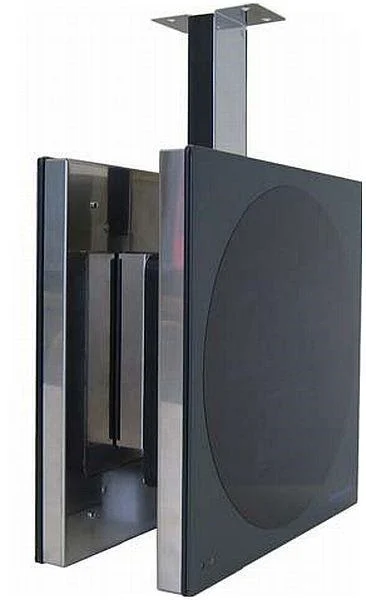

    • UD300W Wall Mount

    Firmware

    • UD300 / UD300D Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • LED ring, 300 mm square housing.
    • UD300D is an added option 25 mm display, 6 digits.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels.
    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 7.05 lbs / 3.2 kg
    Dimensions 12.72 × 2.36 × 12.72 in / 323.1 × 59.9 × 323.1 mm
    Features

    NTP Client, Display, PoE, Power 220/110 Option, Timer

    Housing

    Stand Alone System

    Reference Type

    MTD, GPS, IRIG-B, LTC
