Home  //  Timing  //  MTD Timer  //  UD56

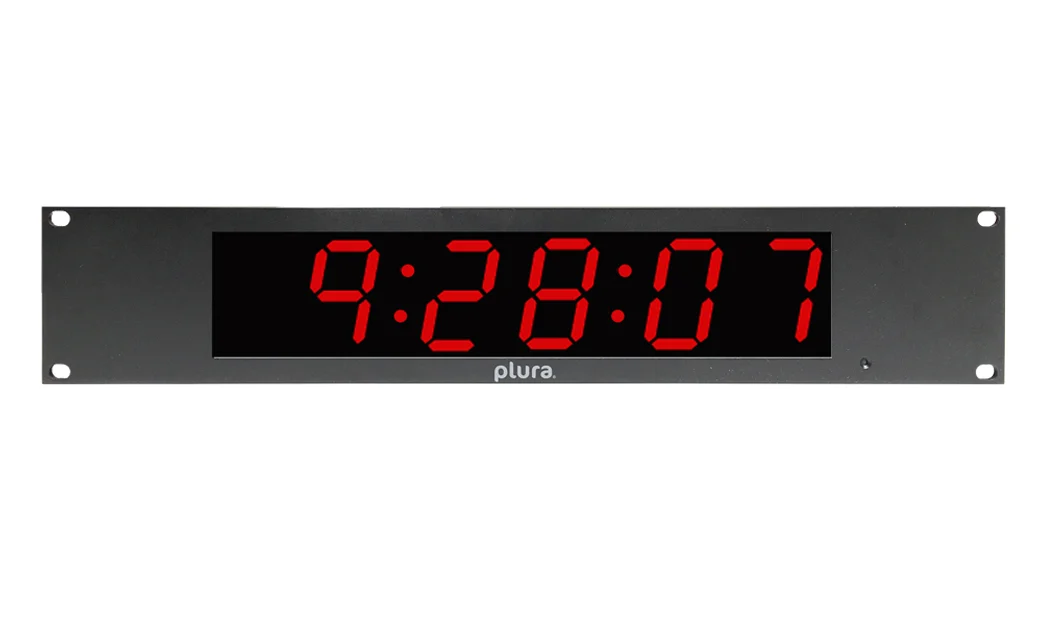

UD56-front-1042x621UD56-front-1042x621
UD56-front-1042x621UD56-front-1042x621
  • UD56

    UD56 displays built with 6 digits, 56 mm digit height, 19”, 2RU housing.

    UD56 displays are designed and engineered to perfection.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    Product Documents

    Datasheet

    • UD56 Datasheet

    Manuals

    • UD56 Manual
    • MTD Installation + Operation Manual

    Firmware

    • UD56 Firmware
    • UD56 Release Notes

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • 6 digits, 56 mm digit height, 19”, 2RU housing.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels.
    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 1.76 lbs / 0.8 kg
    Dimensions 17.64 × 2.2 × 3.39 in / 448.1 × 55.9 × 86.1 mm
    Housing

    19" Rack, Stand Alone System

    Features

    NTP Client, Display, PoE, Power 220/110 Option, Reader, Timer

    RU

    2

    Reference Type

    MTD, GPS, IRIG-B Optional, LTC
