Home  //  Timing  //  Rubidium  //  Generators  //  RUB C3

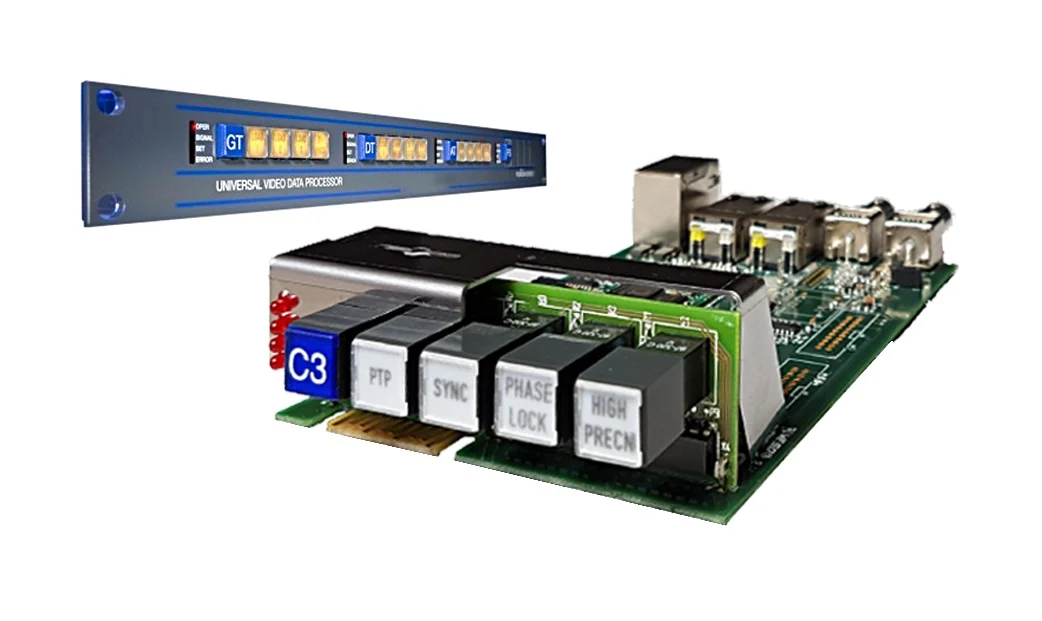

RUB C3 -ieee-1588-ptp-v2-1042x621-RUB C3 -ieee-1588-ptp-v2-1042x621-
  • RUB C3

    The RUB C3 is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity.

    The RUB-C3 module conforms to SMPTE 2059-2 standards & IEEE 1588-2008 PTPv2 profile.

    The RUB C3 is the one of the most accurate tools to generate PTP signals in the broadcast industry.

    The RUB C3 has two 10MHz outputs and can be synchronized with any third-party SPG system.

    Product Documents

    Datasheet

    • RUB PTP C3 Datasheet

    Manuals

    • RUB PTP C3 Manual

    Firmware

    • RUB C3 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • The RUB C3 module has five different S/W platforms that can be programmed to:-
        1. GM = Grandmaster Slave Mode
        2. SL = Slave Mode
        3. BC = Boundary Clock.
        4. GF = Grandmaster with fallback
        5. BG = Boundary Clock with GPS option
    • 10/100/1000 Base-T PTP Ethernet port
    • Compatible with SMPTE 2059-2
    • Two 10 Mhz outputs come standard, third output is an option
    • PPS, time and date data string reference outputs
    • Additional unbalanced and balanced PPS outputs
    • Leap year/second compatible
    • SNMP ready
    • Hot Swappable
    • Failure Relay
    • Compatible with TC_link
    • Integrated Surge Voltage Protector

    Additional information

    Weight 0.66 lbs / 0.3 kg
    Dimensions 4.1 × 1.7 × 6.5 in / 104.1 × 43.2 × 165.1 mm
    Generate

    PTP Optional

    Reference Type

    PTP Optional

    Housing

    Modular

    Product Documents

    Datasheet

    • RUB PTP C3 Datasheet

    Manuals

    • RUB PTP C3 Manual

    Firmware

    • RUB C3 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog

    Related products you might be interested in

    RUB GIThe RUB GI is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity. The RUB GI module is precise and accurate master IRIG-B generator which can be Gen-locked to a system reference. The RUB GI is a complete generator solution designed for compact applications. i.e. Master IRIG-B system comprises of
    • RUB GI

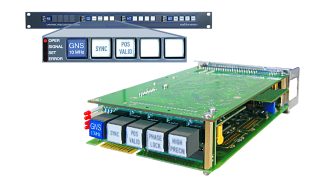

    • RUB GNS10
