SFP-355-H

The SFP-355-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SDI SFP+ over Fiber decoding “ST-2110” with Third-Party H/W decoder and the NEW PIPM-R-7 “Plura Software Stack IP Platform” decoder.

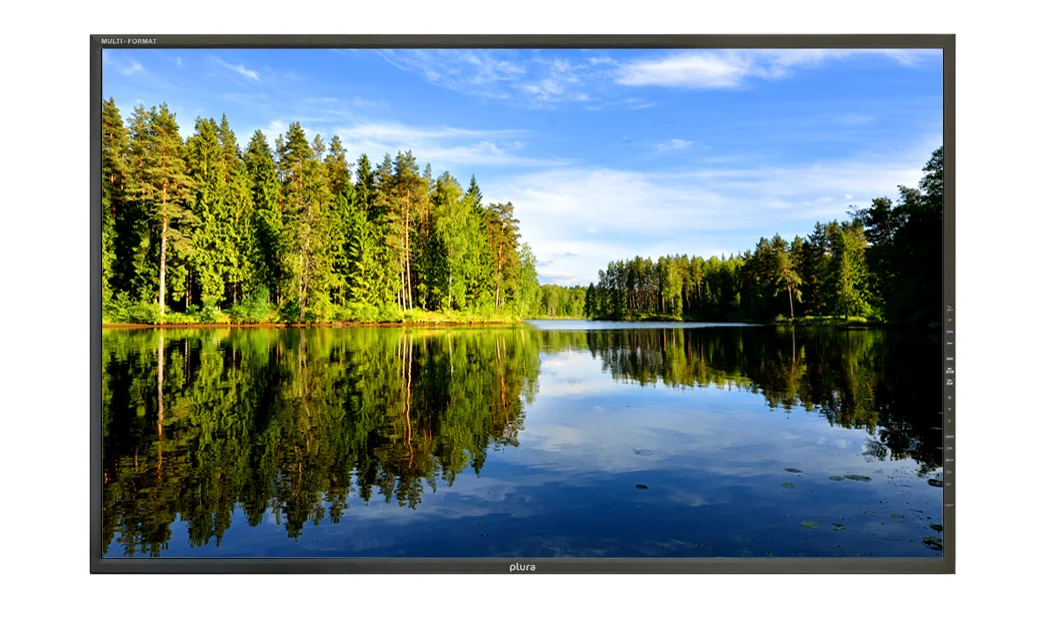

SFP-355-H, 55″ monitor is the NEW FUTURE PROOF Hybrid Monitor which supports

IP – 10G/s SFP+
Fiber – 3Gb/s SFP
Coaxial SFP 3Gb/s
Direct BNC 3Gb/s I/O

SFP-H is the ONLY monitor series in the market that can decode ST-2110 and ST-2022-7 IP streams with PIPM-R-7 “Plura Software Stack IP Platform” based on a powerful computing core and utilizing standard 10G/s SFP+ module.

As an optional feature the SFP-H series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

Contact Sales

Screen Size

55"

Backlight

LED

Video

3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

Advanced Features

LKFS Measurement, SFP Modules Compatibility

SFP-355-H

Datasheet Contact Sales

Highlights

SFP-355-H, 55″ Hybrid Monitor supporting Coax, Fiber & IP connectivity

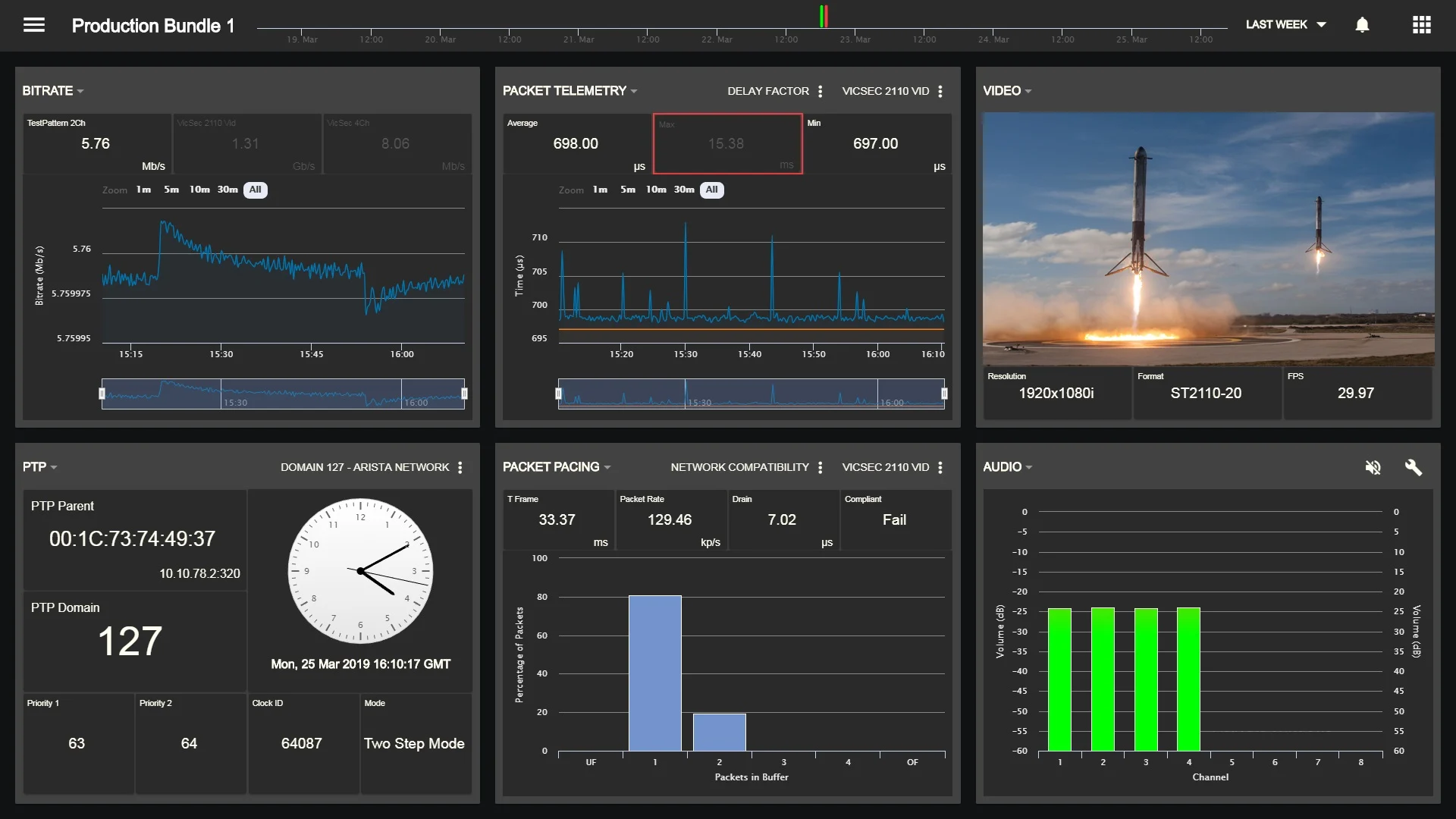

Decode ST-2110 and ST-2022-7 IP streams with “PIPM-R-7” Plura Software Stack IP Platform module

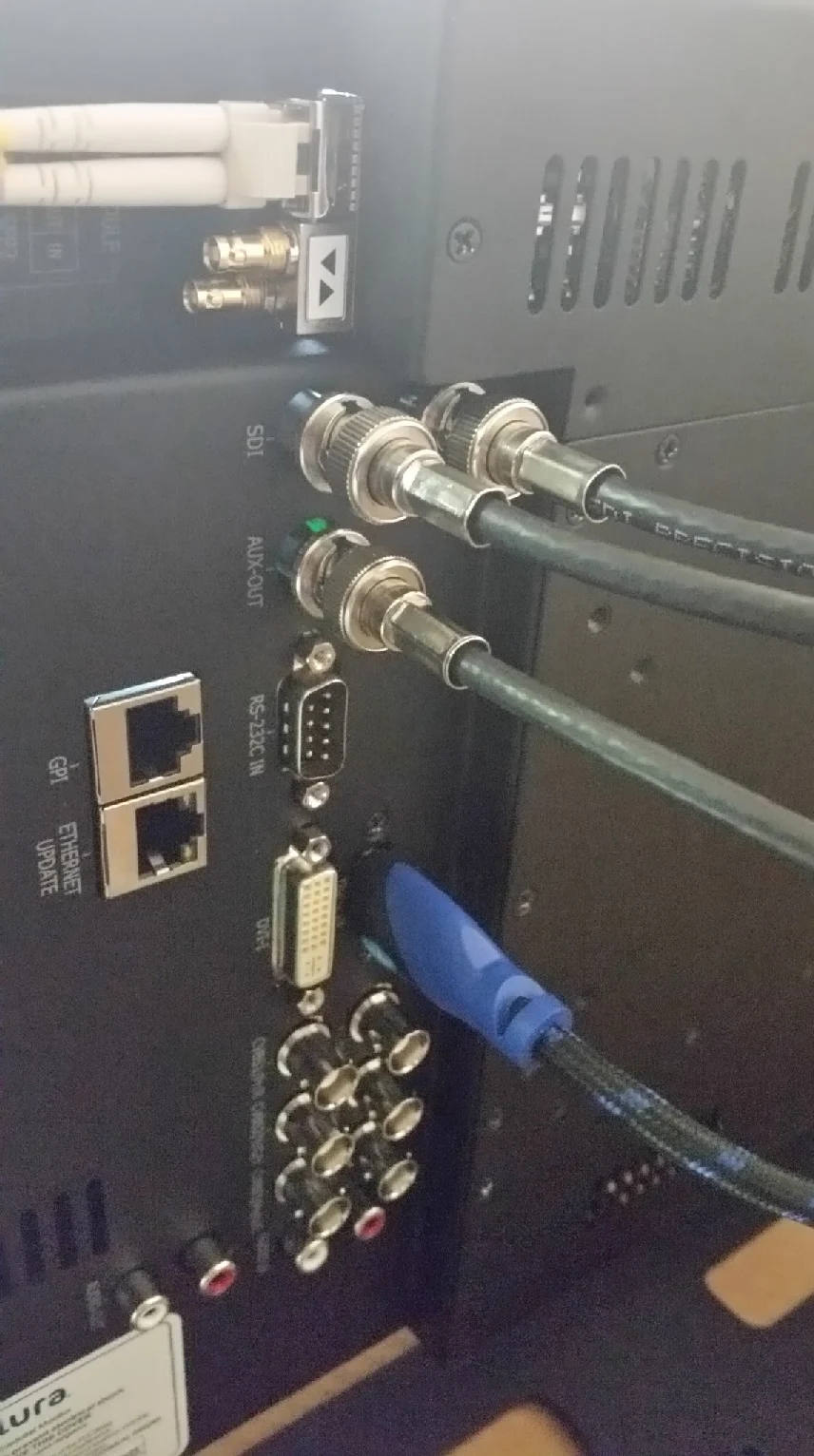

Supports Coaxial 3Gb/s BNC I/O connectivity
Supports Coaxial SFP I/O connectivity
Supports IP SDI SFP+ over fiber decoding “ST-2110” with any Third-Party H/W decoder

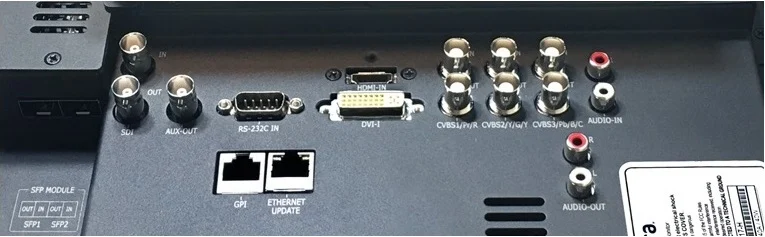

2 x SDI SFP+ cages supporting 10G/3G/1.5G SDI
1 x 3G/1.5G Input port
2 x 3G/1.5G output ports
LKFS Audio Loudness logging & measurement
*“PIPM-R-7” Plura Software Stack IP Platform – OPTIONAL
Built-IN 4 x 4 Crosspoint Solution
1 x HDMI, 1 x DVI & other legacy I/O
178 degree Viewing Angle Display
Gamma Selectable ( 0.8 – 3.0)
Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
(ICAC) – Plura Intelligent Connection for Alignment & Calibration

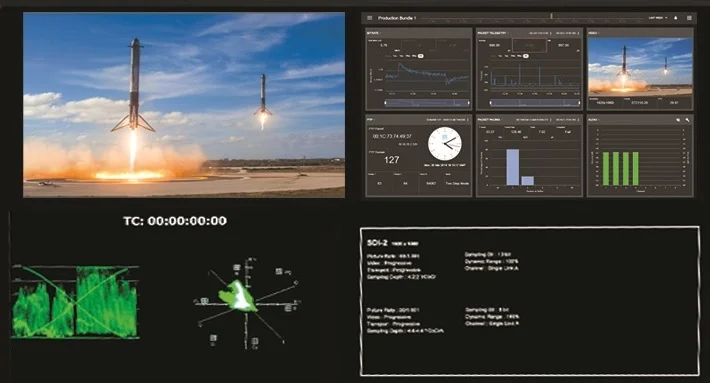

Display Advanced Waveform & Vector Scope simultaneously with line select
Various and User defined Markers Display & Safe Area
Programmable 3 User Front Pushbutton Controls & GPI
Closed Caption (608/708) – North American Market
Cutting edge De-interlacing and scaling Technology
Fast Response Time for high motion video
Internal Monitor Display (IMD)
Ethernet & RS232 Remote Control
Ember+ compliant control system capabilities – OPTIONAL
Underscan / Overscan / Normal / Zoom
Pixel to Pixel Mode, Tally, DC operation
False Color and Peaking Filter / Focus Assist
Video Range test with adjustable Y & C values
Display LTC & DIVTC time code with line select
Embedded Audio input, Digital Audio Decoding
Internal Pattern Generator and Wall Control System

Specifications

Weight	66 lbs
Dimensions	49.17 × 28.6 × 3.3 in
Screen Size	55"
Style	Desktop
Screen Resolution	1920×1080
Backlight	LED
Color Depth	10bit
Advanced Features	LKFS Measurement, SFP Modules Compatibility
Control	Optional Ember+, Ethernet, RS232, Wall Control System
ICAC	Yes
H/W Decoding	ST-2110
S/W Decoding	ST-2110
Video	3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV
Audio	Analog Audio, Embedded Digital Audio
Additional Features	Closed Caption, Vectorscope, Waveform
Housing	VESA (400×400)
Ember+ Complaint	Optional
