Home  //  Monitors  //  SFP-H  //  SFP-321-H
SFP-321-H-front-1042x621SFP-321-H-front-1042x621
  • SFP-H I/O

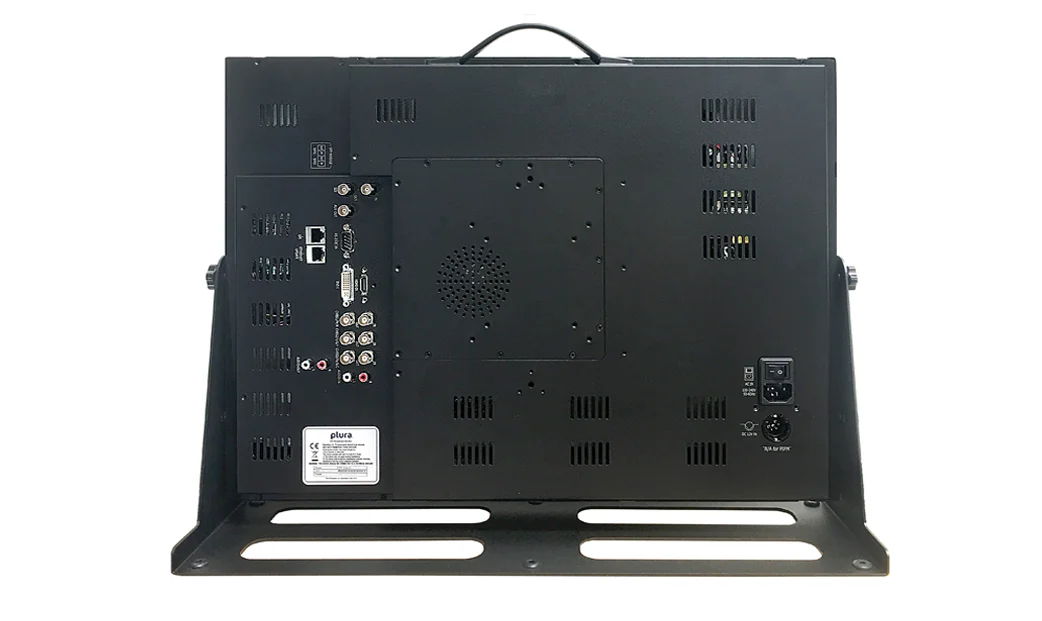

  • SFP-H Back
  • SFP-H IO Connectivity
  • SFP-321-H

    The SFP-321-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SDI SFP+ over Fiber decoding “ST-2110” with Third-Party H/W decoder and the NEW PIPM-R-7 “Plura Software Stack IP Platform” decoder.

    SFP-321-H, 21″ monitor is the NEW FUTURE PROOF Hybrid Monitor which supports

    • IP – 10G/s SFP+
    • Fiber – 3Gb/s SFP
    • Coaxial SFP 3Gb/s
    • Direct BNC 3Gb/s I/O

    SFP-H is the ONLY monitor series in the market that can decode ST-2110 and ST-2022-7 IP streams with PIPM-R-7 “Plura Software Stack IP Platform” based on a powerful computing core and utilizing standard 10G/s SFP+ module.

    As an optional feature the SFP-H series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    Product Documents

    Datasheet

    • SFP-H Datasheet

    Manuals

    • SFP-H Manual
    • PIPM-R-7 - 2110, 2022-7 Type A Module Manual
    • PIPM-R-7 - 2110, 2022-7 Type C Module Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • SFP-H Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • Plura 2110 Interoperability Specifications
    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • SFP-321-H, 21″ Hybrid Monitor  supporting Coax, Fiber & IP connectivity
    • Decode ST-2110 and ST-2022-7  IP streams with “PIPM-R-7” Plura Software Stack IP Platform module
    • Supports Coaxial 3Gb/s BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • Supports IP SDI SFP+ over fiber decoding “ST-2110” with any Third-Party H/W decoder
    • 2 x SDI SFP+ cages supporting 10G/3G/1.5G SDI
    • 1 x 3G/1.5G Input port
    • 2 x 3G/1.5G output ports
    • LKFS Audio Loudness logging & measurement
    • Built-IN 4 x 4 Crosspoint Solution
    • 1 x HDMI, 1 x DVI & other legacy I/O
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 – 3.0)
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Various and User defined Markers Display & Safe Area

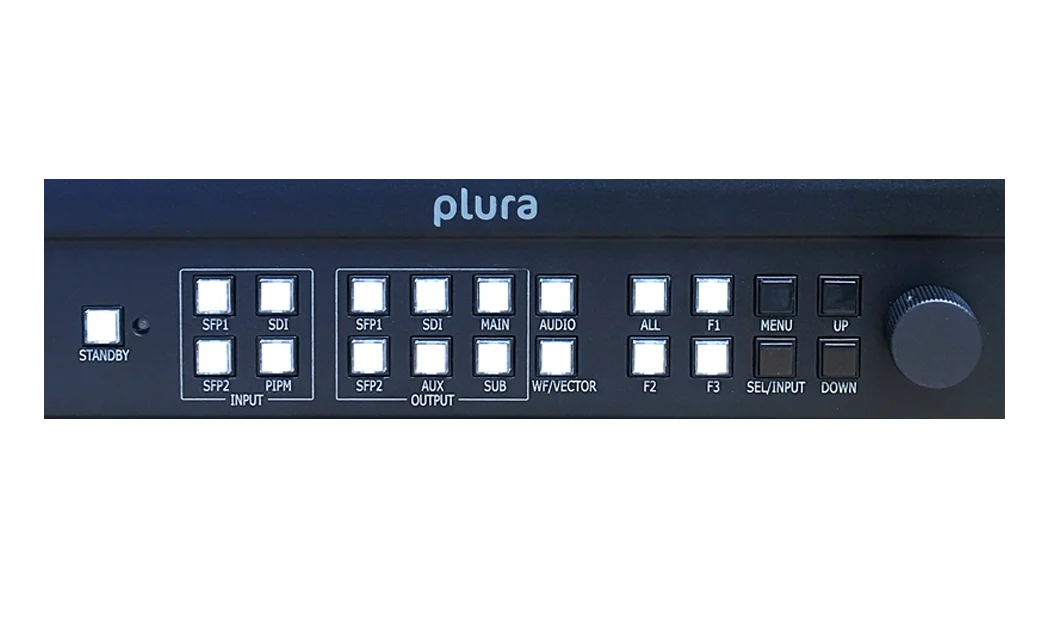

    • Programmable 3 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) – North American Market
    • Cutting edge De-interlacing and scaling Technology
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control
    • Ember+ compliant control system capabilities – OPTIONAL
    • Underscan / Overscan / Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System

    Additional information

    Weight 17 lbs / 7.7 kg
    Dimensions 20.787 × 13.779 × 2.559 in / 528.0 × 350.0 × 65.0 mm
    Screen Size

    21"

    Style

    Desktop

    Screen Resolution

    1920×1080

    Backlight

    LED

    Color Depth

    8bit

    Advanced Features

    Battery Operation, LKFS Measurement, SFP Modules Compatibility

    Control

    Optional Ember+, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    H/W Decoding

    ST-2110

    S/W Decoding

    ST-2110

    Video

    3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (100×100) & (75×75), Optional 19" Rack

    RU

    8

    Ember+ Complaint

    Optional
