Home  //  Monitors  //  LCM-3G  //  LCM-307-3G

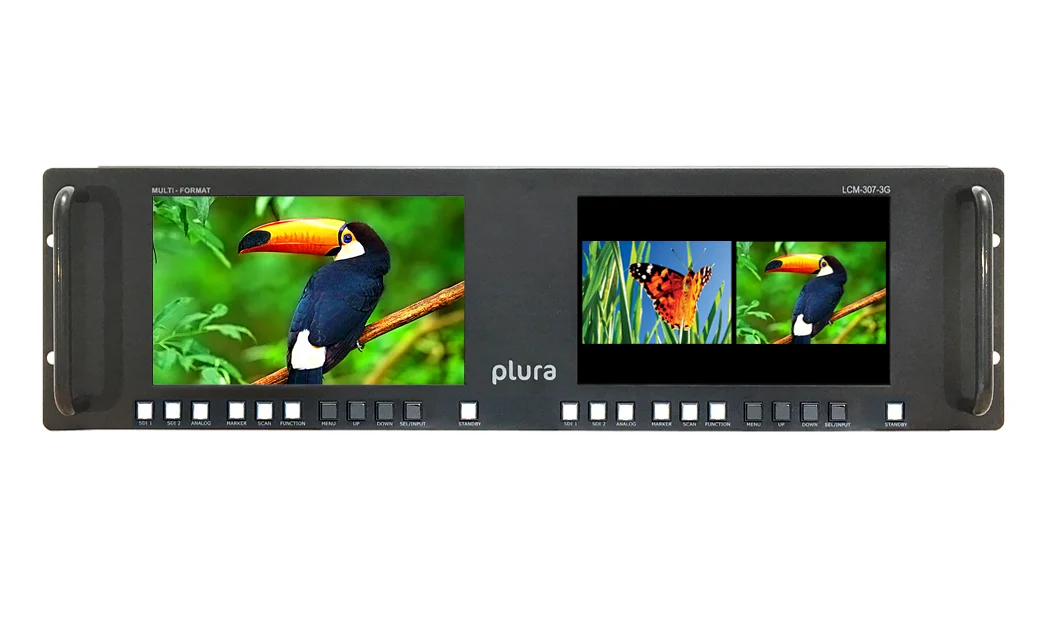

LCM-307-3G-front-1042x621LCM-307-3G-front-1042x621
  • LCM-307-3G

    Dual 7″ or 4 x 4″ monitor consists of high quality HD LCD monitors, specifically designed for use in Broadcast environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards.

    The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast and medical standards.

    Product Documents

    Datasheet

    • LCM-3G Datasheet

    Manuals

    • LCM-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • LCM-3G Mechanical Drawings

    Firmware

    • LCM-307-3G Firmware

    Additional Resources

    • Monitoring Accesories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • LCM-307, 2 x 7” or 4 x 4″ True 8 bit LED Panel
    • 3Gb/s ready – 1080/60P

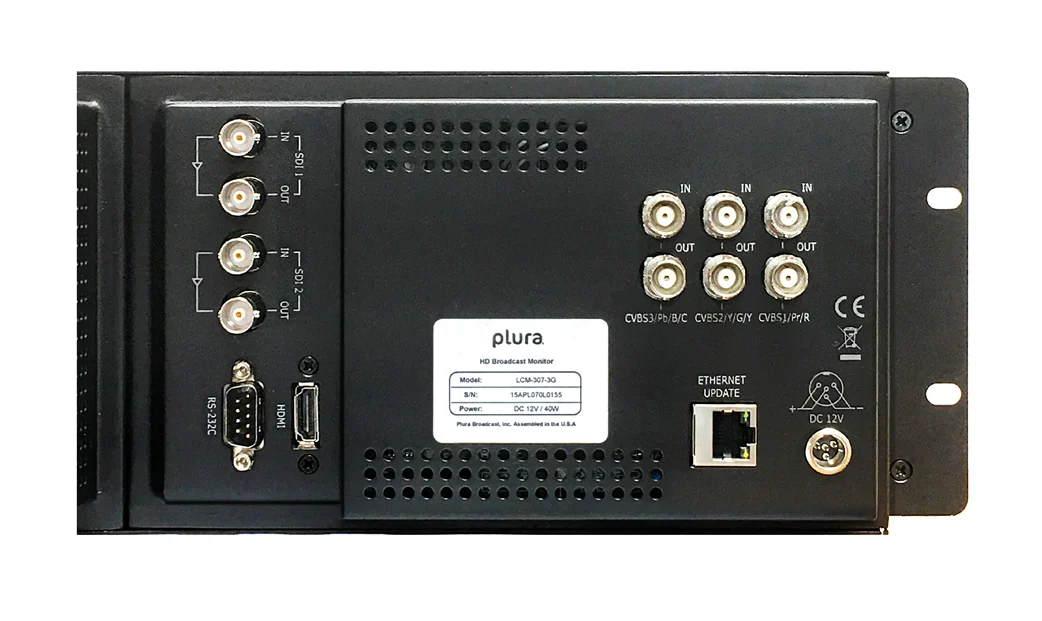

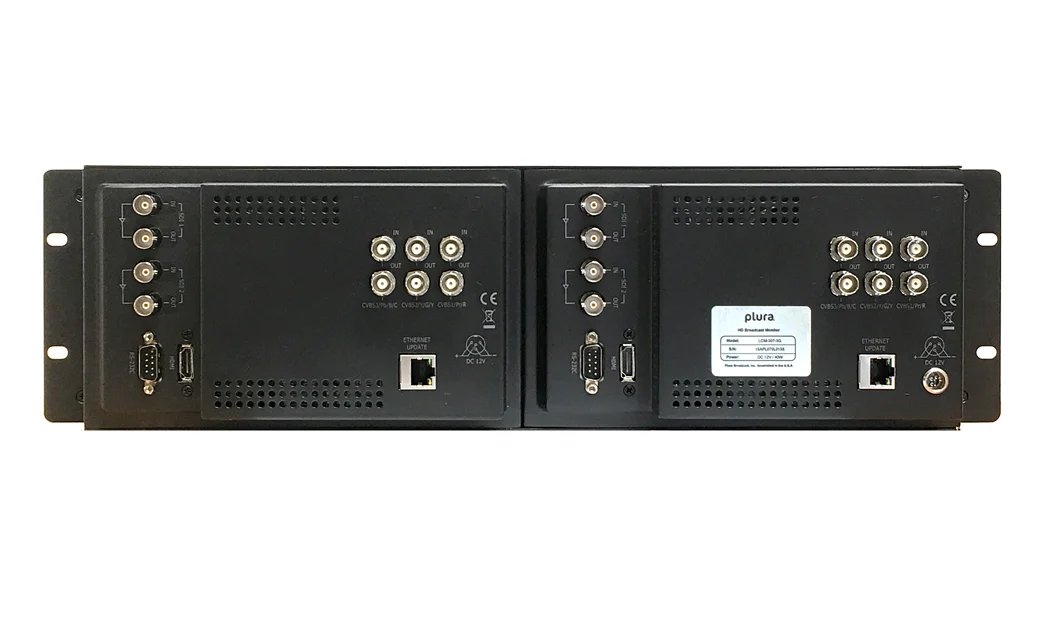

    • 2 x Auto-detect with active loops (3Gb/s ~ 1.485Gb/s ~ 270Mb/s)
    • RGB, YUV, Y/C, Composite, UXGA, DVI & HDMI (HDCP)
    • Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 standards
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • Cutting edge De-interlacing and Scaling Technology
    • Fast Response Time for high Motion Video
    • 12 Bit Color Processing
    • 178 Viewing Angle Display
    • Color Temperature – User adjustable (11000K TO 3200K)
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) Display / Blend
    • Third-party Tally systems support
    • Underscan / Overscan / Normal / Zoom
    • Internal Test pattern Mode
    • Ethernet & Serial Wall Remote Control
    • Optional Ember+ compliant control system capabilities

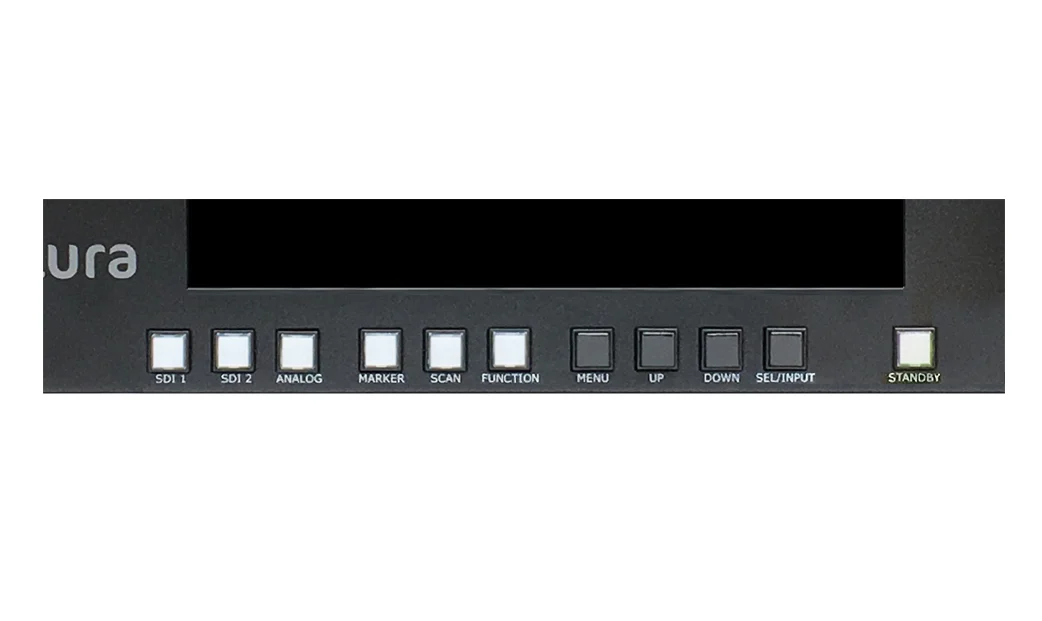

    • Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)

    Additional information

    Weight 5.5 lbs / 2.5 kg
    Dimensions 18.75 × 5 × 2 in / 476.3 × 127.0 × 50.8 mm
    Screen Size

    4 x 4", 2 x 7", 7"

    Style

    Desktop

    Screen Resolution

    1024×600

    Backlight

    LED

    Color Depth

    8bit

    Control

    Optional Ember+, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    Video

    3G, CCVS, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Housing

    19" Rack

    RU

    3
