Home  //  Timing  //  Rubidium  //  Housing & Power Supplies  //  RUB D1
  • RUB D1

    The RUB D1, 1 RU  19” frame with a capacity of up to two modules in addition to the power supply and 8 digits display which are standard.

    The RUB D1 is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity.



    Product Documents

    Datasheet

    • RUB D1 Datasheet

    Manuals

    • RUB D1 Manual
    • RUB Series Manual

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • RUB D1 is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity.
    • The RUB D1 is 1 RU  19” frame which can accommodate up to two modules.
    • The RUB D1 includes power supply and 8 digits display.
    • Hot Swappable with rear loading modules.
    • I/P & O/P connectors are a standard and part of the module.

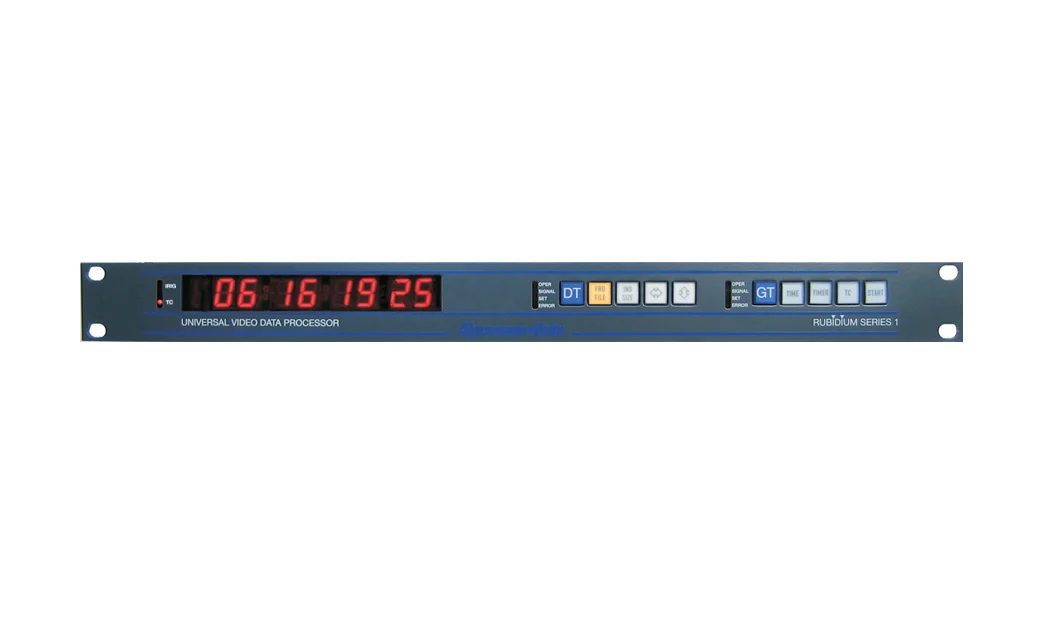

    • Uniform front design which offers four status LED’s and cut-outs for 4 keys and an identification button for each module.
    • RUB D1 Frame comes standard with temperature monitoring module.
    • The controller status is available over TC_link and the failure relay.
    • RUB D1 frame can be interconnected (via standard RLC connector) to facilitate data exchange between modules, affordable system expansion and upgrade-ability requirements.
    • Fail or error signals will be triggered by the failure relay contact at the RLC connection. Contact closure indicates a breakdown or programmed failure occurrence.
    • RUB D1 housing and each connected module equipped with their own relay.  These relays are connected in parallel.
    • Each slot has its own ID address.
    • Modules can individually be configured (e.g. the time code and video modules, except the power supply modules), can be located by their addresses.

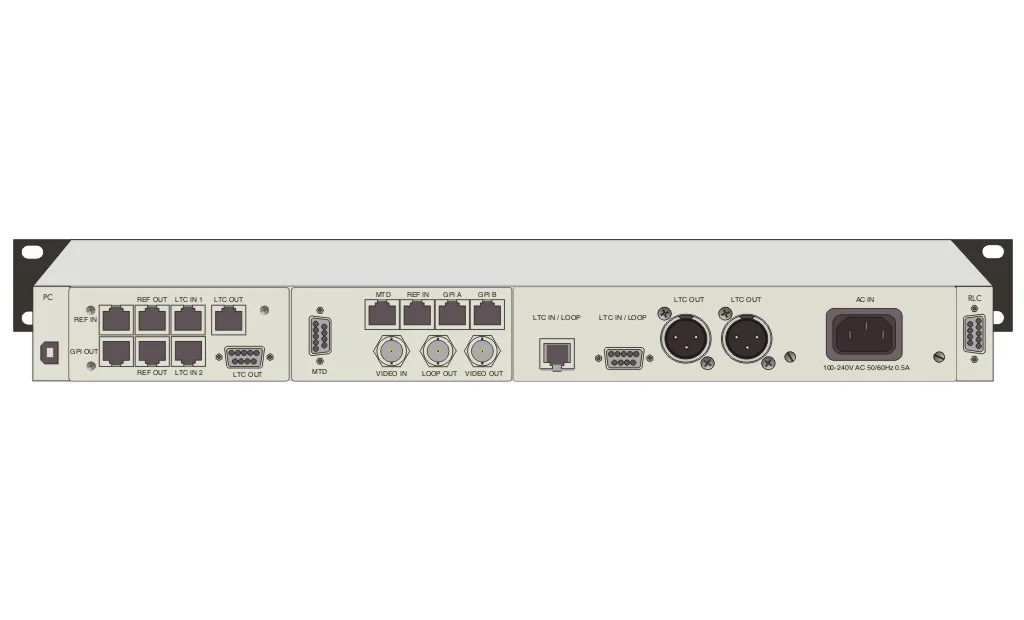

    • RUB D1 has a USB connector at the rear of the frame to provide local configuration capability using Plura configuration software.
    • Each connected module can be configured individually.

    Additional information

    Weight 4.4 lbs / 2.0 kg
    Dimensions 6.94 × 17.57 × 1.75 in / 176.3 × 446.3 × 44.5 mm
    Housing

    19" Rack, Modular

    RU

    1

    Features

    Power 220/110
