Home  //  Timing  //  Rubidium  //  References  //  RUB GNS10
  • RUB GNS10

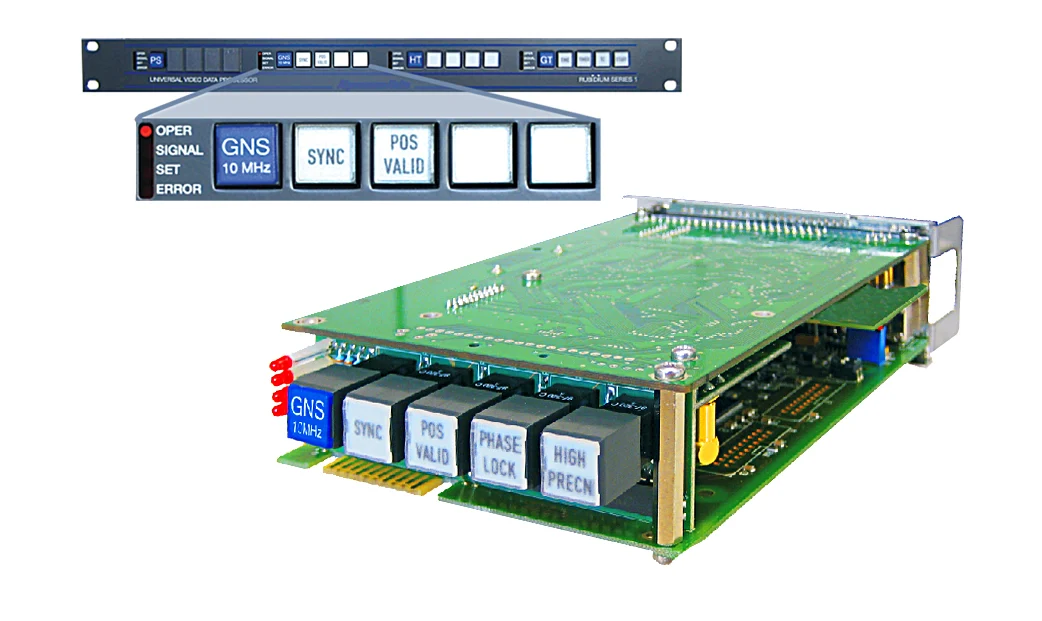

    The RUB GNS 10 MHz module is one of the most reliable and accurate multi-GNSS receiver and master clock systems.

    The RUB GNS10 has built-in receiver and compatible with worldwide GPS systems.

    The RUB GNS10 is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity.



    Product Documents

    Datasheet

    • RUB GNS10 Datasheet

    Manuals

    • RUB GNS10 Manual

    Firmware

    • RUB GNS10 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Multi-GNSS receiver:
      • GPS (US system)
      • GLONASS (Russian system)
      • Galileo (European system)
      • Compass (Chinese system)
      • QZSS (Japanese system)
      • SBAS (WAAS, EGNOS, MSAS)
    • Equipped with a 2nd antenna input and a 2nd receiver as an option.
    • In case of double receiver assembly, automatic changeover is applicable
    • Precision time via high stability OCXO
    • GNSS  frequency outputs:
      • Two 10 MHz true sine wave outputs
      • PPS outputs
      • Square wave outputs: 1/10/100 kHz, 2048 kHz, 1/2/5/10 MHz
    • IRIG-B output
    • Precise holdover mode
    • Trigger inputs/outputs with sub-microsecond resolution
    • Two RS232 communication ports:
      • Time & date data string output
      • Status data output (status monitor program available)
    • Backup power input
    • Alarm output
    • SNMP ready
    • Hot Swappable

    Additional information

    Weight 1.1 lbs / 0.5 kg
    Dimensions 4.1 × 1.7 × 6.5 in / 104.1 × 43.2 × 165.1 mm
    Reference Type

    GPS

    Features

    Generator

    Housing

    Modular

    Product Documents

    Datasheet

    • RUB GNS10 Datasheet

    Manuals

    • RUB GNS10 Manual

    Firmware

    • RUB GNS10 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
