Highlights
- RUB H3 is part of the RUBIDIUM SERIES 3 modular system which offers flexibility, future proof and longevity.

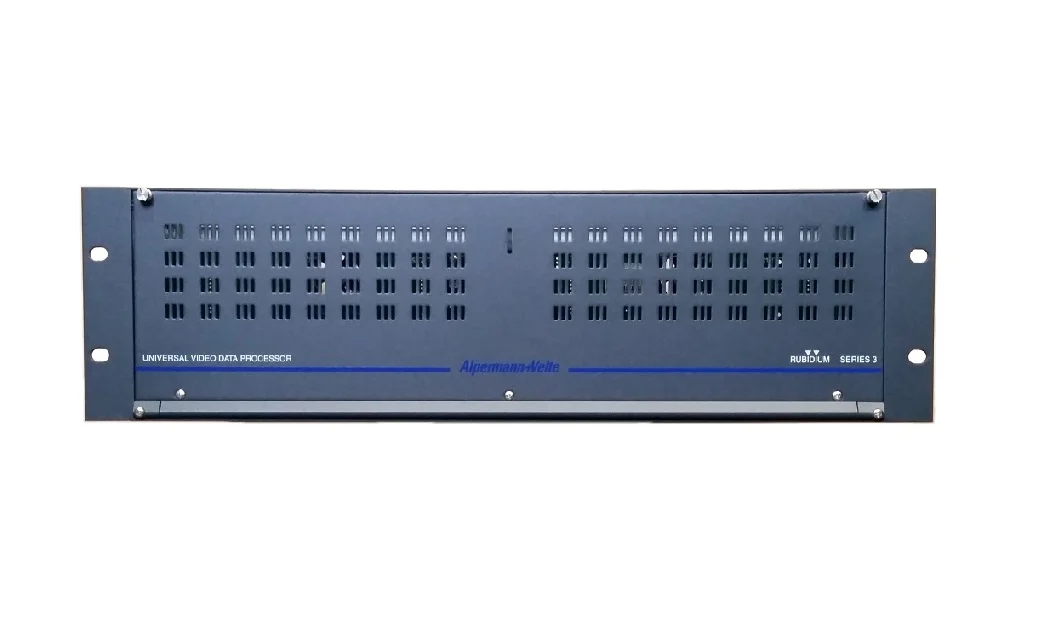

- The RUB H3 is 3 RU 19” frame which can accommodate up to twenty one modules.

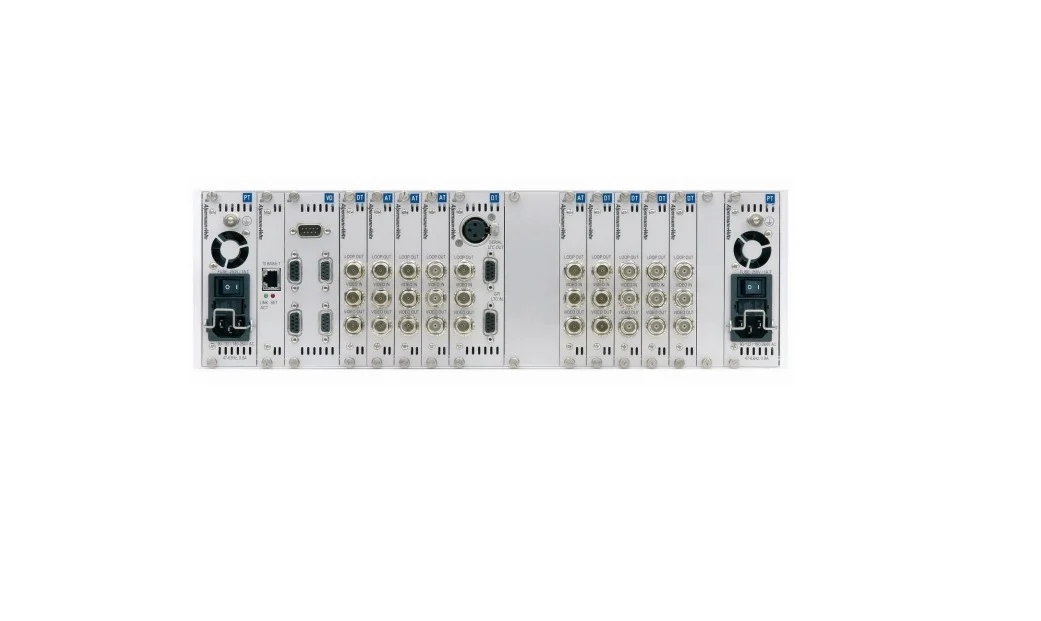

- Hot Swappable with rear loading modules.
- I/P & O/P connectors are a standard and part of the module.
- RUB H3 Frame comes standard with temperature and fan controller module.
- The controller status is available over TC_link and the failure relay.
- RUB H3 frame can be interconnected (via standard RLC connector) to facilitate data exchange between modules, affordable system expansion and upgrade-ability requirements.
- Fail or error signals will be triggered by the failure relay contact at the RLC connection. Contact closure indicates a breakdown or programmed failure occurrence.
- RUB H3 housing and each connected module equipped with their own failure relay. These relays are connected in parallel.
- Each slot has its own ID address.
- Modules can individually be configured (e.g. the time code and video modules), can be located by their addresses.
- RUB H3 has a USB connector at the rear of the frame to provide local configuration capability using Plura configuration software.
- Each connected module can be configured individually.
