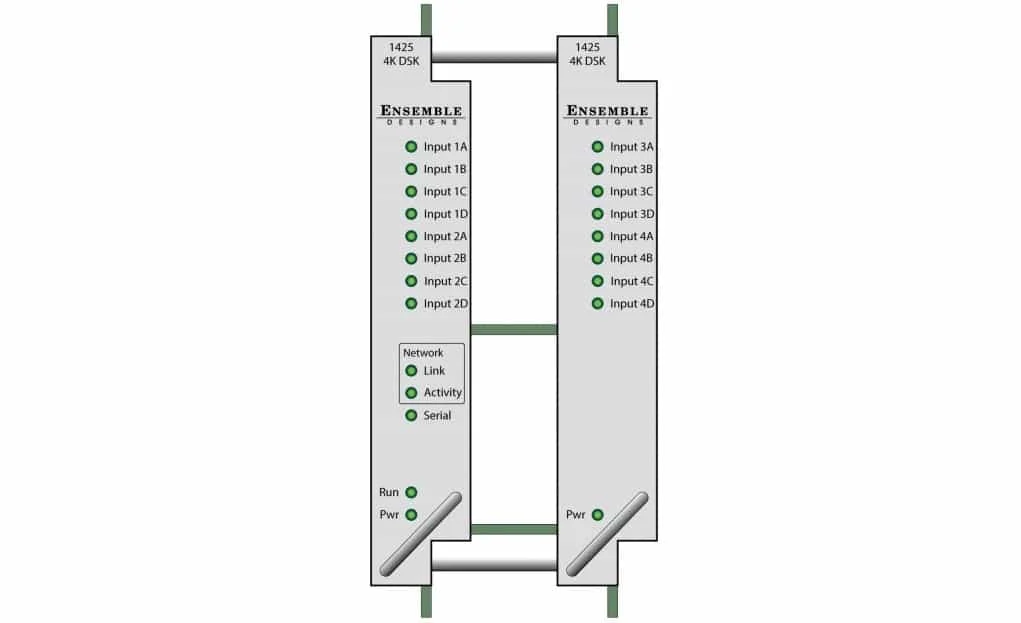

Avenue 1425 4K/UHD Layering Engine

Mix and Cut between 4K/UHD sources, key from external video or the built-in LogoStores. The 1425 makes it easy to work with quad-link signals, with support for both SQ (Square Division) and 2SI (Two Sample Interleave) pixel formatting.

Easy Control from Web, Control Panel or Automation

You have complete control over the configuration and operation of this powerful 4K layering engine with a web interface, operation control panel, TCP/IP and serial control.

Product Documents

Datasheets

Additional Resource

Software

Firmware

Contact Sales

Description

  • Multi-layer keying and background transitions
  • Supports SQ and 2SI quad-link formats
  • Linear, luminance, and additive modes
  • Internal LogoStore
  • Built-in frame syncs on every input
  • Supports 16 channels of embedded audio
  • Channel branding, small master control, centralcasting, fly-pack, remote truck
  • Intuitive iPad interface and serial control
  • Hard surface operator control panel
  • 5-Year Warranty and Free Software Upgrades Forever
Inputs
  • Number: 4 quad-link inputs (option of 6 inputs)
  • Signal Type: 4K 2160p 50 or 59.94 Hz , SMPTE 2036, SQ (Square Division) or 2SI (Two Sample Interleave)
  • Impedance: 75 Ω
  • Return Loss: >15 dB to 1.485 GHz
  • Max Cable Length: 2.97 Gb/s 70 meters Belden 1694A
  • Automatic Input Cable Equalization
Output
  • Number: 1 quad-link output
  • Signal Type: Follows input
  • Impedance: 75 Ω
  • Return Loss: >15 dB to 1.485 GHz
    Output DC: None (AC coupled)
Reference Input
  • Number: One via frame master ref input
  • Signal Type: 1 V P-P Composite Video, PAL or NTSC, Tri-Level Sync, 10 MHz
Standards Supported
  • 4K 2160p 50 or 59.94 Hz, SMPTE 2036, SQ (Square Division) or 2SI (2 Sample Interleave)
General Specifications
  • 1425 occupies 2 slots in an Avenue 3RU frame
  • Power Consumption: 80 watts
  • Temperature Range: 0 to 40° C ambient (all specs met)
  • Relative Humidity: 0 to 95%, non-condensing
  • Altitude: 0 to 10,000 ft.

Product Documents

Datasheets

Additional Resource

Software

Firmware
