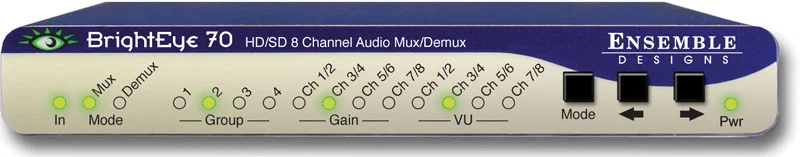

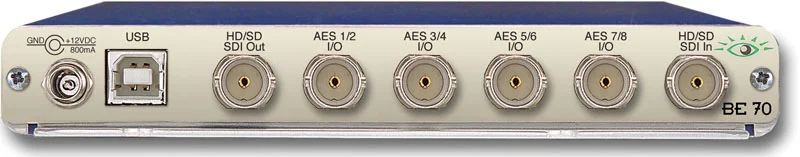

  • BrightEye 70 HD/SD AES Embedder/Disembedder

    The BrightEye 70 is a dual rate eight channel audio embedder or disembedder for 1.5Gb/s high definition video signals or for 270Mb/s standard definition signals. Four AES ports automatically configure as inputs or outputs depending if the module is configured as mux or demux.

    When configured as a multiplexer, the BrightEye 70 has one serial digital video input and four AES audio inputs. These four AES streams are embedded into the video stream. AES inputs are sample rate converted, allowing the use of asynchronous audio. The output of the module is a digital stream that contains the original video signal and four AES pairs.

    When configured as a demultiplexer, audio signals present in the incoming video signal are extracted and delivered as standard AES digital audio streams.

    The BrightEye 70 includes an eight channel audio mixer with channel swap and shuffle capability that allows you to completely rearrange and remix audio channels. It provides precise control over audio level, with up to 12 dB of gain to compensate for low level sources. All audio processing is performed at full 24 bit resolution by a digital signal processor (DSP). Delay is adjustable up to one second. The Data mode operation allows embedding or disembedding of Dolby E or AC3 signals.

    Product Documents

    Datasheet

    • BE70 Data Sheet

    Manual

    • BrightEye 70 Manual
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Use with Servers, Workstations and Satellite Receivers
    • HD/SD Audio Embedder or Disembedder
    • 8 Channel Audio Mixing
    • Adjustable Delay
    • Data Mode for Dolby E and AC3
    BrightEye 70 Specifications
    Serial Digital Input
    • Number: One
    • Type:
      HD Serial Digital 1.485 Gb/s
      SMPTE 274M, 292M or 296M or SD Serial Digital
      270 Mb/s SMPTE 259M-C
    • Impedance: 75 Ω
    • Return Loss: >15 dB
    • Max Cable Length:
      100 meters for HD
      300 meters for SD (Belden 1694A)
    • HD Standards Supported:
      1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
      720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
      1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
      1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
    Serial Digital Output
    • Number: One
    • Type: Follows input
    • Impedance: 75 Ω
    • Return Loss: >15 dB
    • Output: DC None (AC coupled)
    AES/EBU Digital Inputs
    • Number: Four (total of eight channels)
    • Type: AES3id
    • Connector: Coaxial, 75 Ω
    • Bit Depth: 20 and 24 Bit
    • Sample Rate: 30 KHz to 100 KHz (sample rate converted internally to 48 KHz)
    • Crosstalk: <144 dB
    • Dynamic Range: >144 dB
    • Reference Level: -18 or -20 dBFS (selectable) AC-3, Dolby-E Supported when inputs are synchronous
    Embedded Inputs
    • Number:
      Four AES Streams (from video input)
      Eight channels from any two of four groups
    • Channels: Eight
    • Bit Depth: 20 and 24 Bit
    AES/EBU Digital Outputs
    • Number: Four (total of 8 channels)
    • Type: AES3id
    • Connector: Coaxial, 75 Ω
    • Bit Depth: 24 Bit
    • Sample Rate: 48 KHz Synchronous to Video output
    • Reference Level: -18 or -20 dBFS (selectable)
    Embedded Output (In SDI Outputs)
    • Group Assign: Cascade, or Replace any two of four groups
    • Channels: Eight
    • Bit Depth: 24 Bit
    General Specifications
    • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
    • Power: 12 volts, 3 watts (100-230 VAC modular power supply)
    • Power Consumption: 12 volts, 8 watts
    • Temperature Range: 0 to 40° C ambient
    • Relative Humidity: 0 to 95% non-condensing
    • Altitude: 0 to 10,000 ft.

    Product Documents

    Datasheet

    • BE70 Data Sheet

    Manual

    • BrightEye 70 Manual
