Home  //  Signal Processing  //  BrightEye  //  BrightEye 57 3G/HD/SD/Analog Test Signal and Sync Pulse Generator

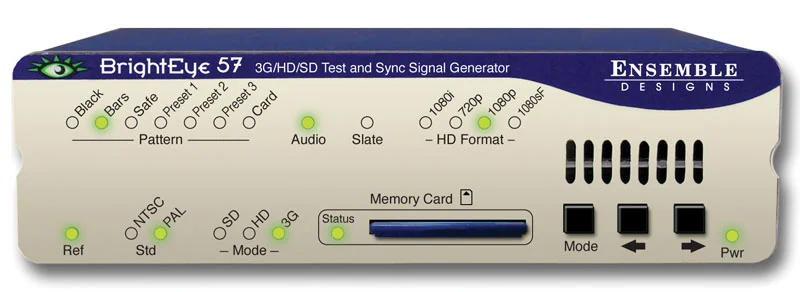

be57_front-800x292be57_front-800x292
be57_front-800x292be57_front-800x292
  • BrightEye 57 3G/HD/SD/Analog Test Signal and Sync Pulse Generator

    BrightEye 57 is a genlockable sync generator and test signal generator that can be used as either a slave or master reference generator. It can lock to house reference or it can lock to its own internal precision standard. BrightEye 57 is well suited for remote trucks, post, helicopters and fly packs.

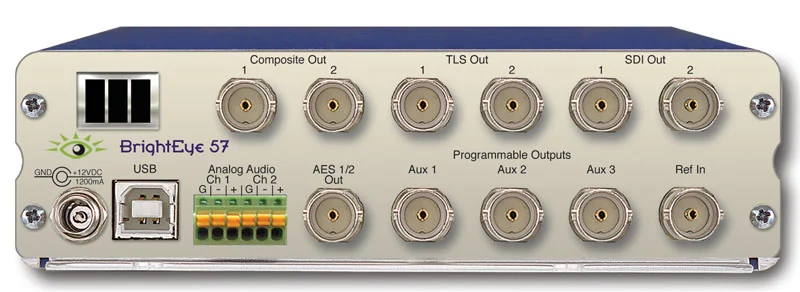

    1.5 Gb/s HD, 3 Gb/s HD or SD SDI test signals or black with embedder is output on the SDI BNCs. Composite, Tri-Level Sync and AES digital audio outputs are also provided. There are three user Programmable Outputs that are selectable between AES, LTC, Word clock or 6 Hz Pulse. Analog audio and AES outputs provide tone or silence.

    Color Black, Bars, Crosshatch, Multi-burst, and SDI Checkfield (Pathogenic) are just some of the signals simultaneously available on the SDI and analog composite outputs. The Cyclops feature adds a motion element to the selected video test signal. An ID slate with user programmable text can overlay the test pattern.

    The internal Time Code Generator feeds DVITC on the SDI outputs and VITC on the composite outputs, Time Code can also be selected in LTC form on the programmable Aux outputs.

    In addition to the standard suite of test patterns, users can create custom test patterns on a computer. Using BrightEye Pattern Generator software, simply transfer test patterns to the included Secure Digital flash memory card and then insert the memory card into the front of the BrightEye 57. Test patterns can include motion. File formats supported: .tga, .wav, .mp3, .wma.

    Many controls can be adjusted through the intuitive front panel. The BrightEye Control app provides a complete user interface for all adjustments and controls.

    For facilities and manufacturers using 3 Gb/s video, BrightEye units can be combined to form a complete 3G signal chain. The BrightEye 57 test signal generator’s 3G output can be distributed through the BrightEye 43 3G distribution amplifier or the BrightEye 46 and BrightEye 48 E/O 3G fiber optical transmitter/receiver set.

    Product Documents

    Datasheet

    • BE57 Data Sheet

    Manuals

    • BrightEye 57 Manual
    • Pattern Generator User Guide

    Software

    • PatternGen - Windows
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Master or Slave Reference Generator for All Video and Audio Gear
    • Composite, HD SDI, SD SDI, Tri-Level Outputs
    • 3 Gb/s HD, Level A Supported
    • 30+ HD and SD Test Signals
    • Create Your Own Test Patterns, Transfer Via Secure Digital Flash Memory
    • Sync Pulse Generator
    • Time Code Generator
    • Analog, AES and Embedded Audio Outputs
    Reference Input
    • Number: One
    • Signal Type: 1V P-P PAL, NTSC, 10 MHz or HD Tri-Level Sync
    • Return Loss: >40 dB DC to 5.5 MHz
    Composite Output
    • Number: Two
    • Signal Type: NTSC / PAL
    • Impedance: 75 Ω
    • Return Loss: >40 dB DC to 5.5 MHz
    • Frequency Response: -0.1 dB 10 KHz to 5.0 MHz
    • Output DC: ±50 mV
    • K Factor: <1.0%
    • Differential Phase: <1.0 degree
    • SCH Phase: ±5 degrees
    Accuracy and Timing Stability
    • Internal: TCXO
    • PAL Fsc: 4.43361875 MHz +/- 1 Hz
    • NTSC Fsc: 3.579545 MHz +/- 1 Hz
    • 601 Fs: 27.000000 MHz +/- 5 Hz
    • Long Term Drift: <1 ppm/year
    • Analog Jitter: <1 ns
    • Digital Jitter: <0.2 UI (0.13 UI typical)
    Serial Digital Output
    • Number: Two
    • Signal Type:
      270 Mb/s SD Serial Digital (SMPTE 259M)
      1.485 Gb/s HD Serial Digital (SMPTE 274M, 292M or 296M)
      2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M)
    • Return Loss:
      >15 dB to 1.485 GHz
      >10 dB to 2.97 GHz
    • Max Cable Length:
      300 meters for 270 Mb/s
      100 meters for 1.485 Gb/s
      70 meters for 2.97 Gb/s (Belden 1694A)
    Tri-Level Sync Output
    • Number: Two, 75 Ω
    • Output DC: ±50 mV
    • Return Loss: >30 dB to 30 MHz
    • Standards Supported:
      1080i (SMPTE 274M -4, 5, 6) 50, 59.94 or 60 Hz
      720p (SMPTE 296M -1, 2, 3) 50, 59.94 or 60 Hz
      1080p (SMPTE 274M -9, 10, 11) 23.98, 24, 25 Hz
      1080sF (RP211 -14, 15, 16) 23.98, 24, 25 Hz
      1080P (SMPTE 424M, 425M) 50, 59.94, 60, Level A
      625i 50, 525i 59.94, Composite PAL, NTSC
    AES Audio Output
    • Number: One
    • Type: AES3id, 1 KHz tone or silence
    • Resolution: 24 bit
    Analog Audio Output
    • Number: One stereo pair or two mono
    • Type: 1 KHz tone or silence
    • Impedance: 30 Ω, balanced
    • Reference Level: -10 to + 4 dBu, adjustable
    Programmable Outputs
    • Number: Three
    • Type: Selectable between AES, LTC, VITC, Word clock or 6 Hz Pulse
    • Impedance: 75 Ω
    Flash Memory
    • Number: One
    • Type: Secure Digital SD Flash Memory Card
    • Size: 2 GB card included
    General Specifications
    • Size: 5.625” W x 1.7” H x 5.5” D (143 mm x 40 mm x 140 mm) including connectors
    • Power: 12 volts, 12 watts (100-230 VAC modular power supply)
    • Temperature Range: 0 to 40° C ambient
    • Relative Humidity: 0 to 95%, non-condensing

    Product Documents

    Datasheet

    • BE57 Data Sheet

    Manuals

    • BrightEye 57 Manual
    • Pattern Generator User Guide

    Software

    • PatternGen - Windows
