Home  //  Timing  //  MTD Timer  //  UD25

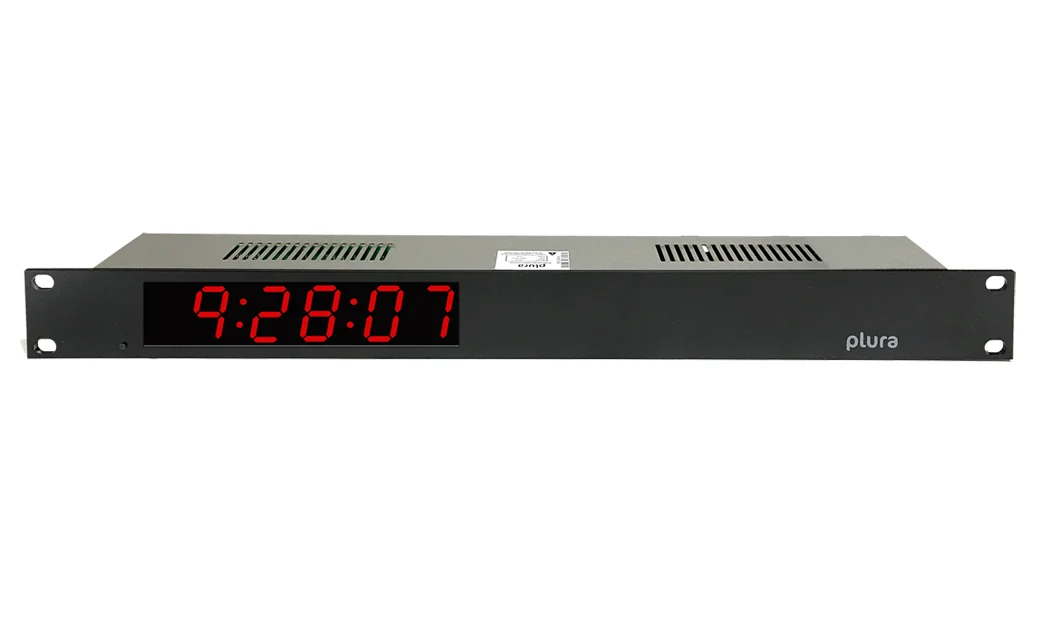

UD25-front-1042x621UD25-front-1042x621
  • UD25

    UD25 displays are designed and engineered to perfection.

    UD25 displays built with 6 digits, 25 mm digit height, 19”,1RU housing.

    All displays have built-in quartz clock which enables continuous operation even if a drop out of signal take place.

    Product Documents

    Datasheet

    • UD25 Datasheet

    Manuals

    • UD25 Manual

    Firmware

    • UD25 / UDD25 Firmware

    Software Tools

    • UD/SC Configuration PC Program (for SPT, TCU, ELC and UD)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • 6 digits, 25 mm digit height, 19”,1RU housing.
    • Multi-Display color Red, Green or Yellow.
    • Eight user select-able brightness levels or can be set to set to auto mode.
    • Reads LTC, MTD, RS485, RS422, RS232, GPI.
    • Reads NTP and MTD.
    • Reads IRIG-B.
    • Serial GPS receiver input.
    • PoE (Power over Ethernet is supported).

    Additional information

    Weight 1.3 lbs / 0.6 kg
    Dimensions 1.764 × 1.73 × 1.61 in / 44.8 × 43.9 × 40.9 mm
    Features

    NTP Client, Display, PoE, Reader, Timer

    Housing

    19" Rack, Stand Alone System

    RU

    1

    Reference Type

    MTD, GPS, IRIG-B, LTC, NTP
