Home  //  Monitors  //  SFP-25G-H  //  SFP-210-25G-H
4K IP 2110 Broadcast Monitor with FHD 1920 x 1080 Panel4K IP 2110 Broadcast Monitor with FHD 1920 x 1080 Panel
  • 4K IP 2110 Broadcast Monitor with FHD 1920 x 1080 Panel
  • SFP-210-25G-H

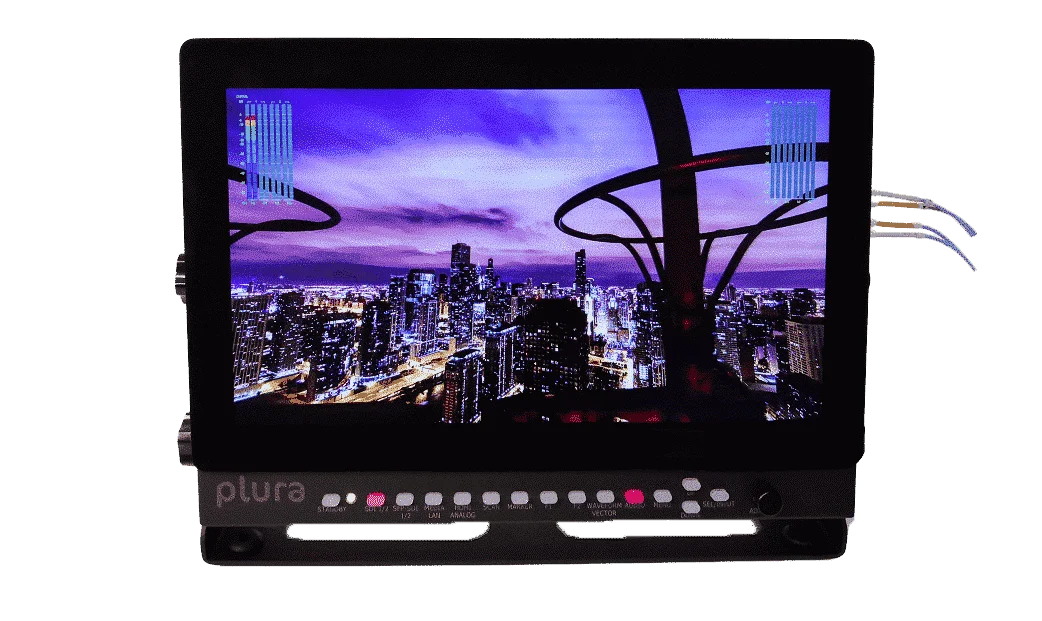

    SFP-210-25G-H, 10″ monitor from PLURA is the industry’s first TRUE-IP 25GbE portable broadcast & media monitor solution, supporting uncompressed UHD based on SMPTE ST 2110, ST 2022-6Ŧ & ST 2022-7 and supports up to 4096 x 2160 resolutions.

    The flexibility and robustness of the SFP-25G-H platform is the ultimate solution for wide range of broadcast and professional media SDI to IP transition projects. The SFP-25G-H platform is a powerful hybrid solution supporting SFP+ / SFP28 10G / 25G (ST 2110, ST 2022-6 Ŧ,ST 2022-7), 12G, 3G & 1.5G & HDMI 1.4 connectivity.

    The SFP-25G-H provides comprehensive interoperability capabilities with major and wide range of prominent third-party IP-UHD-FHD ready media solutions, providing our customers the ease of mind and adaptability to utilize Plura IP solutions with a variety of technology suppliers for a seamless end-to-end production workflow.

    The SFP-25G-H series features 2x 10/25 GbE SFP+/SFP28 complying with SMPTE ST 2022-7, seamless protection switching providing data loss and redundancy protection for critical distribution and monitoring applications “hitless switching”. SFP-25G series offers HDR Display capabilities supporting PQ (ST-2084) & HLG standards and is available in multiple sizes starting from 9″ all the way to 47″.

    Product Documents

    Datasheet

    • SFP-25G-H Datasheet
    • SFP-25G-H Production Workflow

    Manuals

    • SFP-25G UI Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • SFP-25G-H Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • Plura 2110 Interoperability Specifications
    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • SFP-210-25G-H, ST 2110 10 Inch 4K IP Monitor
    • Supports up to 4096 x 2160 4K resolutions

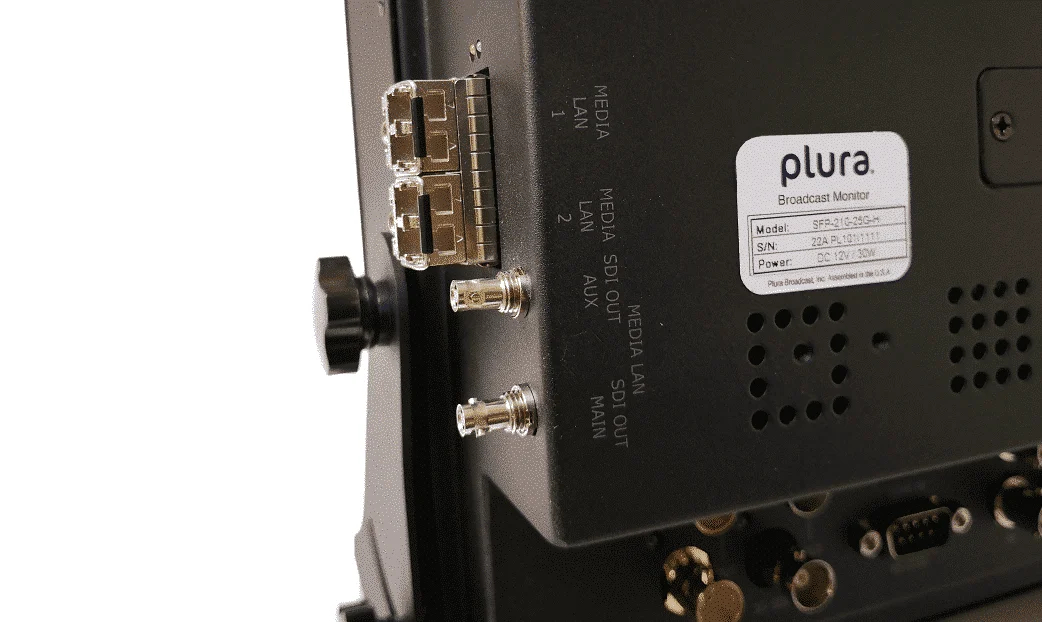

    • Dual 10/25 GbE SFP+/SFP28 interfaces as MEDIALAN1 and MEDIALAN2
    • Two generic compatible 25G-SR SFP28 850nm digital optical monitoring LC MMF optical transceiver modules included
    • Dual 25GbE De-Encapsulation channels are fully compatible with many MM and SM SFP modules manufactures
    • 1 x 12G/3G/1.5G loop output for MEDIALAN1 main ST 2110 support
    • 1 x 12G/3G/1.5G Aux/2nd channel ST 2110 support
    • Supports ST 2110, ST 2022-6Ŧ, ST 2022-7 & PTP/ST 2059 V2
    • ST 2110-10, System architecture and synchronization: essences, RTP, SIP and PTP
    • ST 2110-20, Uncompressed video transport, Wide / Narrow types
    • ST 2110-21, Traffic shaping and network delivery timing
    • ST 2110-30, Audio transport profile level C, 16CH, 48Khz sample rate, 11ms/.125μs
    • ST 2110-40, Transport of ancillary data
    • ST 2022-7 seamless protection switching providing data loss protection
    • SMPTE ST 2022-6Ŧ supported with optional license
    • Ember+, NMOS, JT-NM Interoperability support
    • Management Interface support (NMOS, In-band)
    • Web UI / Ember+ Out-band control support
    • NMOS IS-04 discovery and registration
    • NMOS IS-05 device connection management
    • JTNM NMOS certification support
    • JSON snippet for NMOS control support
    • Ember+ monitor control support with extensive Ember+ tree control
    • Session Description Path “SDP” file support
    • IGMP V2 & V3 support
    • Plura web user interface “UI” support
    • Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • 1 x SFP+ cages supporting 3G/1.5G SDI
    • 1 x 12G/3G/1.5G input port
    • 1 x 3G/1.5G input port
    • 1 x 12G/3G/1.5G output port
    • 1 x 3G/1.5G output port
    • 1 x HDMI 1.4 HDCP 1.2 input port
    • ST 2110 4K IP Monitor with FHD 1920 x 1080 Panel
    • 8 bit panel color depth
    • HDR (High Dynamic Range) capabilities
    • PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
    • RGB 12 bit Digital Signal Processing
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 – 3.0)
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • ColourSpace PRO integration for advanced and accurate display profiling and calibration functionalitiesŦ
    • 3D LUT (ITU-R BT 2020, Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema)
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Various and User defined Markers Display & Safe Area
    • Programmable 6 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) – North American Market
    • Cutting edge De-interlacing and scaling Technology
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control
    • Ember+ compliant control system capabilities
    • Underscan / Overscan / Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System
    • More Plura Products information click here
    Ŧ Optional license

    Additional information

    Weight 5 lbs / 2.3 kg
    Dimensions 10.102 × 7.285 × 4.095 in / 256.6 × 185.0 × 104.0 mm
    Screen Size

    10"

    Style

    Desktop, Rackmount

    Screen Resolution

    1920×1080

    Backlight

    LED

    Color Depth

    8bit

    Advanced Features

    Closed Caption 708/608, Ember+, IP2110-2022/7, NMOS / JT-NM, Teletext 801 & OP-47, Vectorscope / Waveform, 4K/UHD, HDR, SFP Modules Compatibility

    Control

    Ember+, NMOS, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    H/W Decoding

    ST-2022-7, ST-2110

    Video

    12G, 3G, DVI, HD-DL, HDMI, HDSDI

    Audio

    Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    NMOS / JT-NM

    Yes

    Ember+ Complaint

    Yes

    Housing

    Optional 19" Rack

    RU

    5
