Description
-

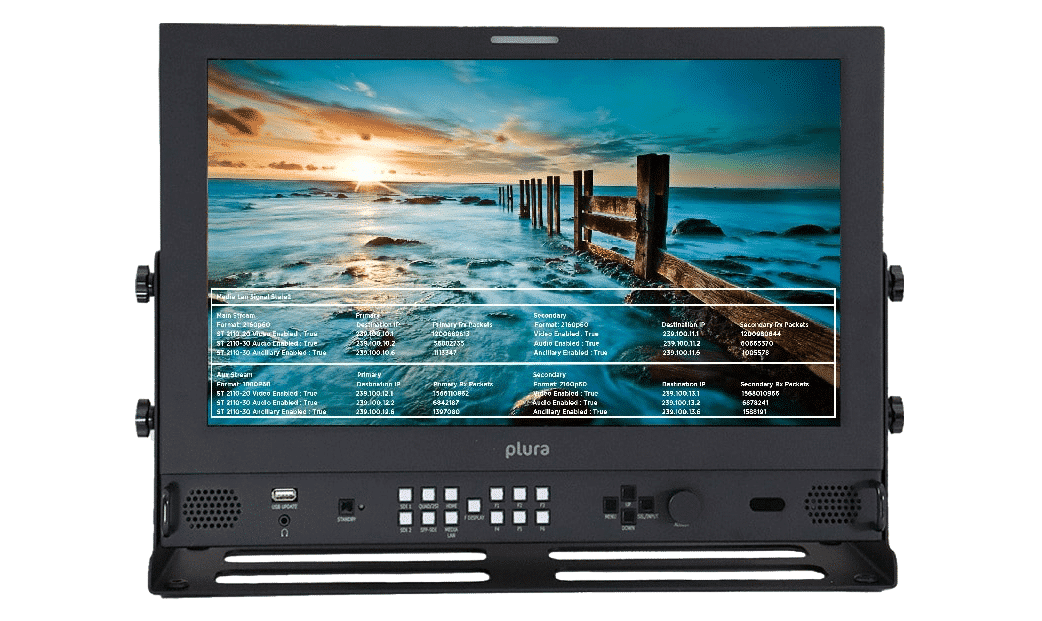

- SFP-217-10G, ST 2110 17 Inch 10GbE IP Monitor
- Supports up to 4096 x 2160 4K SDI resolutions
- Dual 10 GbE SFP+ interfaces as MEDIALAN1 and MEDIALAN2
- Two generic compatible 10G-SR SFP+ 850nm digital optical monitoring LC MMF optical transceiver modules included
- Dual 10GbE De-Encapsulation channels are fully compatible with many MM and SM SFP modules manufactures
- 1 x 3G/1.5G loop output for MEDIALAN1 main ST 2110 support
- 1 x 3G/1.5G Aux/2nd channel ST 2110 support
- Supports ST 2110, ST 2022-6Ŧ, ST 2022-7 & PTP/ST 2059 V2
- ST 2110-10, System architecture and synchronization: essences, RTP, SIP and PTP
- ST 2110-20, Uncompressed video transport, Wide / Narrow types
- ST 2110-21, Traffic shaping and network delivery timing
- ST 2110-30, Audio transport profile level C, 16CH, 48Khz sample rate, 11ms/.125μs
- ST 2110-40, Transport of ancillary data
- ST 2022-7 seamless protection switching providing data loss protection
- SMPTE ST 2022-6Ŧ supported with optional license
- Ember+, NMOS, JT-NM Interoperability support
- Management Interface support (NMOS, In-band)
- Web UI / Ember+ Out-band control support
- NMOS IS-04 discovery and registration
- NMOS IS-05 device connection management
- JTNM NMOS certification support
- JSON snippet for NMOS control support
- Ember+ monitor control support with extensive Ember+ tree control
- Session Description Path “SDP” file support
- IGMP V2 & V3 support
- Plura web user interface “UI” support
- Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
- Supports Coaxial SFP I/O connectivity
- 1 x SFP+ cages supporting 3G/1.5G SDI
- 1 x 12G/3G/1.5G SDI input port
- 1 x 3G/1.5G SDI input port
- 1 x 12G/3G/1.5G SDI output port
- 1 x 3G/1.5G SDI output port
- 1 x HDMI 1.4 HDCP 1.2 input port
- 17″ 10GbE 2110 Monitor with FHD 1920 x 1080 Panel
- 8 bit panel color depth
- HDR (High Dynamic Range) capabilities
- PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
- RGB 12 bit Digital Signal Processing
- 178 degree Viewing Angle Display
- Gamma Selectable ( 0.8 – 3.0)
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- ColourSpace PRO integration for advanced and accurate display profiling and calibration functionalitiesŦ
- 3D LUT (ITU-R BT 2020, Native, BT.709, D-Cinema)
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Various and User defined Markers Display & Safe Area
- Programmable 6 User Front Pushbutton Controls & GPI
- Closed Caption (608/708) – North American Market
- Cutting edge De-interlacing and scaling Technology
- Fast Response Time for high motion video
- Internal Monitor Display (IMD)
- Ethernet & RS232 Remote Control
- Ember+ compliant control system capabilities
- Pixel to Pixel Mode, Zero Scan, Tally, DC operation
- False Color, Peaking Filter, Focus Assist
- Video Range test with adjustable Y & C values
- Display LTC & DIVTC time code with line select
- Embedded Audio input, Digital Audio Decoding
- Internal Pattern Generator and Wall Control System
- More Plura Products information click here
Ŧ Optional license
