Description

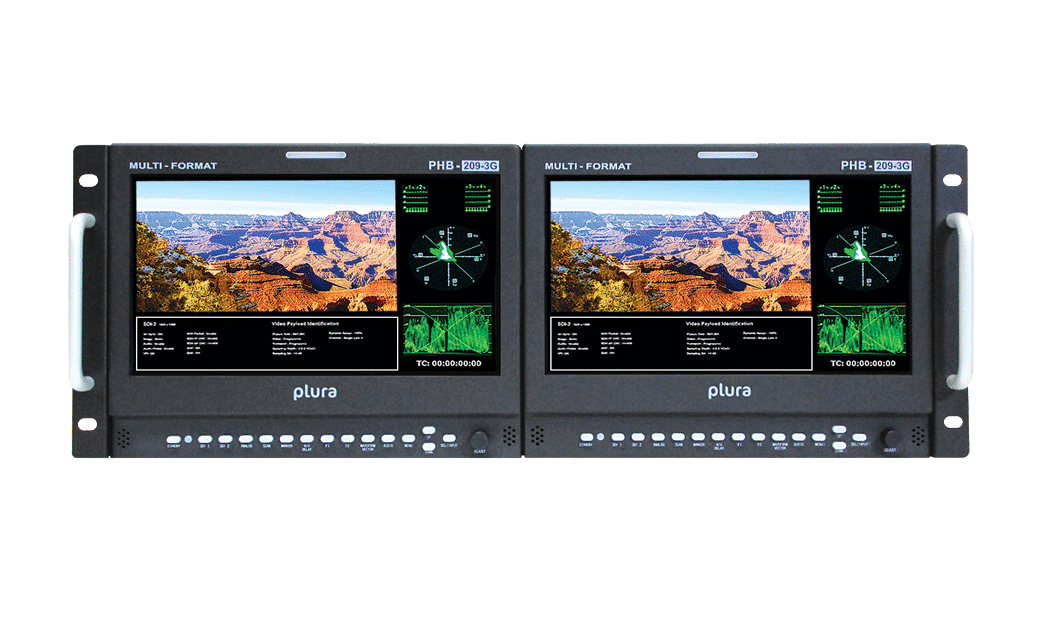

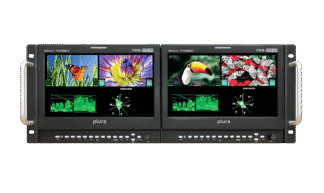

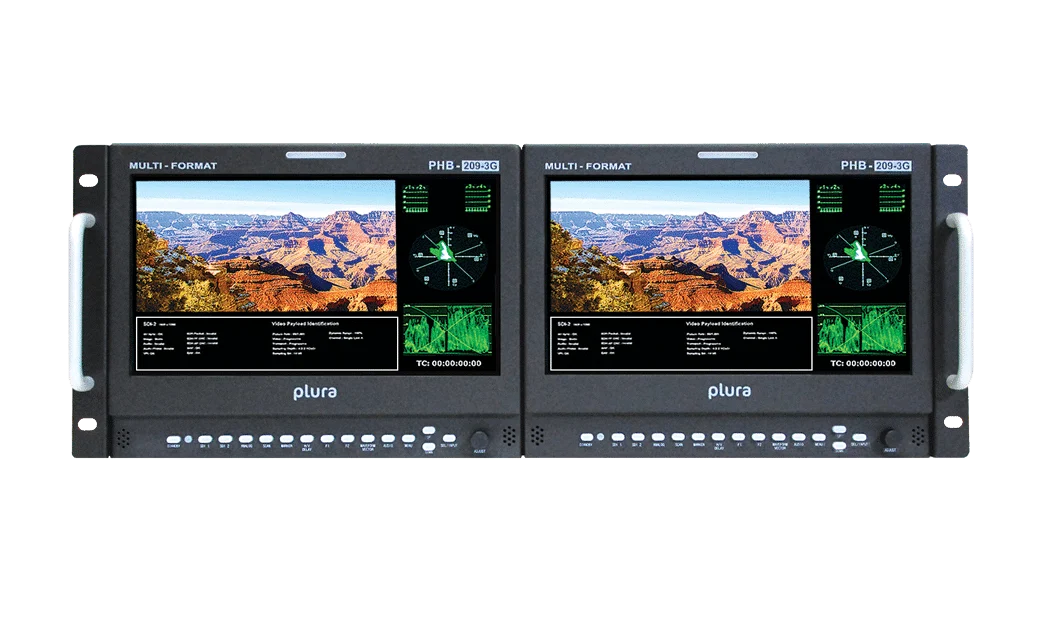

- PHB-209DRK-3G, Dual 9” High Brightness Rack-mountable Solution
- 3Gb/s ready – 1080/60P

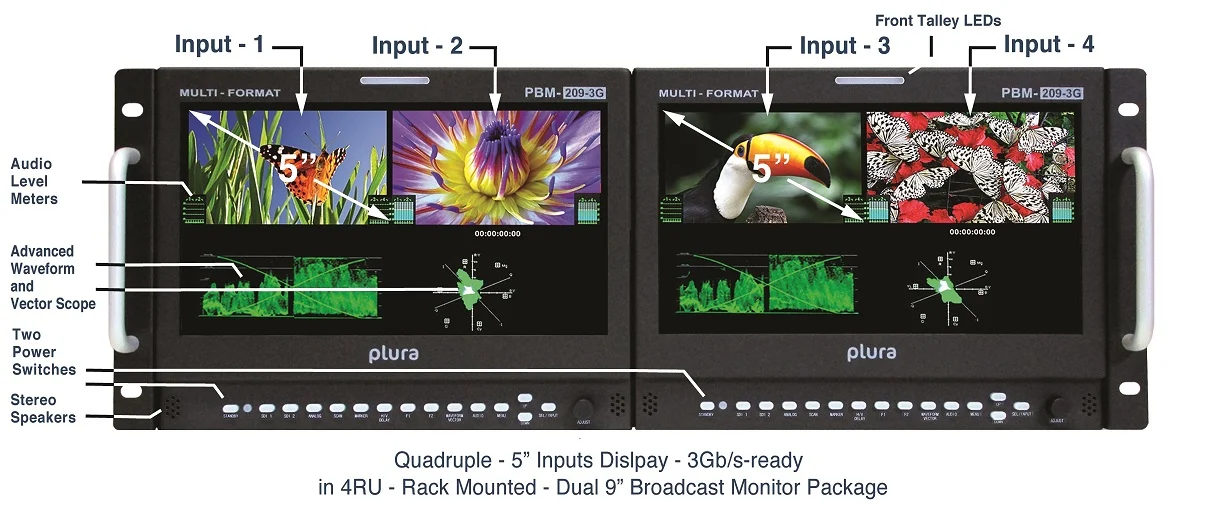

- Display 2, 3 or 4 images
- 4 x speakers
- 4 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
- Waveform & Vector display & Line select
- VPID Display (Video Payload Identification)

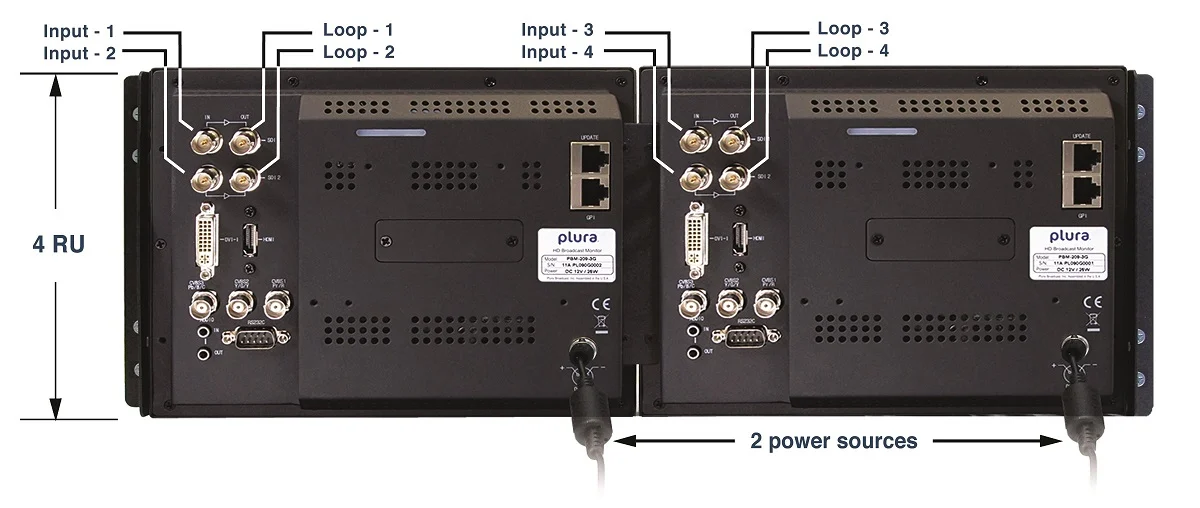

- 2 separate power sources i.e redundancy if one unit is down you still have other videos running
- Other inputs include:
- 2 x (RGB/YUV), 2 x Y/C, 6 x Composite, 2 x (UXGA, DVI(DHCP)) & 2 x HDMI(DHCP)
- Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- Closed Caption (608/708) – North American Market
Teletext 801 & Subtitle OP-47 – Australia & NZ Market - Cutting edge De-interlacing and Scaling Technology
- Fast Response Time for high motion video
- RGB 10 Bit Digital Signal Processing
- 178° Viewing Angle Display
- Internal Monitor Display (IMD)
- Underscan/ Overscan/ Normal / Zoom
- Pixel to Pixel Mode, Tally, DC Operation
- False Color and Peaking Filter / Focus Assist
- Video Range Test with adjustable Y & C values
- Display LTC & DVITC time code with line select
- Internal Pattern Generator and Wall Control System
- Built In Stereo Speaker , 16 CH Audio Metering Display
- Analog & Embedded Audio Input, Digital Audio Decoding
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
- OPTIONS: Battery Mount
