Home  //  Timing  //  PCIe PC Cards  //  PCIe L

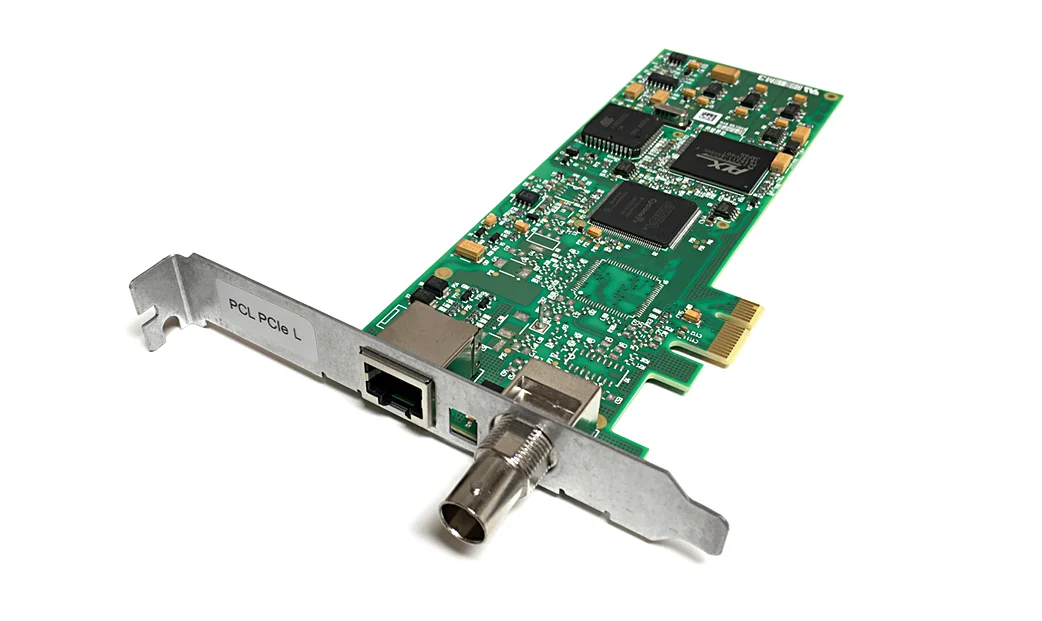

PCIe L-front-angle-1042x621PCIe L-front-angle-1042x621
PCIe L-front-angle-1042x621PCIe L-front-angle-1042x621
  • PCIe L

    PCIe L is a PCI Express reader card for LTC.

    PLURA’s most reliable and affordable PCIe cards are being used by variety of customers in many critical and important computer hardware and software development applications.



    Product Documents

    Datasheet

    • PCIe L Datasheet

    Manuals

    • PCIe L Manual

    Firmware

    • PCIe L Firmware
    • PCIe L Release Notes

    Software Tools

    • Windows driver for PCI and PCIe
    • PCI SDK and Linux Driver
    • PCL Flash

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • PCIe L is a PCI Express reader card for LTC.
    • Each card has its own processor system with a register set for data transfer.
    • Critical time routines are completely decoupled from the PC’s CPU, which enables extensive error checking.
    • An automatic frame rate detection (24, 25, 30, 30 DF) is supported.
    • Parallel operation of two or more PCIe-Cards is supported.
    • Windows 7-11/Server, 32/64 bit and Linux Drivers are available.
    • DLL functions for reading timecode and configuration are available.
    • C/C++, Visual Basic and Delphi are supported.
    • Standard and Low-Profile brackets are included.

    Typical applications for the PCIe L card:

    1.  Subtitling
    2. Computer controlled editing
    3. Interactive video
    4. Technical scientific analysis
    5. Other applications that are based on picture accurate video processing

    Additional information

    Weight .17 lbs / 0.1 kg
    Dimensions 7.5 × 3.14 × 0.86 in / 190.5 × 79.8 × 21.8 mm
    Features

    Reader

    Reference Type

    LTC
