Home  //  Timing  //  PCIe PC Cards  //  PCIe LV
  • PCIe LV

    PLURA’s most reliable and affordable PCIe cards are being used by variety of customers in many critical and important computer hardware and software development applications.

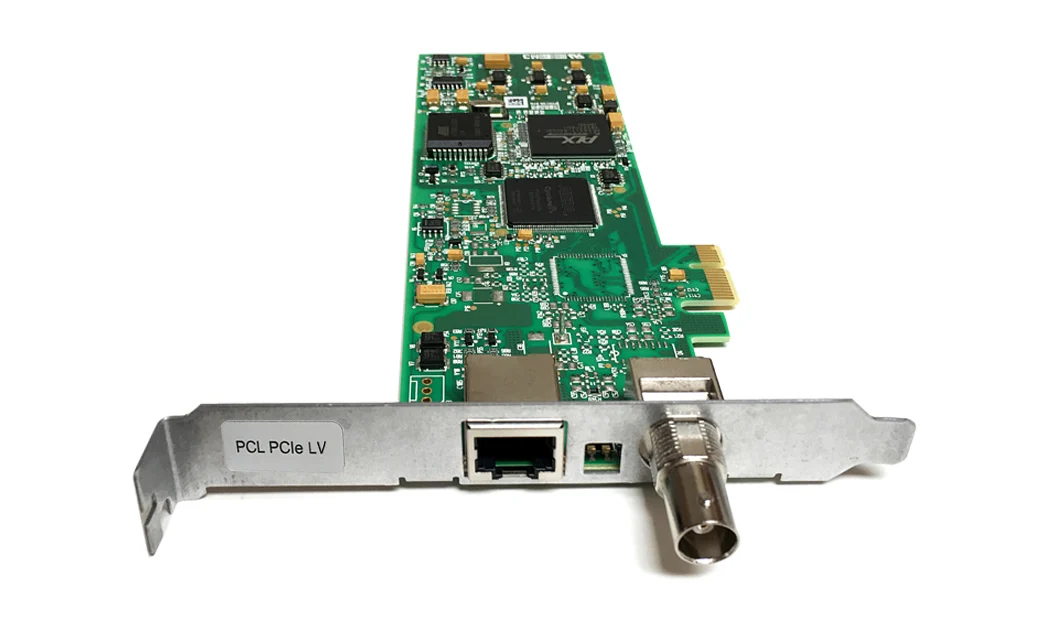

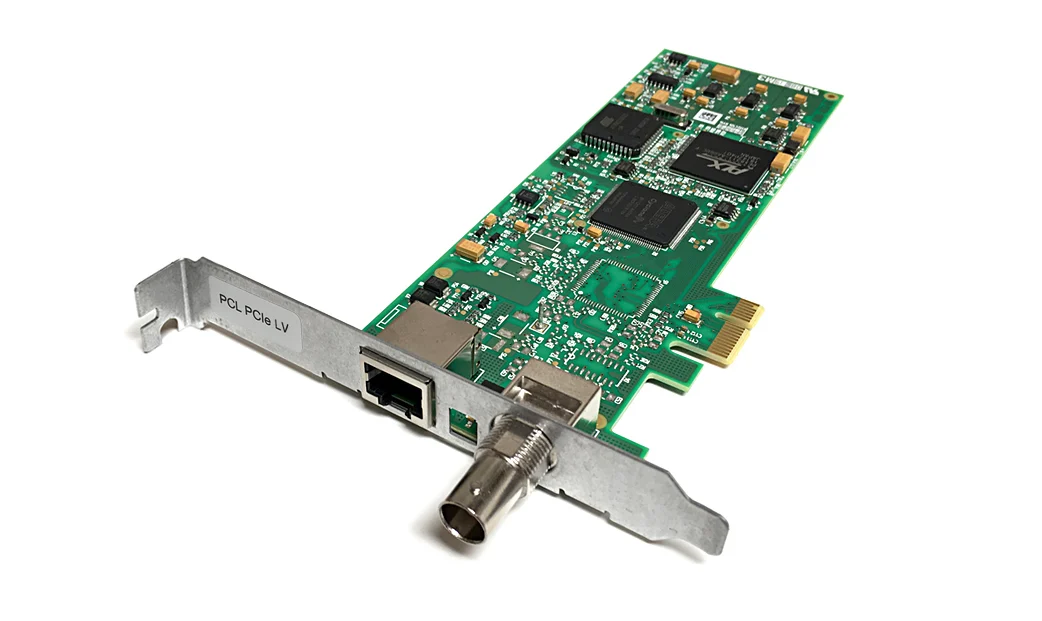

    PCIe LV is a PCI express reader for LTC & VITC, analog video

    Product Documents

    Datasheet

    • PCIe LV Datasheet

    Manuals

    • PCIe LV Manual

    Firmware

    • PCIe LV Firmware

    Software Tools

    • Driver for PCI and PCIe
    • PCI SDK and Linux Driver
    • PCL Flash

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • PCIe LV is a PCI express reader for LTC & VITC, analog video.
    • Each card has its own processor system with a register set for data transfer.
    • Critical time routines are completely decoupled from the PC’s CPU, which enables extensive error checking.
    • An automatic frame rate detection (24, 25, 30, 30 DF) is supported.
    • Parallel operation of two or more PCIe-Cards is supported.
    • Windows 10/8/7/Server 32-64 bit and Linux Drivers are available.
    • DLL functions for reading timecode and configuration are available.
    • C/C++, Visual Basic and Delphi are supported.
    • Standard and Low-Profile brackets are included.Typical applications for the PCIeLV card:
      1.  Subtitling
      2. Computer controlled editing
      3. Interactive video
      4. Technical scientific analysis
      5. Other applications that are based on picture accurate video processing

    Additional information

    Weight 0.17 lbs / 0.1 kg
    Dimensions 7.5 × 3.14 × 0.86 in / 190.5 × 79.8 × 21.8 mm
    Features

    Reader

    Reference Type

    VITC, LTC

    Product Documents

    Datasheet

    • PCIe LV Datasheet

    Manuals

    • PCIe LV Manual

    Firmware

    • PCIe LV Firmware

    Software Tools

    • Driver for PCI and PCIe
    • PCI SDK and Linux Driver
    • PCL Flash

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
