Home  //  Timing  //  PCIe PC Cards  //  PCIe 3G

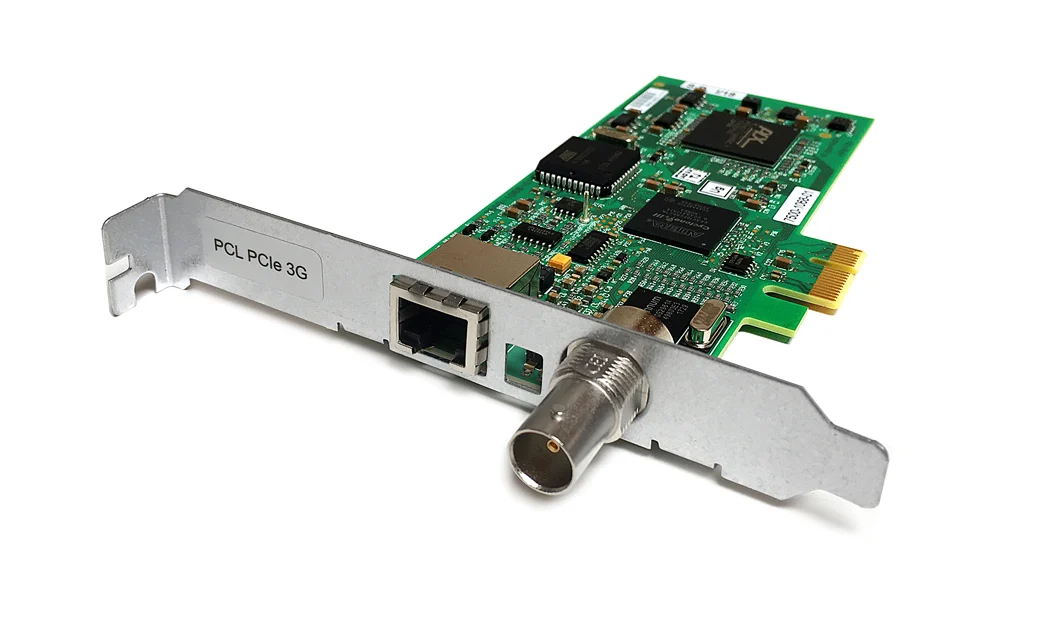

PCIe3G -front angle-1042x621PCIe3G -front angle-1042x621
  • PCIe 3G

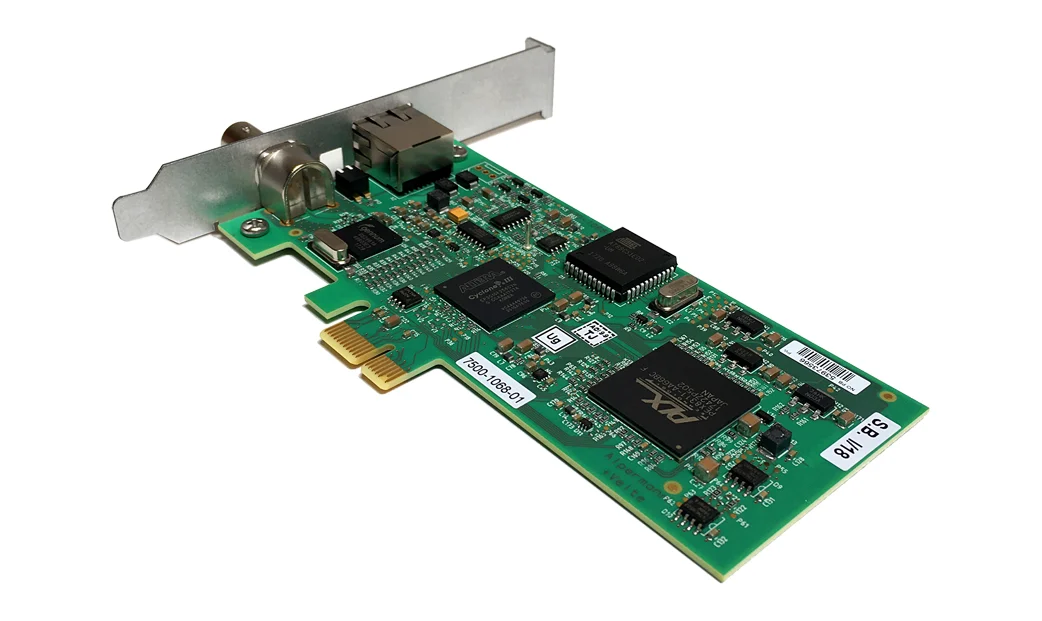

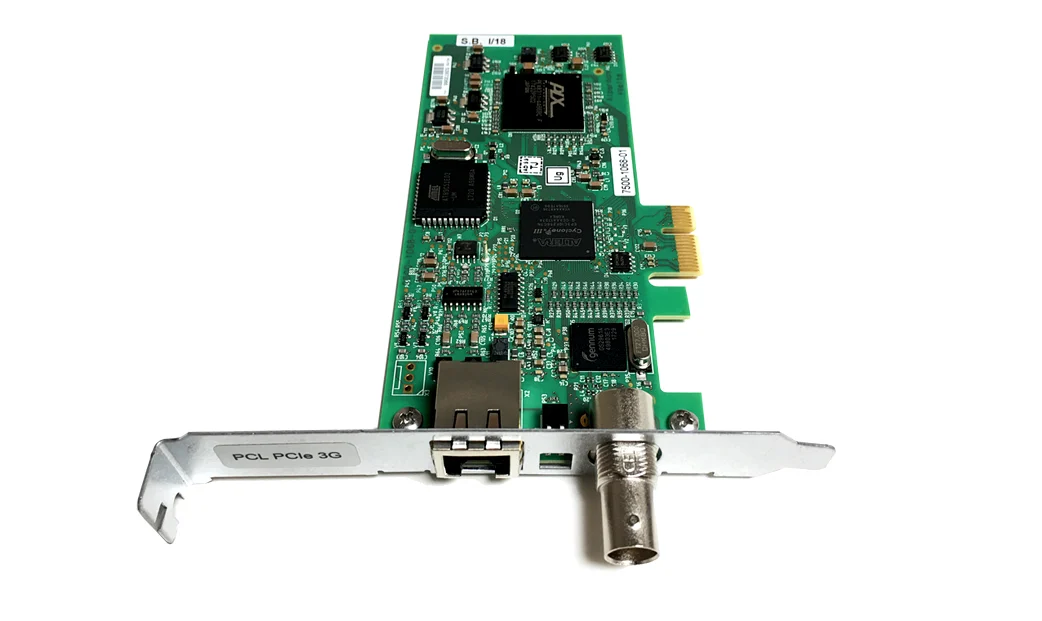

    PCIe 3G is a PCI Express reader card for LTC, and DVITC and ATC from 3G SDI, HD or SD video.

    PLURA’s most reliable and affordable PCIe cards are being used by variety of customers in many critical and important computer hardware and software development applications.



    Product Documents

    Datasheet

    • PCIe 3G Datasheet

    Manuals

    • PCIe 3G Manual

    Firmware

    • PCIe 3G Firmware
    • PCIe 3G Release Notes

    Software Tools

    • Windows driver for PCI and PCIe
    • PCI SDK and Linux Driver
    • PCL Flash

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • PCIe 3G is a PCI Express reader card for LTC, DVITC and ATC, 3G SDI video.
    • The card has its own processor system with a register set for data transfer.
    • Critical time routines are completely decoupled from the PC’s CPU, which enables extensive error checking.
    • An automatic frame rate detection (24, 25, 30, 30 DF) is supported.
    • Parallel operation of two or more PCIe-Cards is supported.
    • Windows 7-11/Server, 32/64 bit and Linux Drivers are available.
    • DLL functions for reading timecode and configuration are available.
    • C/C++, Visual Basic and Delphi are supported.
    • The „Monochrome Transfer“ method of MPEG transfer is available with this card.
    • Standard and Low-Profile brackets are included.

    Additional information

    Weight 0.17 lbs / 0.1 kg
    Dimensions 5.9 × 3.14 × 0.86 in / 149.9 × 79.8 × 21.8 mm
    Features

    Reader

    Reference Type

    ATC, VITC, LTC
