Description

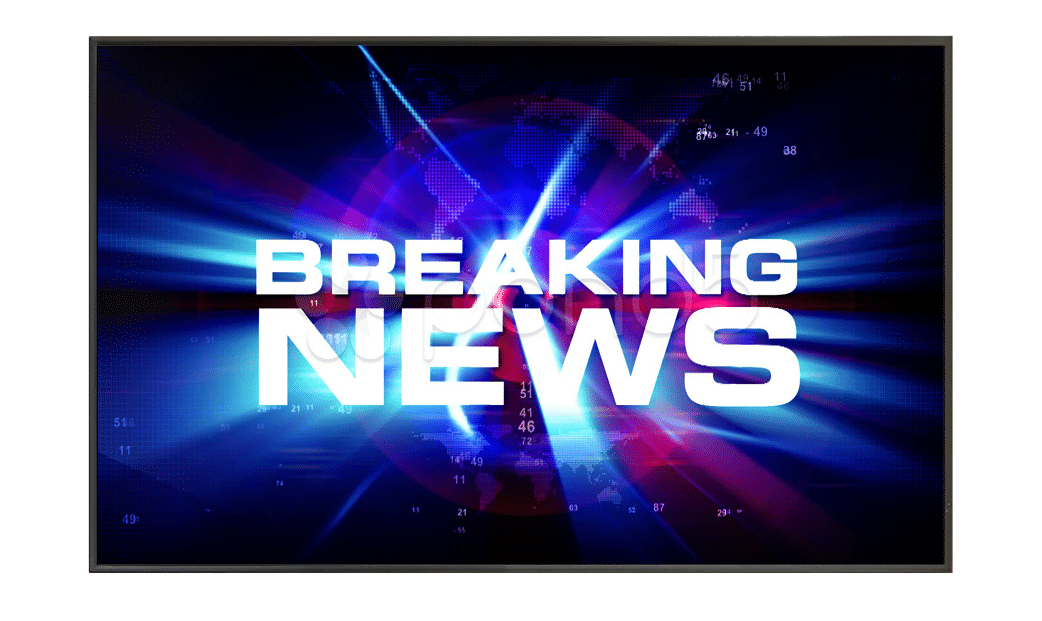

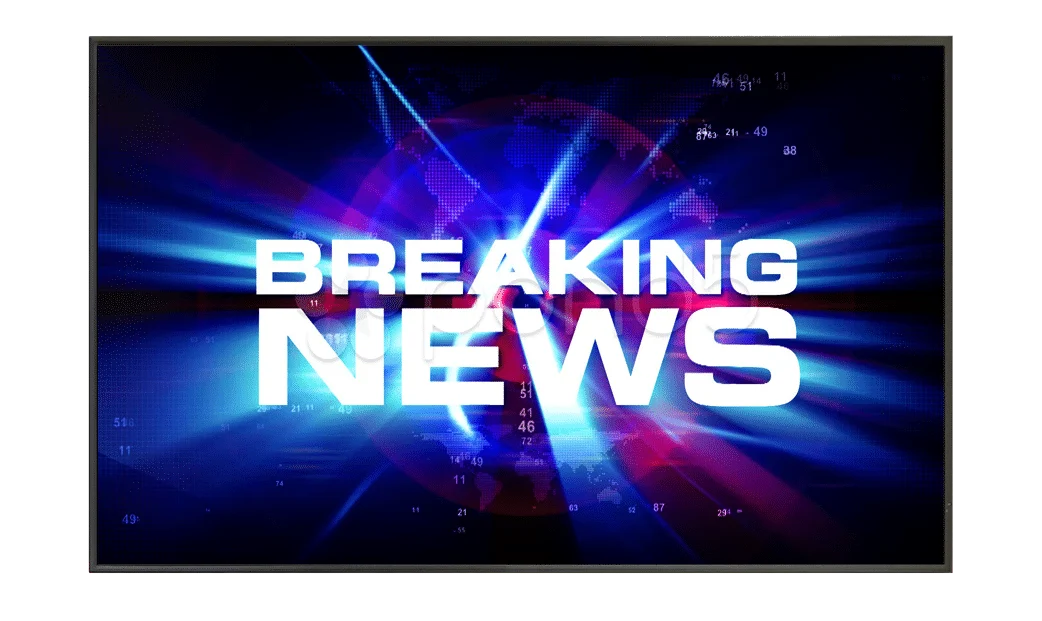

- PBM-255-4K, 55″ 4K Broadcast Monitor – UHD Panel
- Low-latency video monitoring embedded with proprietary Fast Mode technology
- PBM-255-4K supports up to 4096 x 2160 4K resolutions
- Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
- Supports Coaxial SFP I/O connectivity
- Supports IP SFP+ SDI over fiber decoding “ST-2110” with any Third-Party H/W decoder
- 1 x SFP28 supporting 12G/10G/3G/1.5G SDI
- 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) input ports
- 2 x 12G/3G/1.5G or 1 x Quad 3G-SDI (2SI / SQ) output ports
- 1 x HDMI 2.0a
- 10 bit panel color depth / 178 degree viewing angle display
- HDR (High Dynamic Range) capabilities
- PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
- RGB 12 bit Digital Signal Processing
- 3D LUT (ITU-R BT 2020, Native, BT.709 & D-Cinema)
- Customized user 3D LUT (User 1 & User 2)
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- Gamma Selectable ( 0.8 – 3.0)
- Quad View Input Mode up to 4 channels multi-view application
- Display Advanced Waveform & Vector Scope simultaneously with line select
- LKFS AUDIO Measurement with selected channel measurement in LFKS scale
- Various and User defined Markers Display & Safe Area
- Programmable 3 User Front Pushbutton Controls & GPI
- Closed Caption (608/708) – North American Market
- Cutting edge De-interlacing and scaling Technology
- Fast Response Time for high motion video
- Ember+ compliant out-band control system capabilities
- Internal Monitor Display (IMD)
- Ethernet & RS232 Remote Control
- Pixel to Pixel Mode, Tally, DC operation
- False Color and Peaking Filter / Focus Assist
- Video Range test with adjustable Y & C values
- Display LTC & DIVTC time code with line select
- Embedded Audio input, Digital Audio Decoding
- Internal Pattern Generator and Wall Control System
