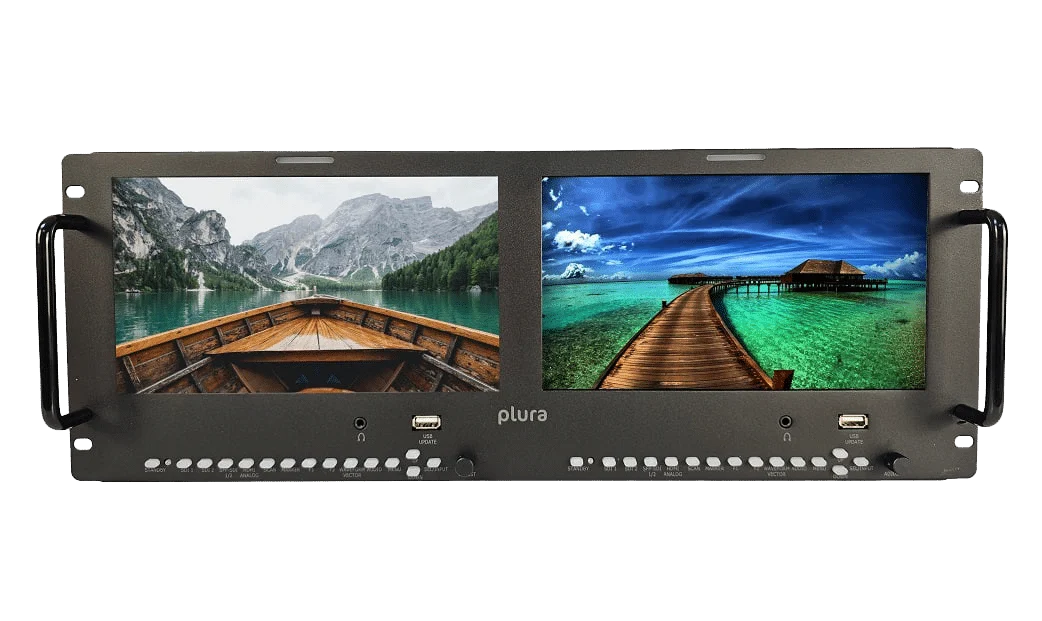

PBM-209-4K-H-DUAL

Dual 9″ along with 1000 nit TRUE HDR panel which supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require. The PBM-209-4K-H-DUAL monitor is capable to decode and preview a wide range of signal standards in 4K, UHD, FHD and HD standards.

The Plura PBM-4K-H is a comprehensive tool for all UHD/4K, 3G media systems. The PBM-4K-H Series was designed and engineered for simple operation and future flexibility. The platform is built around FHD panel display and powerful FPGA chipset. The core of this platform is based on fully programmable architecture. Future proof expansion (i.e. additional features and functionalities can and will be implemented in the field via the Ethernet interface). The PBM-4K-H Series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

PBM-4K-H, PBM-4K, SFP-25G, SFP-25G-H, and SFP-10G – feature low latency capabilities through integrated Fast Mode technology. Essential for applications where every millisecond counts, such as conductor cameras in remote music performance setups or live broadcast environments.

With support for 4K UHD resolution, HDR, and SFP-25G/10G connectivity, these monitors deliver high-speed, accurate video processing to ensure synchronized audiovisual output, which is vital for conductors, orchestras, and other live performance professionals who depend on real-time feedback.

Contact Sales

Screen Size

2 x 9"

Backlight

LED

Video

12G, 3G, DVI, HD-DL, HDMI, HDSDI

Advanced Features

Closed Caption 708/608, Ember+, Teletext 801 & OP-47, Vectorscope / Waveform, 4K/UHD, HDR, SFP Modules Compatibility

PBM-209-4K-H-DUAL

Datasheet Contact Sales

Features

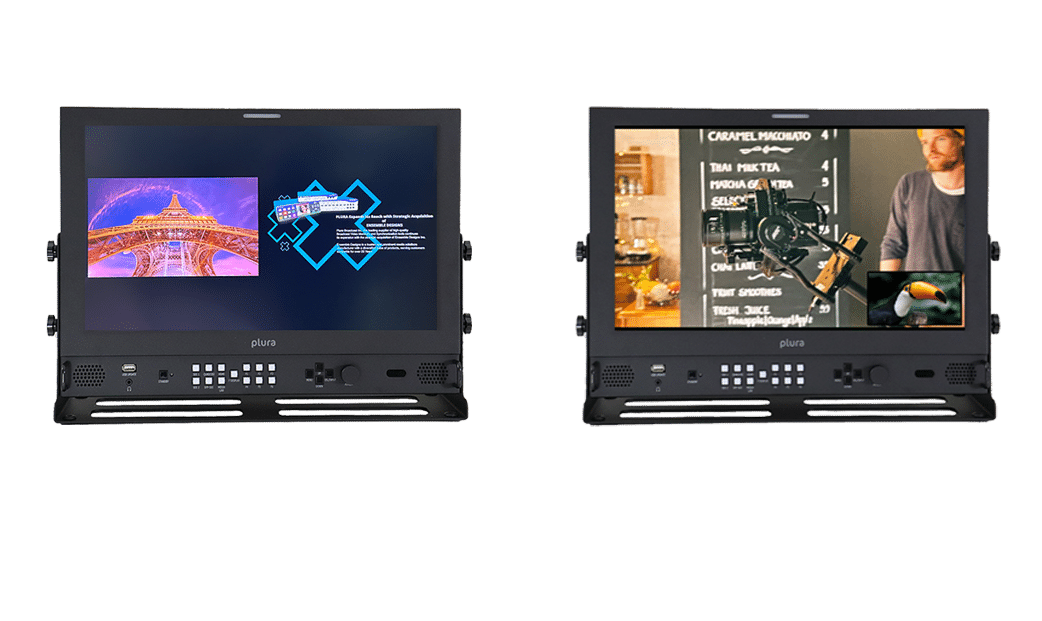

Dual display PIP & PAP

Plura’s Picture-in-Picture (PIP) and Picture-and-Picture (PAP) features enable users to monitor multiple video sources simultaneously within a single display, perfect for live production and technical environments.

LKFS

This monitor series support the popular Audio Loudness “LKFS” feature. The Audio Loudness can be accessed via Audio Menu as well as the FUNCTION key.LKFS and QC Dashboard capabilities

NEW & Advanced features take Master Control monitoring to a higher and unmatched Level. Plura selected monitors support “QC Dashboard” that include WF/VS, Audio meters, (Closed Caption Decoding) and an on screen LKFS measurement with logging!

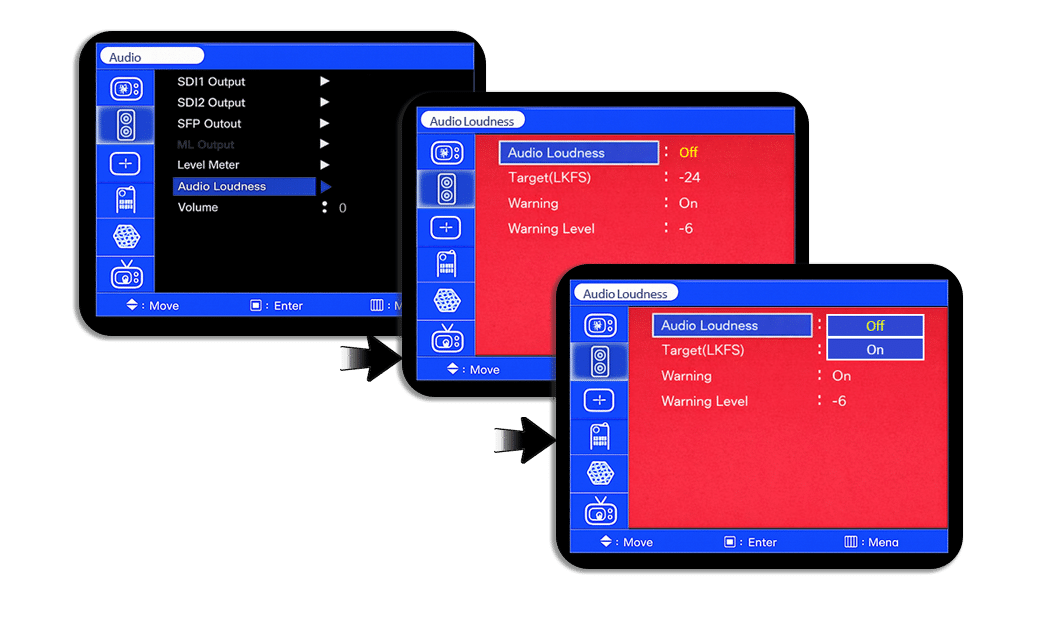

Audio Loudness Menu can be selected from the audio menu

Settings
1. Target Level
2. Warning notifications
3. Warning level

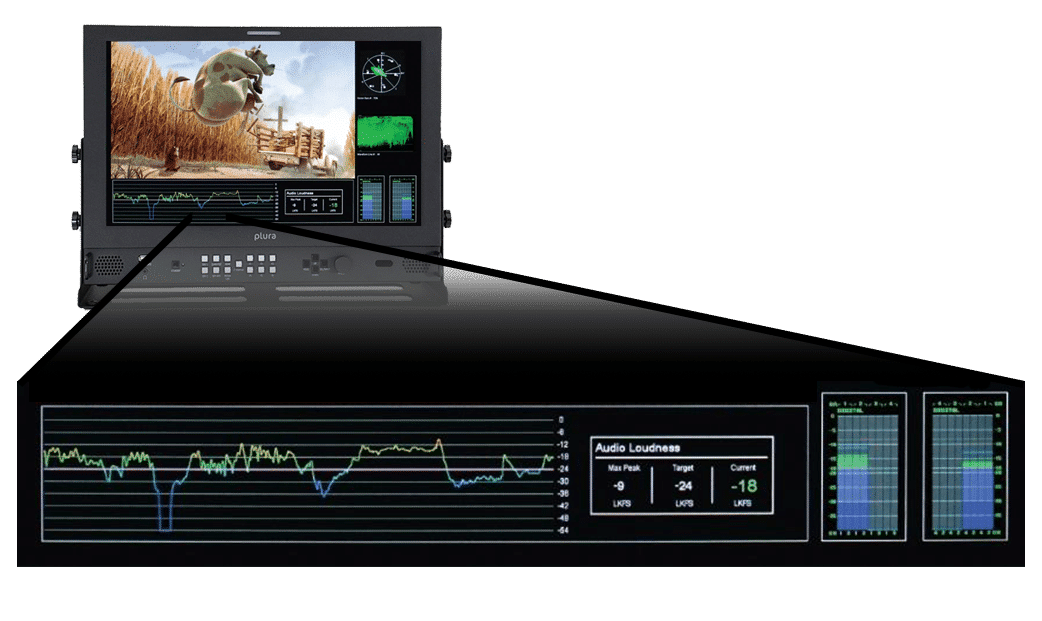

LKFS Loudness Real-Time Monitoring & Logging

LKFS Loudness Real-Time display & logging on a remote PC using PSC-500

(Plura System Controller Utility). See below:

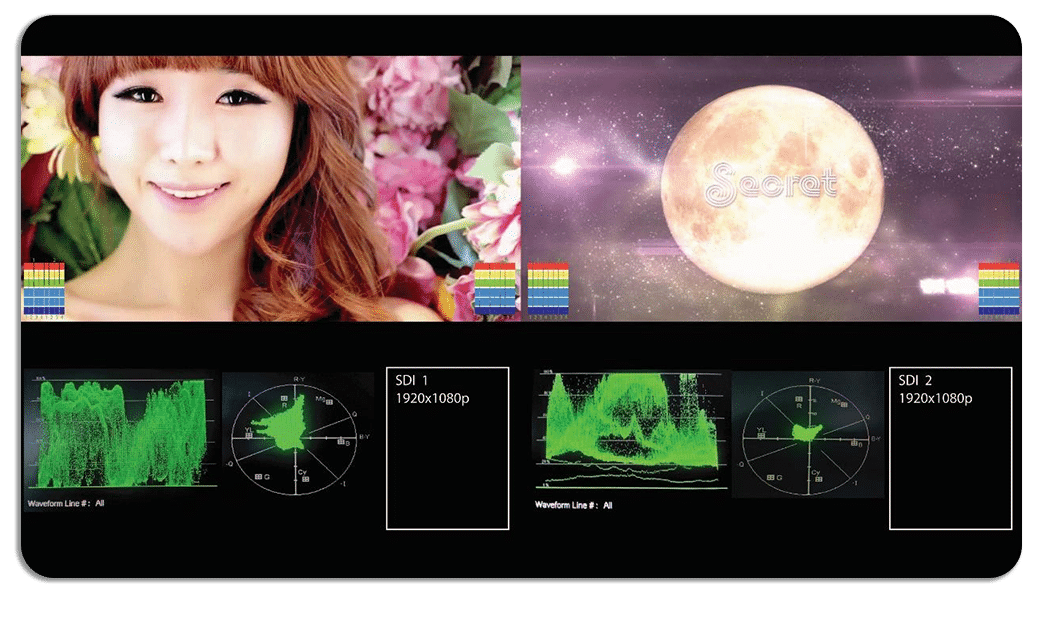

Advanced WF & Vector with Line select animation

Plura monitors supports multiple waveform and vector modes

Luminance & Vector
Chroma B & Vector
Chroma R & Vector
Luminance, Chroma R & B
Luminance G
Luminance R
Luminance B
Luminance G,B,R
Signal State 1 with Luminance & Vector
Signal State 2 with Luminance & Vector
Quad view with CH1

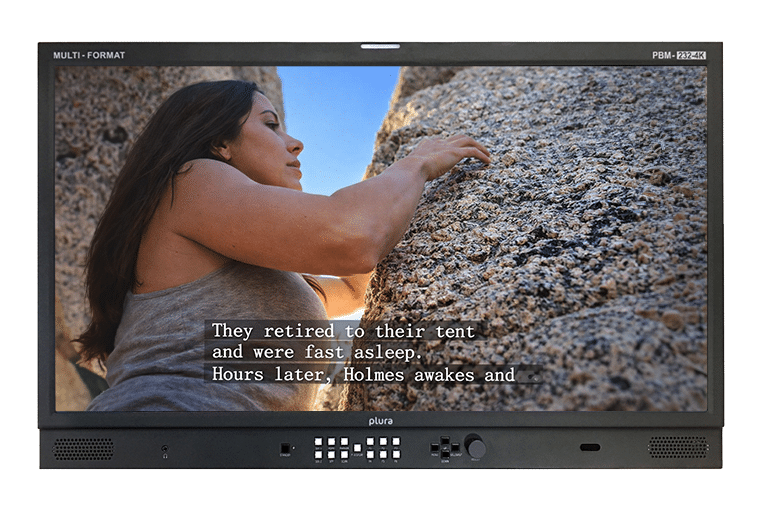

Closed Caption and OP47 display

Closed Caption (CC) and OP-47 support require professional monitoring tools, such as Plura monitors, to ensure standards for embedding, decoding, and monitoring subtitles in video signals. OP-47 is a World System Teletext (WST) standard used for HD/SD video that carries data in VANC (Vertical Ancillary) packets, requiring specialized hardware for compliance and confidence checks.

Plura monitors provide robust support for CEA-708/608 closed captioning and OP-47 teletext. By decoding these embedded VANC data streams directly, Plura monitors allow users to view captions on-screen and analyze them using built-in quality control tools, such as waveform monitors. This integration simplifies workflows and ensures caption integrity and broadcast compliance across regions, including North America, Europe, and Australia/NZ.

Highlights

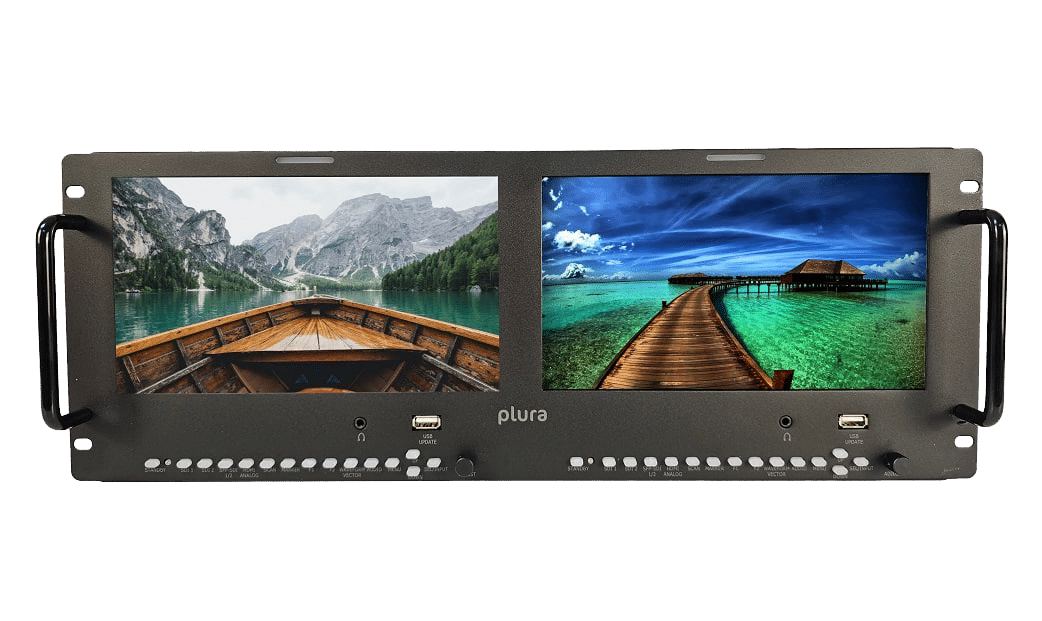

PBM-209-4K-H-DUAL, 2 x 9″ FHD 1000 nit TRUE HDR Panel
Low-latency video monitoring embedded with proprietary Fast Mode technology
PBM-209-4K-H-DUAL supports up to 4096 x 2160 4K resolutions

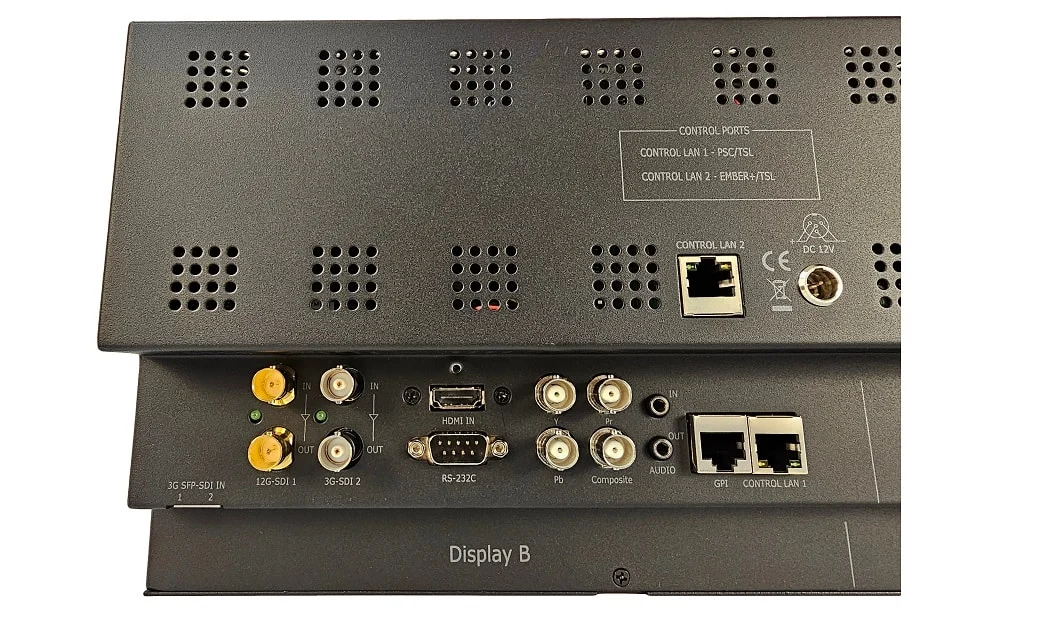

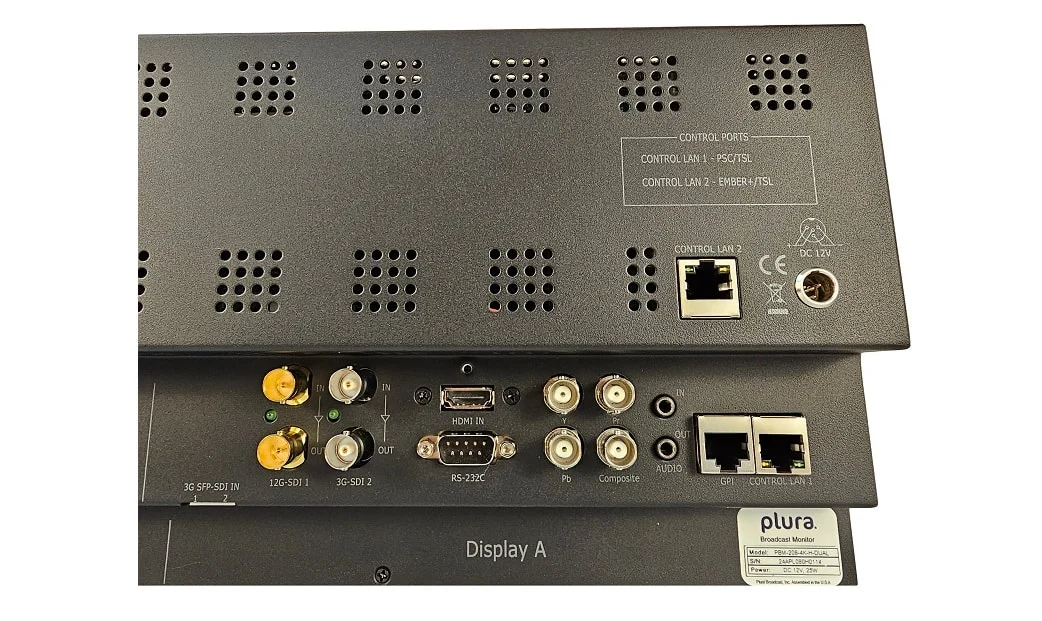

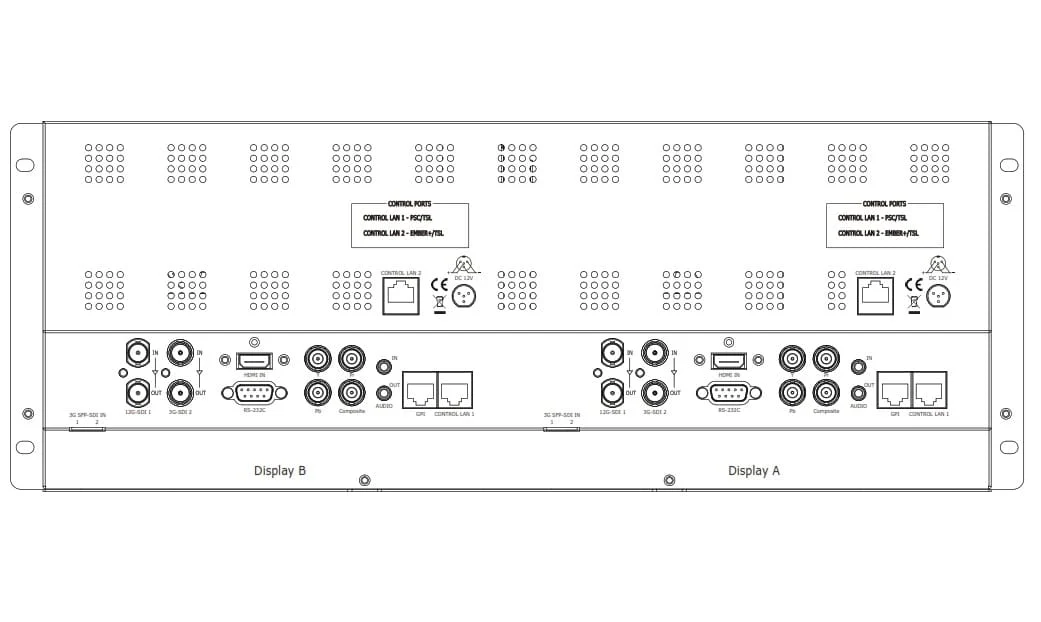

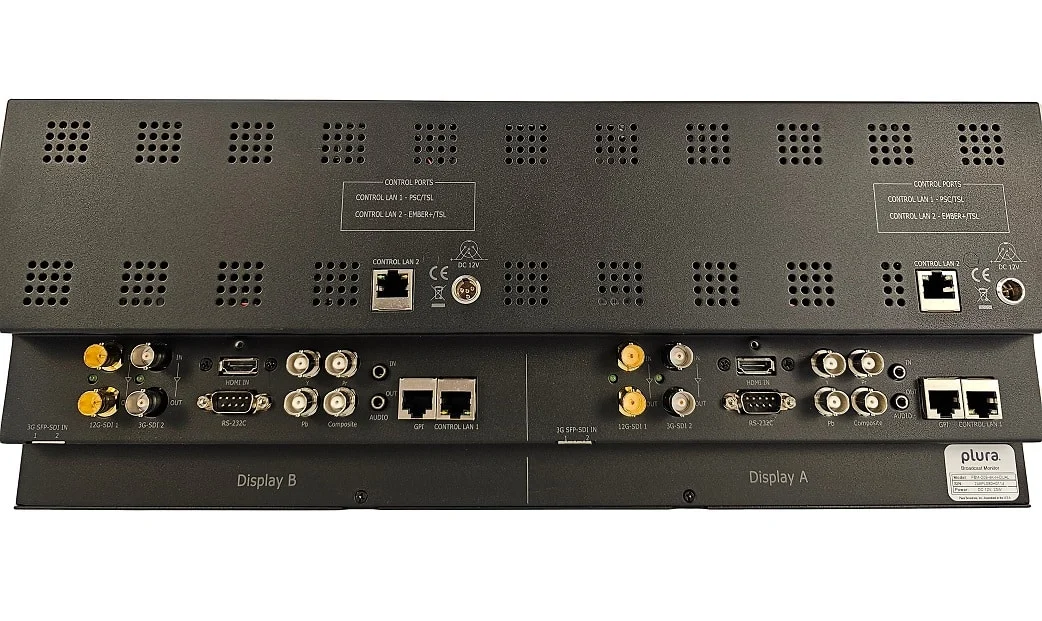

Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
Supports Coaxial SFP I/O connectivity
4 x 3G/1.5G SDI SFP+ input ports
2 x 12G/3G/1.5G input port
2 x 3G/1.5G input port
2 x 12G/3G/1.5G output port
2 x 3G/1.5G output port
2 x HDMI 1.4
8 bit panel color depth
HDR (High Dynamic Range) capabilities
PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
RGB 12 bit Digital Signal Processing
178 degree Viewing Angle Display
Gamma Selectable ( 0.8 – 3.0)
Color Temperature – User, VAR, Adjustable (9300K TO 3200K)
(ICAC) – Plura Intelligent Connection for Alignment & Calibration
3D LUT (ITU-R, BT.2020, D-Cinema, BT.709)
Display Advanced Waveform & Vector Scope simultaneously with line select
LKFS AUDIO Measurement with selected channel measurement in LFKS scale
Various and User defined Markers Display & Safe Area

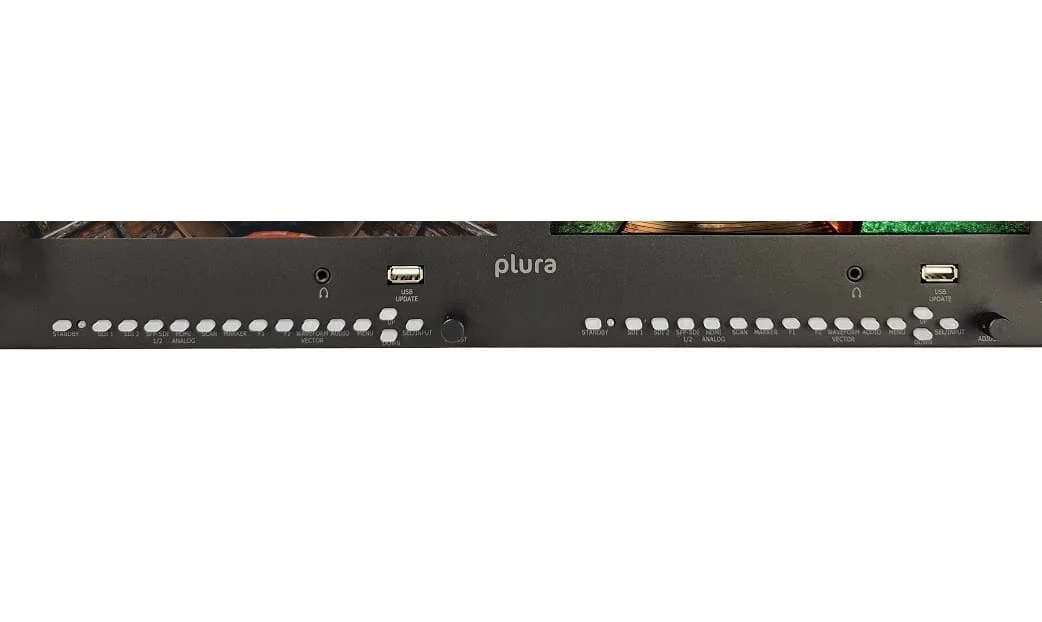

Programmable 3 User Front Pushbutton Controls & GPI
Closed Caption (608/708) – North American Market
Teletext 801 & Subtitle OP-47 – Australia & N.Z. Market
Cutting edge De-interlacing and scaling Technology
Ember+ compliant out-band control system capabilities
Fast Response Time for high motion video
Internal Monitor Display (IMD)
Ethernet & RS232 Remote Control
Pixel to Pixel Mode, Tally, DC operation
False Color and Peaking Filter / Focus Assist
Video Range test with adjustable Y & C values
Display LTC & DIVTC time code with line select
Embedded Audio input, Digital Audio Decoding
Internal Pattern Generator and Wall Control System
More Plura Products information click here

Specifications

Weight	8 lbs
Dimensions	9.44 × 6.88 × 3.44 in
Screen Size	2 x 9"
Style	Rackmount
Screen Resolution	1280×720
Backlight	LED
Color Depth	8bit
Advanced Features	Closed Caption 708/608, Ember+, Teletext 801 & OP-47, Vectorscope / Waveform, 4K/UHD, HDR, SFP Modules Compatibility
Control	Ember+, Ethernet, RS232, Wall Control System
ICAC	Yes
Video	12G, 3G, DVI, HD-DL, HDMI, HDSDI
Audio	Embedded Digital Audio
Additional Features	Closed Caption, Vectorscope, Waveform
Housing	19" Rack
RU	4
Ember+ Complaint	Yes
