Home  //  Monitors  //  PRM-3G  //  PRM-224-3G-O
OLED Broadcast MonitorOLED Broadcast Monitor
  • OLED Broadcast Monitor
  • PRM-224-3G-O

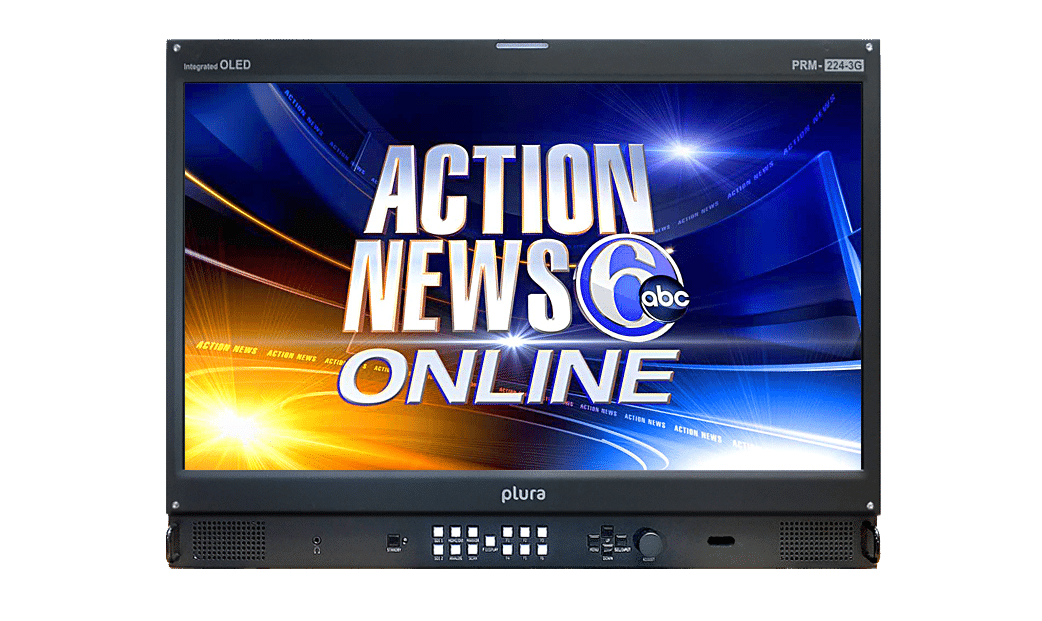

    PRM-224-3G-O, 24″ OLED Broadcast Monitor offers an elegant slim design integrated with Grade A – 10 BIT OLED 24.5″ panel and delivers outstanding BLACK performance, HDR (High Dynamic Range) capabilities, very fast response time for smooth video with virtually NO motion blur, High contrast of 5000:1, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring application.

    PRM-3G Plura Precision Broadcast Series supports 3 Gbps – 1080P/60P input capability as well as all other types of digital video formats HD & SD-SDI and analog video formats like RGB, Component and Composite signals.

    It features

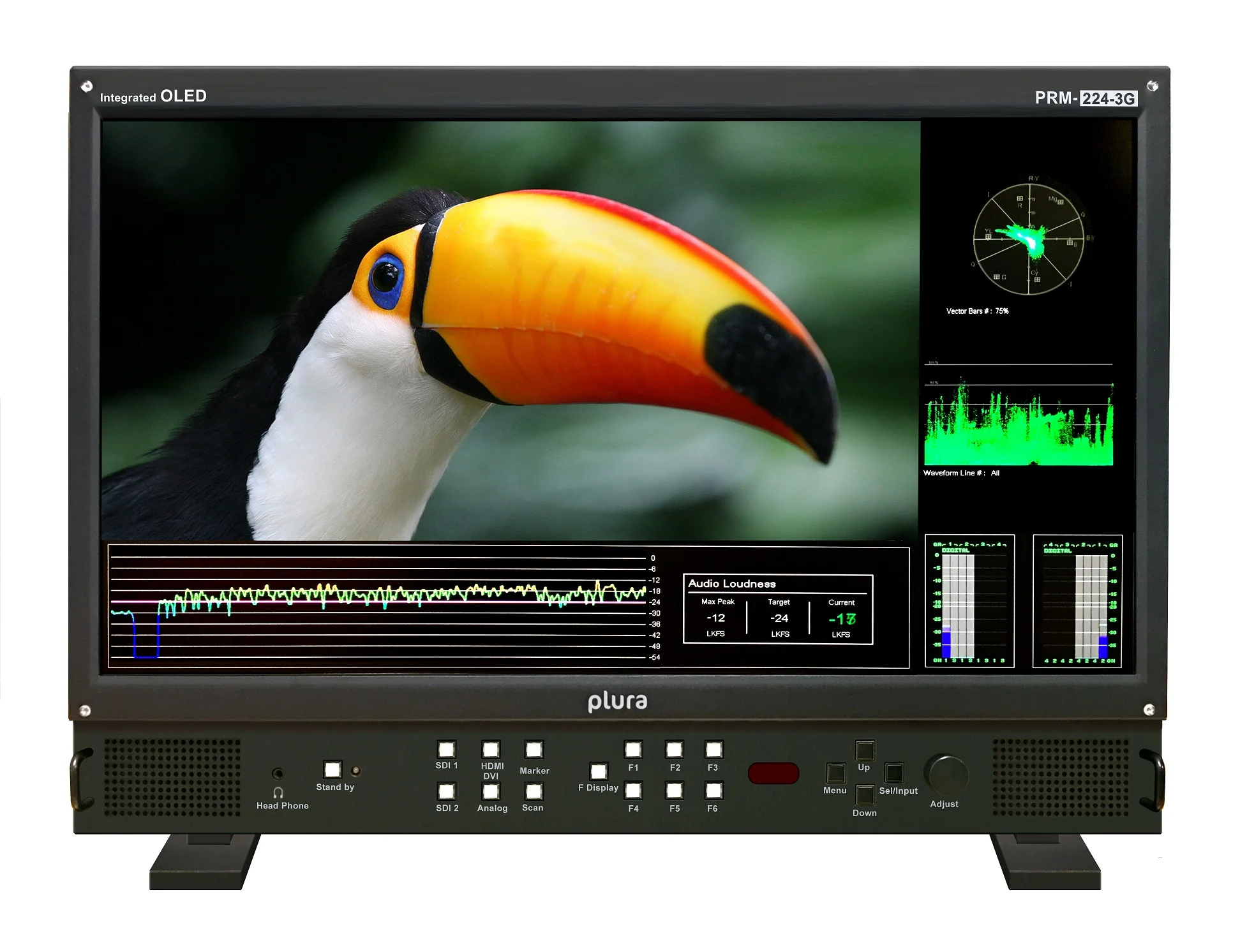

    • LKFS AUDIO Measurement – Digital Loudness Audio Metering with selected channel measurement in LFKS scale.
    • Dual Display with Dual Waveform / Vector measurement.
    • Intelligent connection for Calibration & Alignment and Adjustable Colorimetry and Gamma Correction.
    • As an optional feature the PRM-3G series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    Product Documents

    Datasheet

    • PRM-3G Datasheet

    Manuals

    • PRM-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PRM-3G Mechanical Drawings

    Firmware

    • PRM-224-3G-O CC Firmware

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • OLED Broadcast Monitor
    • PRM-224-3G-O, 24″
    • LKFS Audio Measurement – Digital Loudness Audio metering in LKFS scale
    • HDR (High Dynamic Range) capabilities
    • PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
    • 10 BIT Color Depth 24″ integrated OLED Panel, 3D LUT, Dual display modes with dual Wfrm & Vect
    • 2 x Auto-detect HD-SDI, SDI with active loops (3 Gb/s / 1.485Gb/s / 270Mb/s)
    • 3 x Composite inputs with active loops, 1 x DVI/VGA and 1 x HDMI
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • 3D LUT & Wide range of Gamma selection
    • Closed Caption (608/708) – Teletext 801 & Subtitle OP-47
    • Ethernet control, Advanced audio metering
    • Ember+ compliant control system capabilities – OPTIONAL
    • RGB 12 Bit Digital Signal Processing
    • Internal Monitor Display (IMD)
    • 5000:1 OLED Broadcast Monitor Contrast Ratio
    • Pixel to Pixel Mode, Tally, DC Operation
    • Display LTC & DVITC time code with line select
    • Internal Pattern Generator and Wall Control System
    • Built In Stereo Speaker, 16 CH Audio Metering Display
    • Analog & Embedded Audio Input, Digital Audio Decoding
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • Various and User defined Markers Display, Safe Area in HD & SD
    • Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Programmable 6 User Front Pushbutton Controls, GPI & RS232 Remote Control
    • OPTION: Battery Mount, Rack mount, Wall mount, Carry Case
    • More Plura Products information click here

    Additional information

    Weight 30.8 lbs / 14.0 kg
    Dimensions 22.7 × 16.7 × 3.3 in / 576.6 × 424.2 × 83.8 mm
    Screen Size

    24"

    Style

    Desktop

    Screen Resolution

    1920×1080

    Backlight

    OLED

    Color Depth

    10bit

    Advanced Features

    Closed Caption 708/608, Ember+, Teletext 801 & OP-47, Vectorscope / Waveform, HDR, LKFS Measurement

    Control

    Optional Ember+, Ethernet, IR, RS232, Wall Control System

    ICAC

    Yes

    Video

    3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (100×100) & (75×75), Optional 19" Rack, VESA

    RU

    9
