BrightEye 10 Optical/SDI to Analog/SDI Converter

BrightEye 10 is a digital to analog video converter with both SD SDI (electrical) and fiber optic inputs. Output formats include Beta and SMPTE component, RGB, and composite (with simultaneous Y/C). Video processing, encoding and analog conversion is performed digitally at 12 bits of resolution with 8 x oversampling.

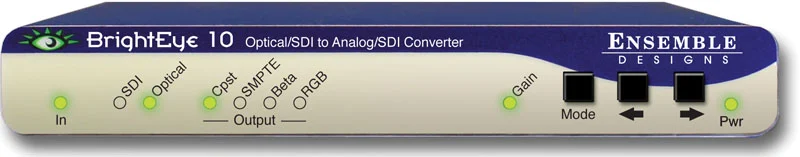

Front panel controls select between the optical and SDI input, choose the analog output format, and adjust gain. Video levels can be adjusted through the BrightEye Control app.

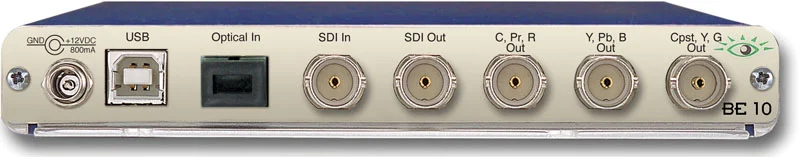

The reclocked SD SDI output follows the input selector, providing optical to electrical conversion when the optical input is selected. BrightEye 10 combines fiber to SD SDI conversion and QC monitoring in one compact unit.

Product Documents

Datasheet

Contact Sales

Description

  • Use with VCR’s, cameras, satellite receivers
  • Analog Video Inputs and Outputs
  • Optical to Analog converter
  • Optical to SDI converter
  • TBC and Frame Sync
  • 12 bit processing

Additional information

Control

USB
Video Input

SD SDI, Fiber Optic
Video Output

SD SDI, Analog Component, Analog Composite

Product Documents

Datasheet
