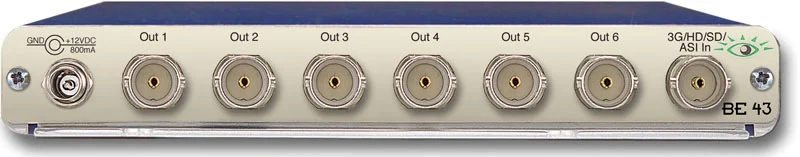

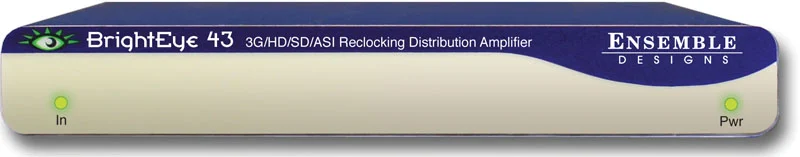

BrightEye 43 3G/HD/SD/ASI Distribution Amplifier

BrightEye 43 is a reclocking distribution amplifier that can be used with standard definition video signals, 3 Gb/s and 1.5 Gb/s high definition signals, or ASI signals. The signal is equalized, reclocked and delivered to the outputs.

Product Documents

Datasheet

Contact Sales

Description

  • Use with Video Converters and TSGs in Order to Have More Outputs
  • DA for Digital HD or SD Signals
  • DA for 3G HD, Level A or Level B
  • DA for ASI Signals
  • Passes Embedded Audio
Serial Digital Input
  • Number: One
  • Signal Type:
    270 Mb/s SD Serial Digital (SMPTE 259M)
    1.485 Gb/s HD Serial Digital (SMPTE 274M, 292M or 296M)
    2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M)
  • Impedance: 75 Ω
  • Return Loss: >15 dB to 1.485 GHz; >10 dB to 2.97 GHz
  • Max Cable Length:
    300 meters for 270 Mb/s
    100 meters for 1.485 Gb/s
    70 meters for 2.97 Gb/s (Belden 1694A)
  • Automatic Input Cable Equalization
Serial Digital Output
  • Number: Six (Three for ASI)
  • Signal Type: 3G/HD/SD/ASI Serial Digital follows input
  • Impedance: 75 Ω
  • Return Loss: >15 dB to 1.485 GHz; >10 dB to 2.97 GHz
  • Output DC: None (AC coupled)
General Specifications
  • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
  • Power: 12 volts, 7 watts (100-230 VAC modular power supply)
  • Temperature Range: 0 to 40° C ambient
  • Relative Humidity: 0 to 95° non-condensing
