Home  //  Monitors  //  SFP-H-7  //  SFP-332-H-7
  • SFP-H IO Connectivity
  • SFP-332-H-7

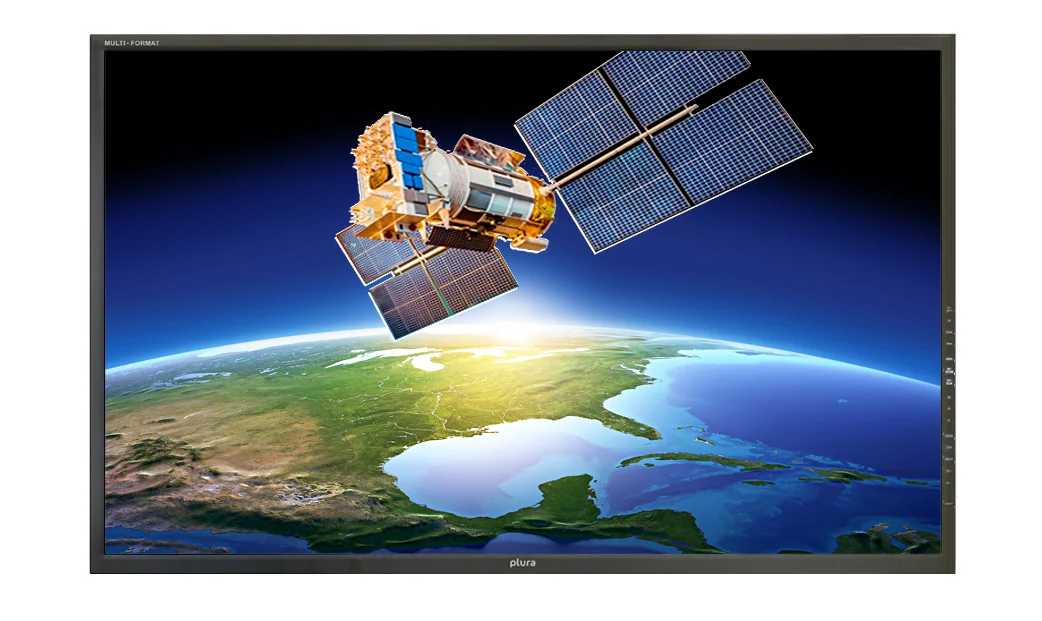

    SFP-332-H-7, 32″ monitor supports 3G SMPTE ST 2110 signals across 10 GigE and it features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7

    • Supports ST-2022-7
    • Ember+ control system compliant
    • Decode ST-2110 and ST-2022
    •  IP – 10G/s SFP+
    • Fiber – 3Gb/s SFP
    • Coaxial SFP 3Gb/s
    • Direct BNC 3Gb/s I/O

    SFP-H-7 supports 3G SMPTE ST 2110 signals across 10 GigE and it features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7, providing redundancy protection for critical distribution and monitoring applications “hitless switching”.

    SFP-H-7 monitor series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    Product Documents

    FAQ

    • 2110 & 2022-7 Interoperability Frequently Asked Questions

    Datasheet

    • SFP-H-7 Datasheet

    Manuals

    • SFP-H-7 Manual
    • PIPM-R-7 - 2110, 2022-7 Module Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • SFP-H-7 Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • 2110 & 2022-7 Interoperability Frequently Asked Questions
    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • SFP-332-H-7, 32″ Hybrid Monitor  supporting Coax, Fiber & IP connectivity
    • Integrated with “PIPM-R-7” Plura IP Platform Module
    • Supports 3G SMPTE ST 2110 signals across 10 GigE
    • Features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7
    • Providing redundancy protection for critical distribution and monitoring applications “hitless switching”
    • Supports Coaxial 3Gb/s BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • Supports IP SFP+ over fiber decoding “ST-2110 & ST-2022” with any Third-Party H/W decoder
    • 2 x SFP+ cages supporting 10G/3G/1.5G SDI
    • 1 x 3G/1.5G Input port
    • 2 x 3G/1.5G output ports
    • LKFS Audio Loudness logging & measurement
    • Built-IN 4 x 4 Crosspoint Solution
    • 1 x HDMI, 1 x DVI & other legacy I/O
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 – 3.0)
    • Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • Various and User defined Markers Display & Safe Area
    • Programmable 3 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) – North American Market
    • Op42 & OP47 – Teletext line 801 for Australia & New Zealand Market
    • Cutting edge De-interlacing and scaling Technology
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control
    • Ember+ compliant control system capabilities
    • Underscan / Overscan / Normal / Zoom
    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System

    Additional information

    Weight 30 lbs / 13.6 kg
    Dimensions 28.85 × 17.8 × 2.85 in / 732.8 × 452.1 × 72.4 mm
    Screen Size

    32"

    Style

    Desktop

    Screen Resolution

    1920×1080

    Backlight

    LED

    Color Depth

    10bit

    Advanced Features

    Closed Caption 708/608, Ember+, IP2110-2022/7, Teletext 801 & OP-47, Vectorscope / Waveform, LKFS Measurement, SFP Modules Compatibility

    Remote Control Features

    Ember+, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    H/W Decoding

    ST-2022, ST-2110

    S/W Decoding

    ST-2022-7, ST-2110

    Video

    3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (300 x 270)

    Ember+ Complaint

    Yes
