Home  //  Monitors  //  PBM-4K-H  //  PBM-224-4K-H
PBM224-4K-HPBM224-4K-H
PBM224-4K-HPBM224-4K-H
  • PBM224-4K-H
  • PBM224-4K-H
  • PBM-224-4K-H

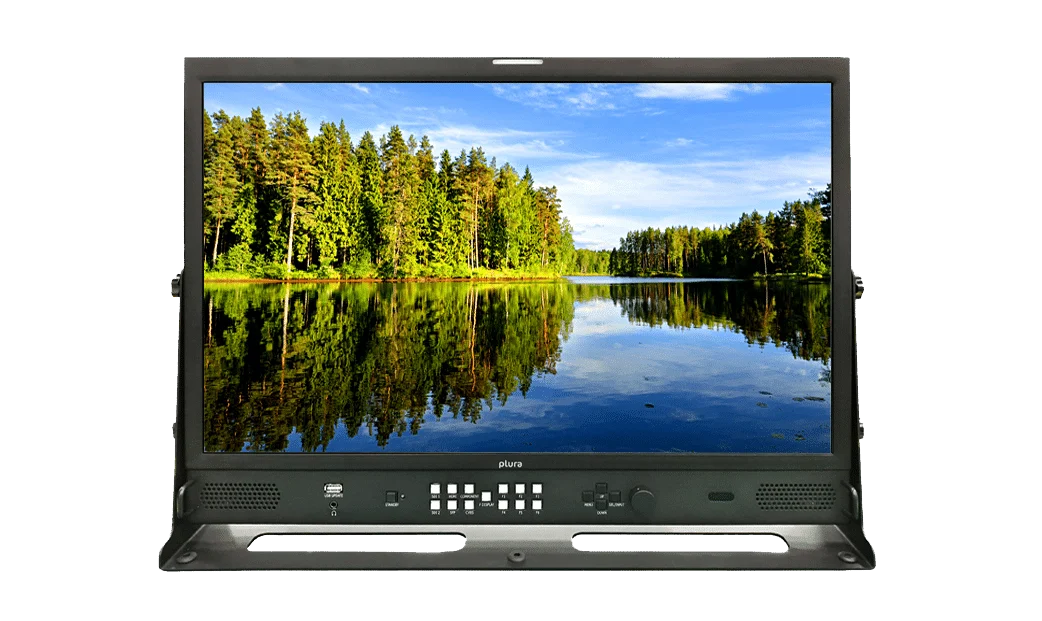

    24″ monitor supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require. The PBM-224-4K-H monitor is capable to decode and preview a wide range of signal standards in 4K, UHD, FHD and HD standards.

    The Plura PBM-4K-H is a comprehensive tool for all UHD/4K, 3G media systems. The PBM-4K-H Series was designed and engineered for simple operation and future flexibility. The platform is built around FHD panel display and powerful FPGA chipset. The core of this platform is based on fully programmable architecture. Future proof expansion (i.e. additional features and functionalities can and will be implemented in the field via the Ethernet interface). The PBM-4K-H Series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    PBM-4K-H, PBM-4K, SFP-25G, SFP-25G-H, and SFP-10G – feature low latency capabilities through integrated Fast Mode technology. Essential for applications where every millisecond counts, such as conductor cameras in remote music performance setups or live broadcast environments.

    With support for 4K UHD resolution, HDR, and SFP-25G/10G connectivity, these monitors deliver high-speed, accurate video processing to ensure synchronized audiovisual output, which is vital for conductors, orchestras, and other live performance professionals who depend on real-time feedback.

    Product Documents

    Datasheet

    • PBM-4K-H Datasheet

    Manuals

    • PBM-4K-H Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PBM-4K-H Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • PBM-224-4K-H, 24″ 4K Broadcast Monitor – FHD Panel
    • Low-latency video monitoring embedded with proprietary Fast Mode technology
    • PBM-224-4K-H supports up to 4096 x 2160 4K resolutions

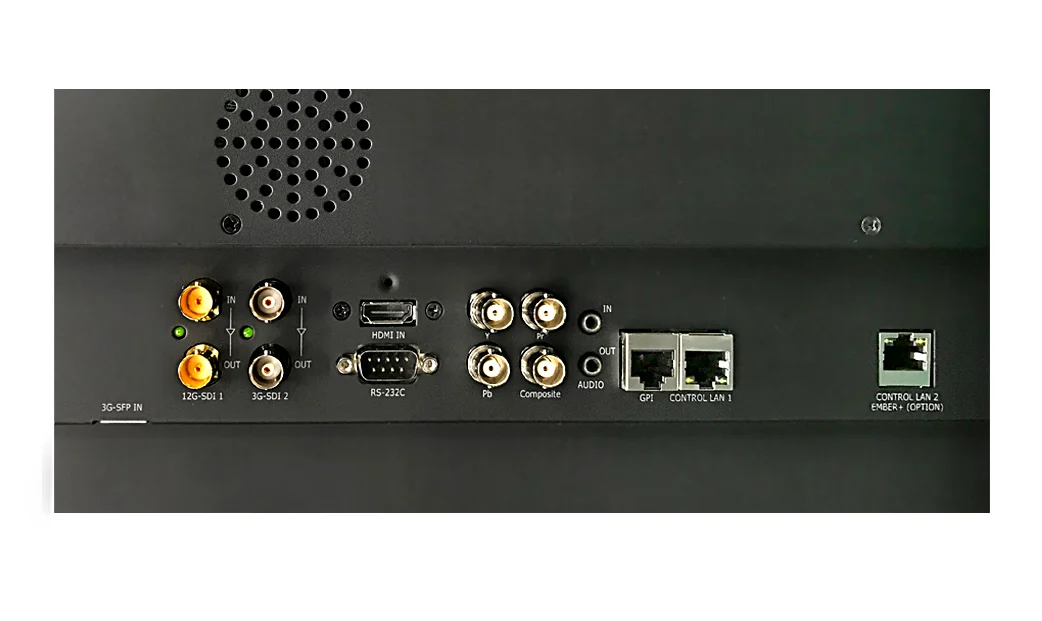

    • Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
    • Supports Coaxial SFP I/O connectivity
    • 2 x 3G/1.5G SDI SFP+ input ports
    • 1 x 12G/3G/1.5G input port
    • 1 x 3G/1.5G input port
    • 1 x 12G/3G/1.5G output port
    • 1 x 3G/1.5G output port
    • 1 x HDMI 1.4
    • 8 bit panel color depth
    • HDR (High Dynamic Range) capabilities
    • PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
    • RGB 12 bit Digital Signal Processing
    • 178 degree Viewing Angle Display
    • Gamma Selectable ( 0.8 – 3.0)
    • Color Temperature – User, VAR, Adjustable (9300K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • 3D LUT (ITU-R, BT.2020, D-Cinema, BT.709)
    • Display Advanced Waveform & Vector Scope simultaneously with line select
    • LKFS AUDIO Measurement with selected channel measurement in LFKS scale
    • Various and User defined Markers Display & Safe Area

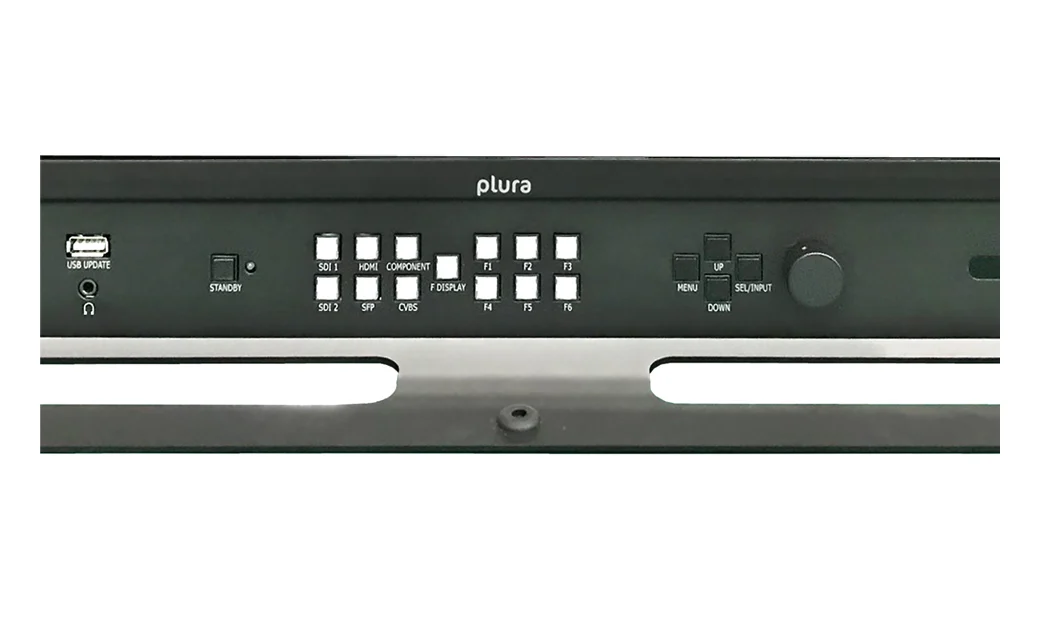

    • Programmable 3 User Front Pushbutton Controls & GPI
    • Closed Caption (608/708) – North American Market
    • Teletext 801 & Subtitle OP-47 – Australia & N.Z. Market
    • Cutting edge De-interlacing and scaling Technology
    • Ember+ compliant out-band control system capabilities
    • Fast Response Time for high motion video
    • Internal Monitor Display (IMD)
    • Ethernet & RS232 Remote Control

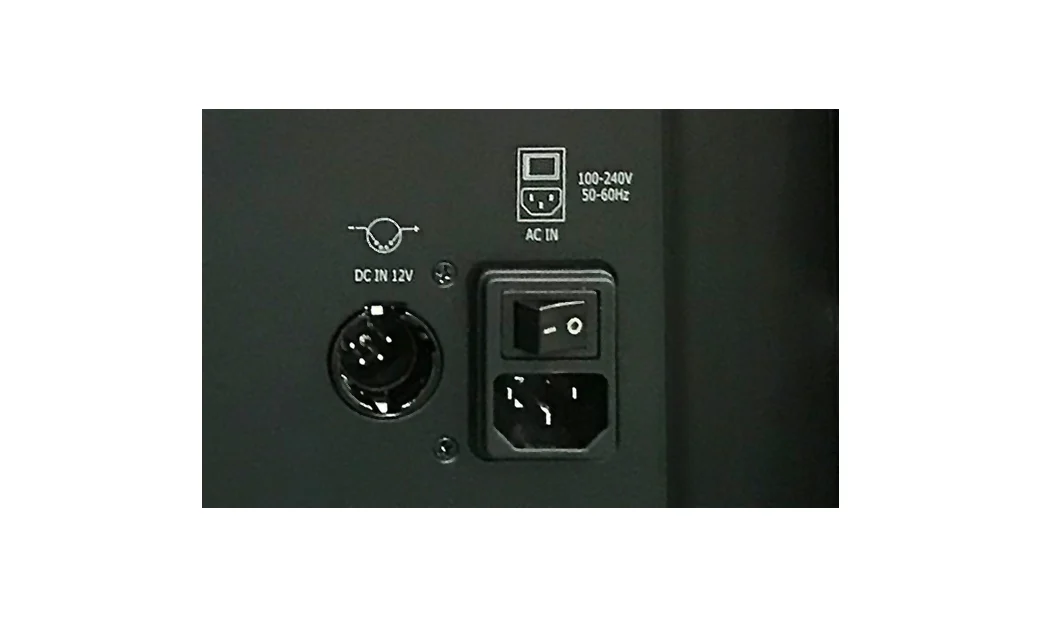

    • Pixel to Pixel Mode, Tally, DC operation
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DIVTC time code with line select
    • Embedded Audio input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System
    • More Plura Products information click here

    Additional information

    Weight 22 lbs / 10.0 kg
    Dimensions 21.732 × 16.259 × 3.228 in / 552.0 × 413.0 × 82.0 mm
    Screen Size

    24"

    Style

    Desktop

    Screen Resolution

    1920×1200

    Backlight

    LED

    Color Depth

    8bit

    Advanced Features

    Closed Caption 708/608, Ember+, Teletext 801 & OP-47, Vectorscope / Waveform, 4K/UHD, HDR, SFP Modules Compatibility

    Control

    Ember+, Ethernet, RS232, Wall Control System

    ICAC

    Yes

    Video

    12G, 3G, DVI, HD-DL, HDMI, HDSDI

    Audio

    Embedded Digital Audio

    Additional Features

    Closed Caption, Vectorscope, Waveform

    Housing

    VESA (100×100) & (75×75), Optional 19" Rack

    RU

    9

    Ember+ Complaint

    Yes

    Videos

    Prev 1 of 1 Next
    • Ember+ TSL Integration with Plura Monitors

      Ember+ TSL Integration with Plura Monitors

    • PLURA Tutorials: Factory Reset on a PBM Monitor

      PLURA Tutorials: Factory Reset on a PBM Monitor

    • 2019 NABShow New York - BFE Controller

      2019 NABShow New York - BFE Controller

    • PBM-210-4K-H 10-inch Monitor

      PBM-210-4K-H 10-inch Monitor

    Prev 1 of 1 Next

    Product Documents

    Datasheet

    • PBM-4K-H Datasheet

    Manuals

    • PBM-4K-H Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PBM-4K-H Mechanical Drawings

    Firmware

    • Please contact Tech Support

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog
