  • Avenue P9400-4K Test Signal Generator

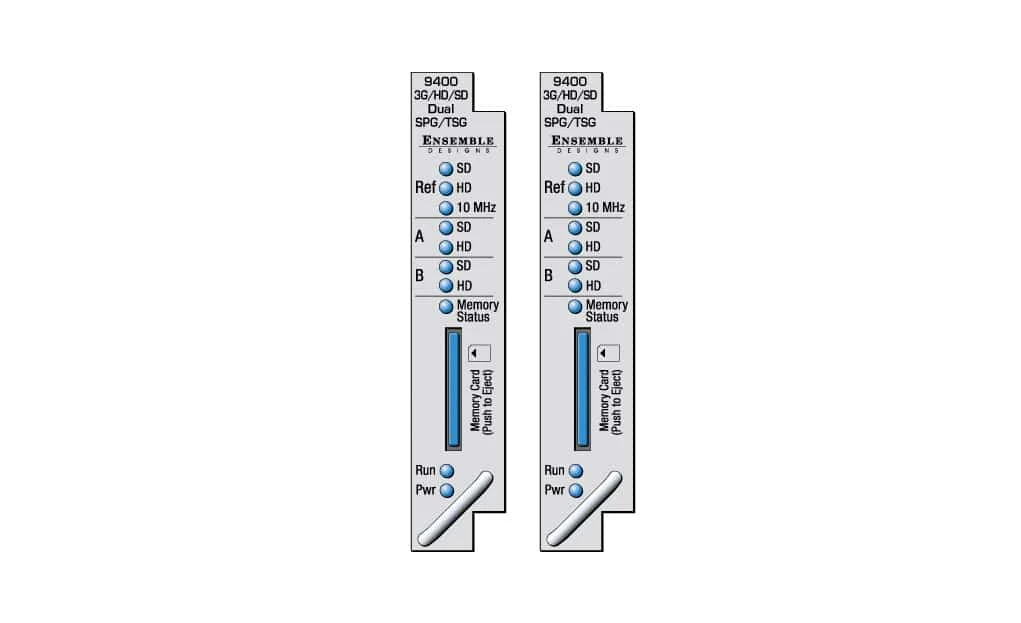

    The P9400-4K SPG/TSG is a full featured Sync Pulse and Test Signal Generator supporting 4K/UHD standards, along with legacy SD and HD signals. Taking just two positions in an Avenue Frame, it’s the perfect solution for broadcast, post, MCR, and remote applications. Operate from internal precision reference, or lock to external reference or GPS. It includes support for AES, Analog, and Embedded audio; ATC, DVITC, VITC, and LTC time code; and CEA 708 Caption Testing. Quad Link outputs support Square Division (SQ) or Two Sample Interleave (2SI) sample distributions. Fully configurable through the Avenue control system.

    Product Documents

    Datasheet

    • Avenue P9400 Cutsheet

    Firmware

    • Avenue 9400 Firmware 2.2.14
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Flexible 4K/UHD Test Signal Generator
    • 4K/UHD/3G/HD/SD SPG & TSG
    • Genlock or stand-alone operation
    • Generates 30+ test signals
    • GPS option
    • Full 16 channels of audio embedding
    • Customizable patterns with user logos
    • Quad Link SQ or 2SI
    • 5-Year Warranty and Free Software Upgrades Forever
    Standards Supported
    • SMPTE 425M-5, Level A (4× 1080p 50, 59.94 Hz)
    Reference Input
    • Number Two: External or Frame Master Reference
    • Signal Type: PAL or NTSC composite video or Tri-Level Sync or 10 MHz 1V P-P sine or square
    • Return Loss: >40 dB (applies to external ref input)
    SDI Output
    • Type: 4 1080p 50, 59.94 Hz Quad Link
    Accuracy
    • Internal Reference: (TCXO) Freq Error <10-7 < ±1 Hz Fsc
    • GPS Option: (Model 7400-GPS) Freq Error <10-12
    Stability
    • Analog Jitter: <1 ns
    • Digital Jitter: <0.2 UI (0.13 UI typical)
    • AES Jitter: <1 ns
    Flash Memory
    • Number: One
    • Type: Secure Digital SD Flash Memory Card
    • Size: 2 GB card included
    General Specifications
    • Power Consumption: 20 watts
    • Temperature Range: 0 to 40°C ambient (all specs met)
    • Relative Humidity: 0 to 95%, noncondensing
    • Altitude 0 to 10,000 ft

    P9400-4K hardware is comprised of two 9400 modules locked together for timing. P9400-4K can be installed in a 1RU or 3RU Avenue frame.

    Refer to 9400 specifications for additional information on:
    • Standards Supported
    • Frame Rate Families
    • Serial Digital Outputs
    • Tri-Level Sync Outputs
    • Composite Outputs
    • AES Audio Outputs
    • Analog Audio Outputs
    • Additional Output Choices

    P9400-4K provides the full feature set of the 9400.

    Product Documents

    Datasheet

    • Avenue P9400 Cutsheet

    Firmware

    • Avenue 9400 Firmware 2.2.14

    Related products you might be interested in
