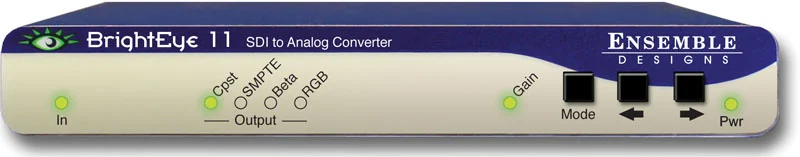

be11_front-800x157be11_front-800x157

BrightEye 11 SD SDI to Analog Converter

BrightEye 11 provides digital to analog video conversion with the full range of analog output formats available: Beta, SMPTE, RGB, and composite (with simultaneous Y/C).

12 bit processing and conversion at 8 x oversampling mean the best looking images possible.

Output format and gain are controlled from the front panel. A status display indicates input presence. Video levels can be adjusted through the BrightEye Control app.

BrightEye 11 is the perfect choice to feed monitors, VTRs, or video projectors.

Product Documents

Datasheet

Contact Sales

Description

  • Use with Monitors, VTRs and Projectors
  • SD SDI Input
  • Analog Composite Output
  • Component, S-Video Output
  • 12 Bit

Additional information

Control

USB
Video Input

SD SDI
Video Output

SD SDI, Analog Component, Analog Composite

Product Documents

Datasheet
