Description
- Timecode Reader
- Timecode Converter
- Timecode Inserter
- LTC, DVITC, ATC, UMID, Ancillary Data
- 3G/HD/SD SDI video
- MTD compatible
- TC_link compatible
- Programmable in/output GPIs

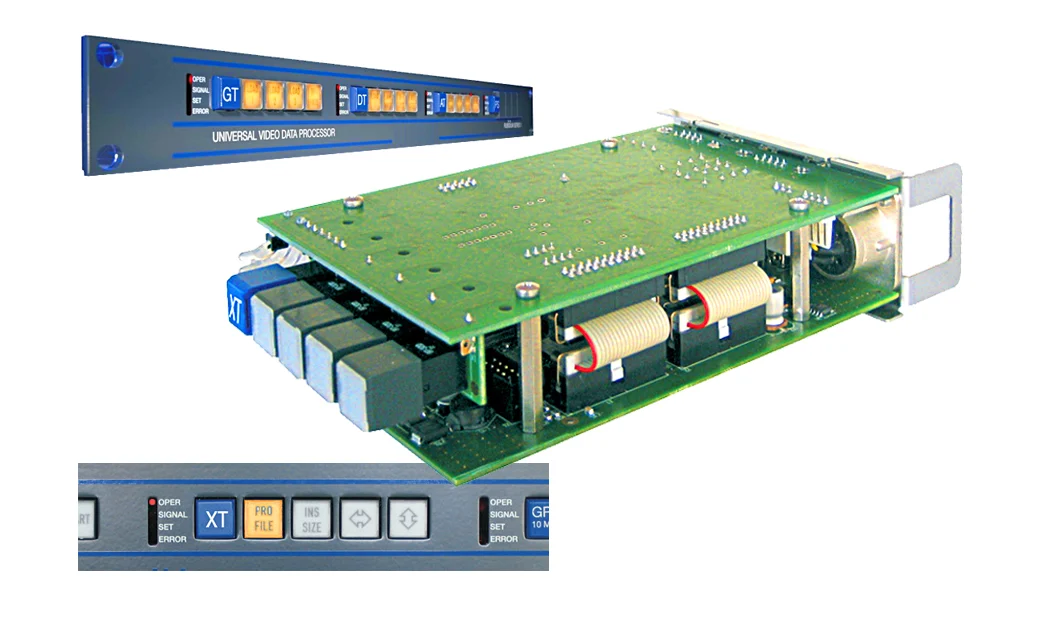

- 4 programmable front profile buttons
The following options enable further functionalities
- Video bypass relay (option B)
- Sony 9P protocol converter (option S)
- Programmable offset (option O)
- Converter biphase/CTL to LTC (option P)

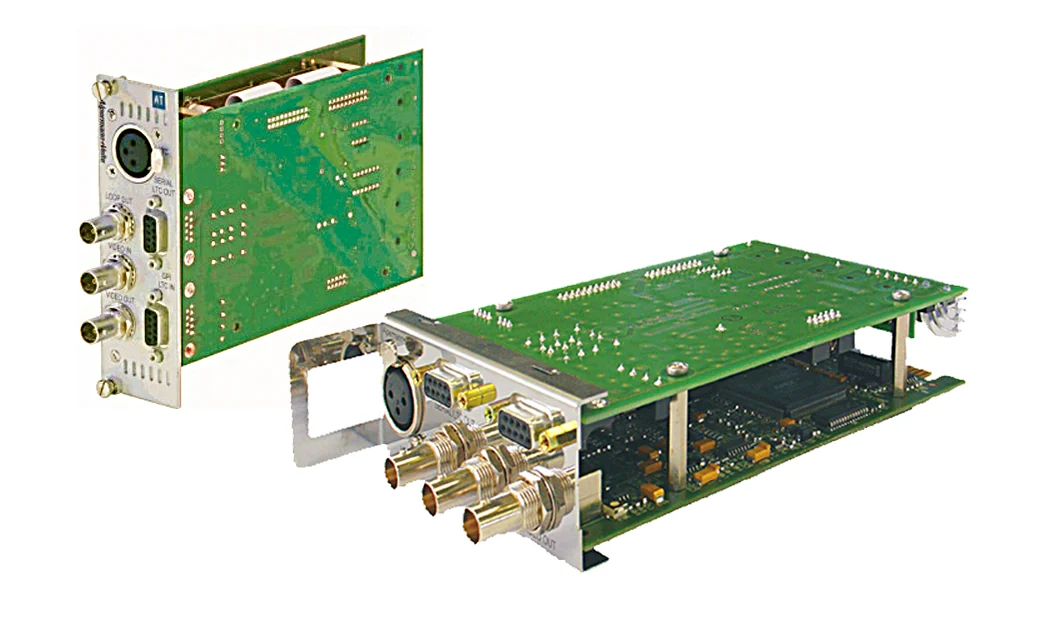

The rear panel provides the following connectives:
- LTC reader and generator
- RS485/422/232 interface, Timecode or inserter data
- 4 GPIOs for status signals, etc.
- Relay contact output, programmable for Timecode zero value, additional failure Signal(s), etc.
