Description
- SFP-347-H-7, 47″ Hybrid Monitor supporting Coax, Fiber & IP connectivity
- Integrated with “PIPM-R-7” Plura IP Platform Module
- Supports 3G SMPTE ST 2110 signals across 10 GigE

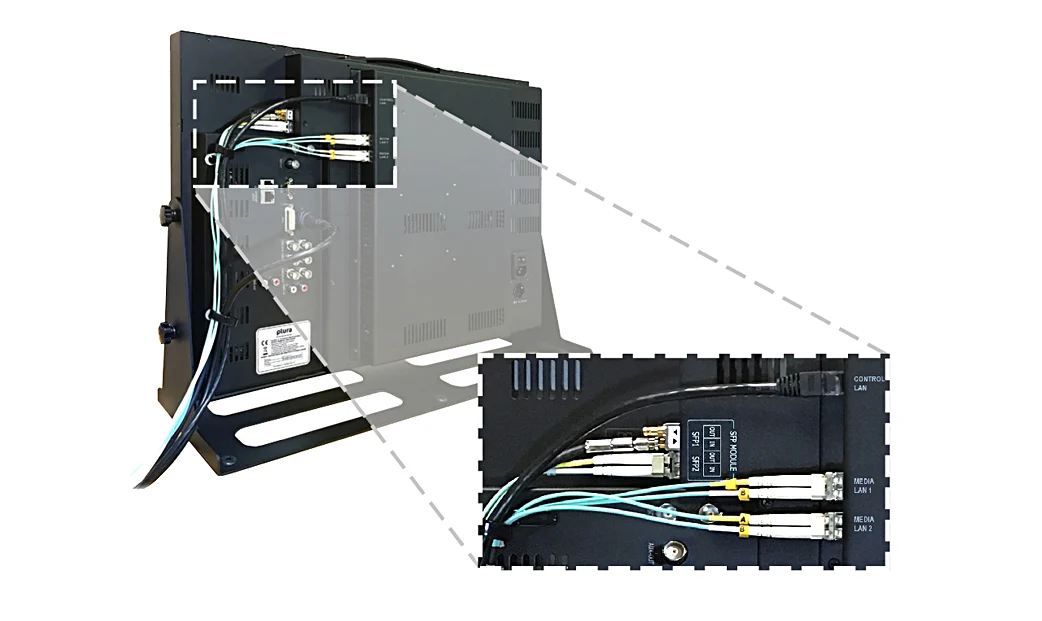

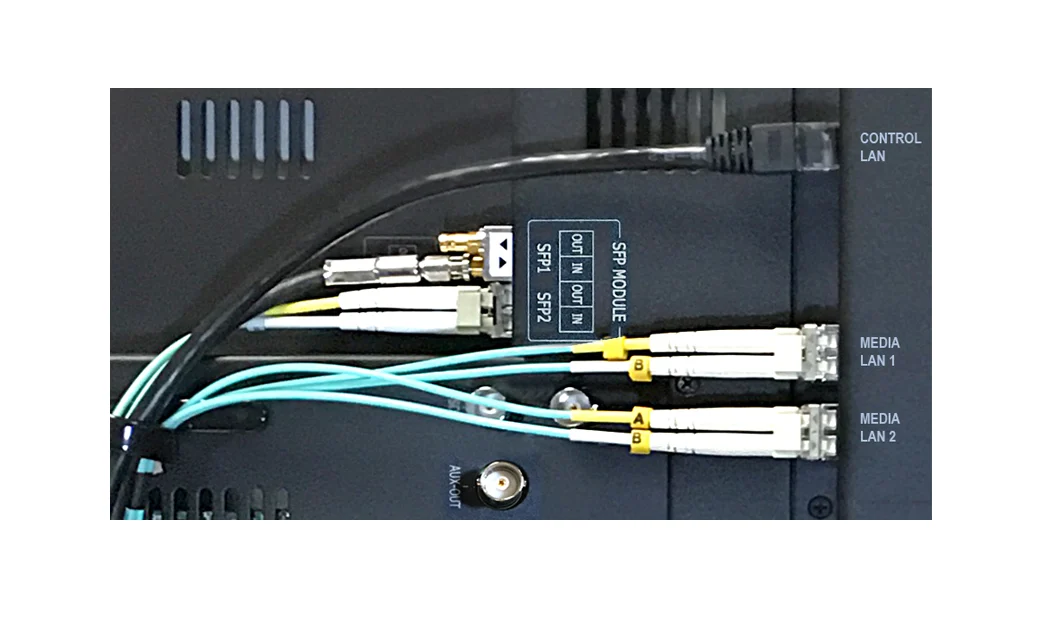

- Features 2x 10 GbE SFP+ cages complying with SMPTE ST 2022-7

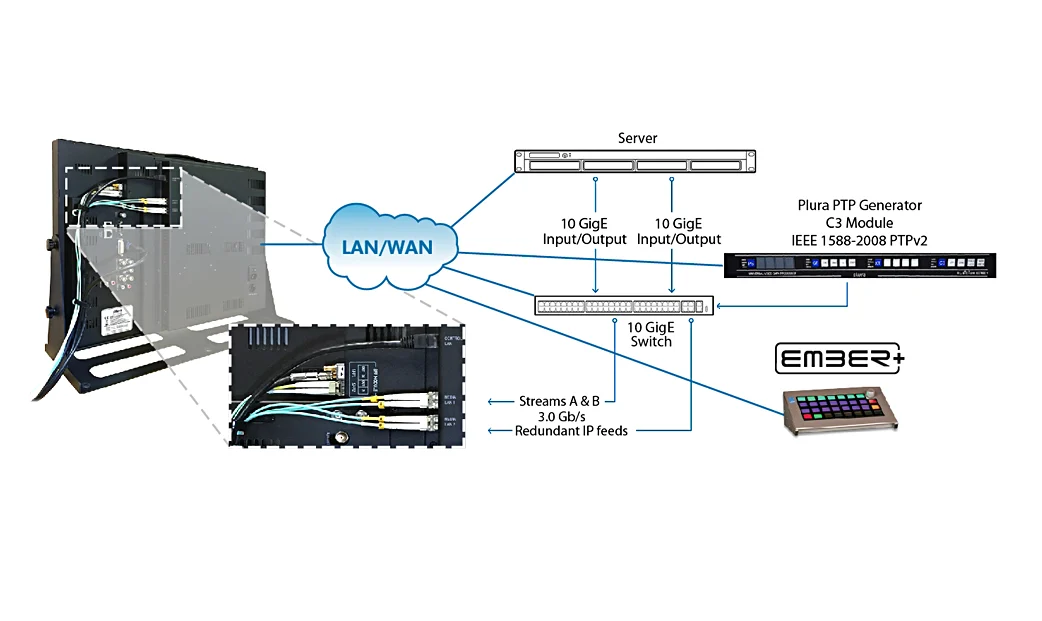

- Providing redundancy protection for critical distribution and monitoring applications “hitless switching”
- Supports Coaxial 3Gb/s BNC I/O connectivity
- Supports Coaxial SFP I/O connectivity
- Supports IP SFP+ over fiber decoding “ST-2110 & ST-2022” with any Third-Party H/W decoder
- 2 x SFP+ cages supporting 10G/3G/1.5G SDI
- 1 x 3G/1.5G Input port
- 2 x 3G/1.5G output ports
- LKFS Audio Loudness logging & measurement
- Built-IN 4 x 4 Crosspoint Solution
- 1 x HDMI, 1 x DVI & other legacy I/O
- 178 degree Viewing Angle Display
- Gamma Selectable ( 0.8 – 3.0)
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration

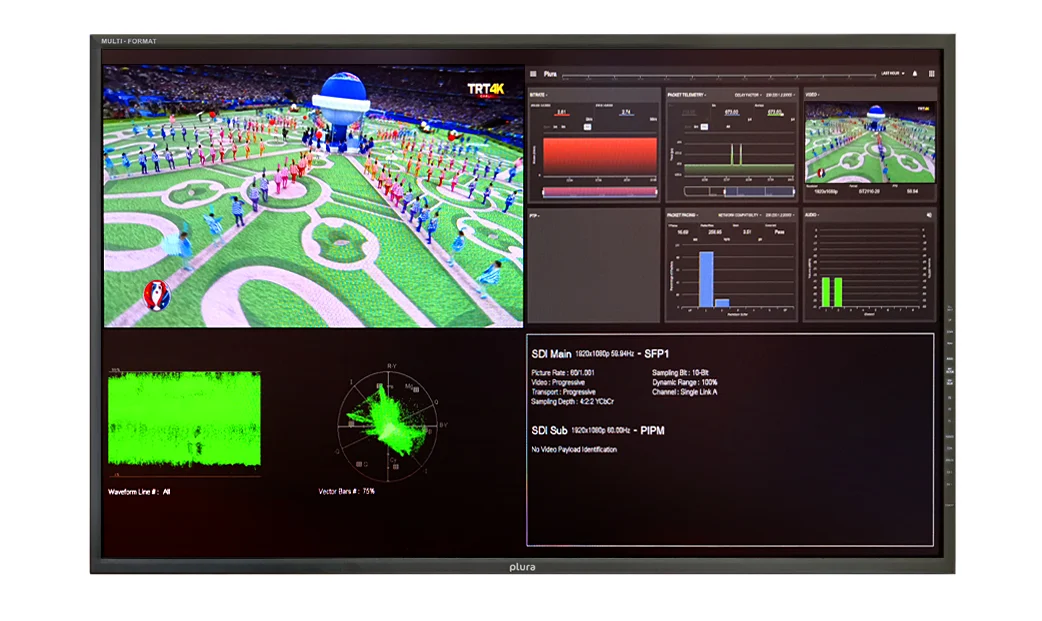

- Display Advanced Waveform & Vector Scope simultaneously with line select
- Various and User defined Markers Display & Safe Area
- Programmable 3 User Front Pushbutton Controls & GPI
- Closed Caption (608/708) – North American Market
- Op42 & OP47 – Teletext line 801 for Australia & New Zealand Market
- Cutting edge De-interlacing and scaling Technology
- Fast Response Time for high motion video
- Internal Monitor Display (IMD)
- Ethernet & RS232 Remote Control
- Ember+ compliant control system capabilities
- Underscan / Overscan / Normal / Zoom
- Pixel to Pixel Mode, Tally, DC operation
- False Color and Peaking Filter / Focus Assist
- Video Range test with adjustable Y & C values
- Display LTC & DIVTC time code with line select
- Embedded Audio input, Digital Audio Decoding
- Internal Pattern Generator and Wall Control System
