Description

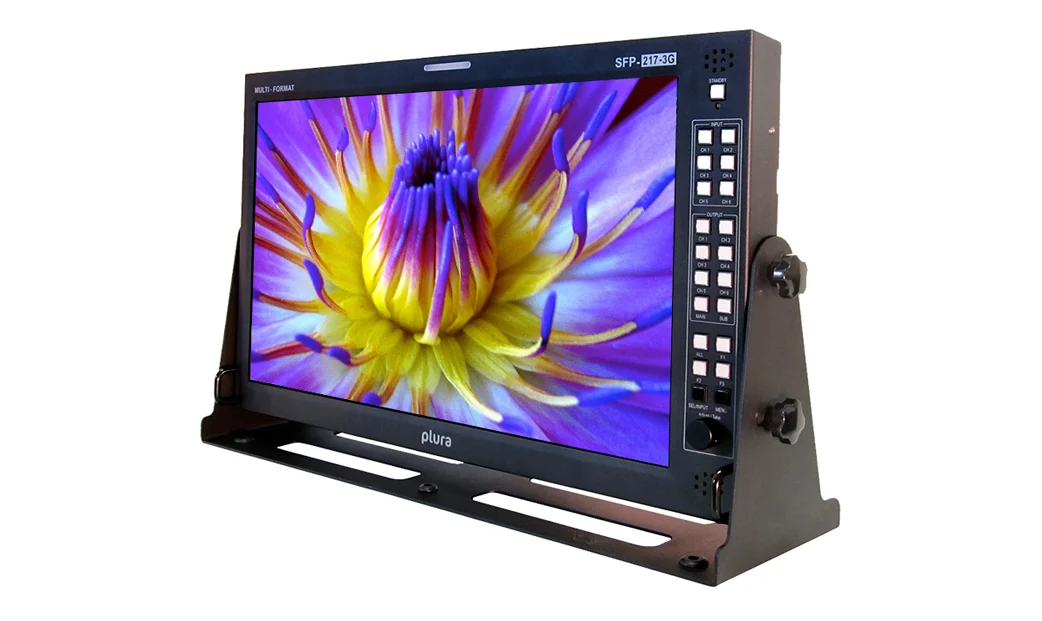

- SFP-217-3G, 17″ Monitor supporting Coax & Fiber connectivity
- 3Gb/s ready – 1080/60P
- LKFS Audio Loudness Monitoring Tool
- Advanced Waveform (Y.Cb.Cr. selectable), Vectorscope
- 4 SFP Slots HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
- Fiber (RX, TX or Transceiver) and Coaxial (Rx, TX or Transceiver) optional connectivity
- SDI to HDMI conversion with an optional SFP module
- Built-IN 6 x 6 Cross Point Switcher
- Inclusive Network Controller PSC-400 with Firmware & Cal. Transfer
- Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
- Cutting edge De-interlacing and Scaling Technology
- Fast Response Time for high motion video
- RGB 10 Bit Digital Signal Processing
- 178° Viewing Angle Display
- Closed Caption (608/708)
- Color Temperature – User, VAR, 11000K, 9300K, 7500K, 6500K, 5000K, 3200K
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Analog & Embedded Audio Input, Digital Audio Decoding
- Built In Stereo Speaker , 16 CH Audio Metering Display
- IMD & Time code display and Wall Control System
- Pixel to Pixel Mode, Tally, DC Operation
- Underscan/ Overscan/ Normal / Zoom
- Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
- Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
- OPTIONS: Battery Mount
