Description

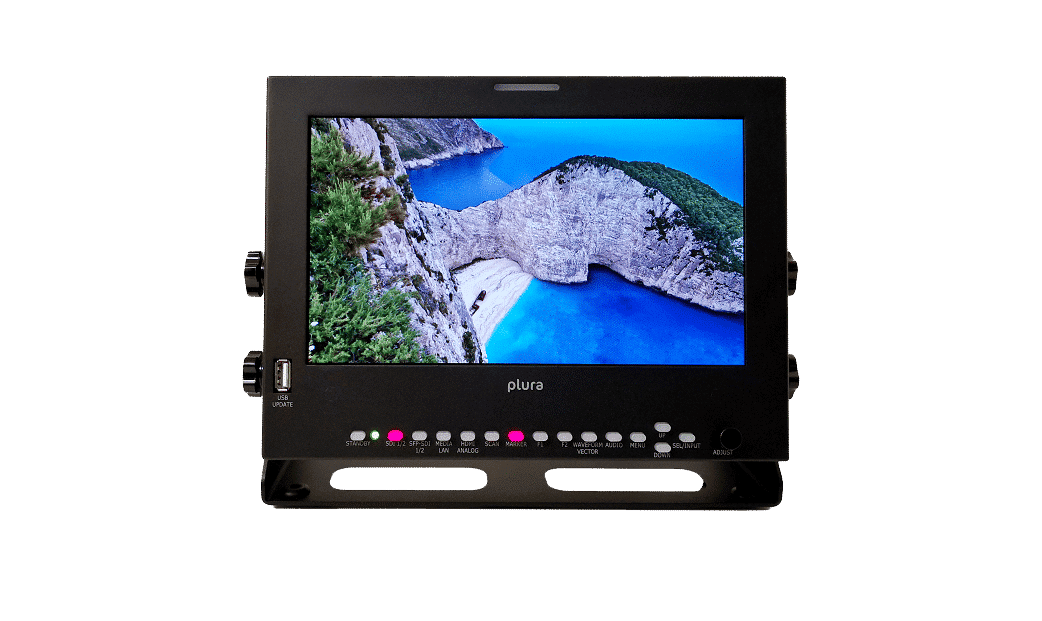

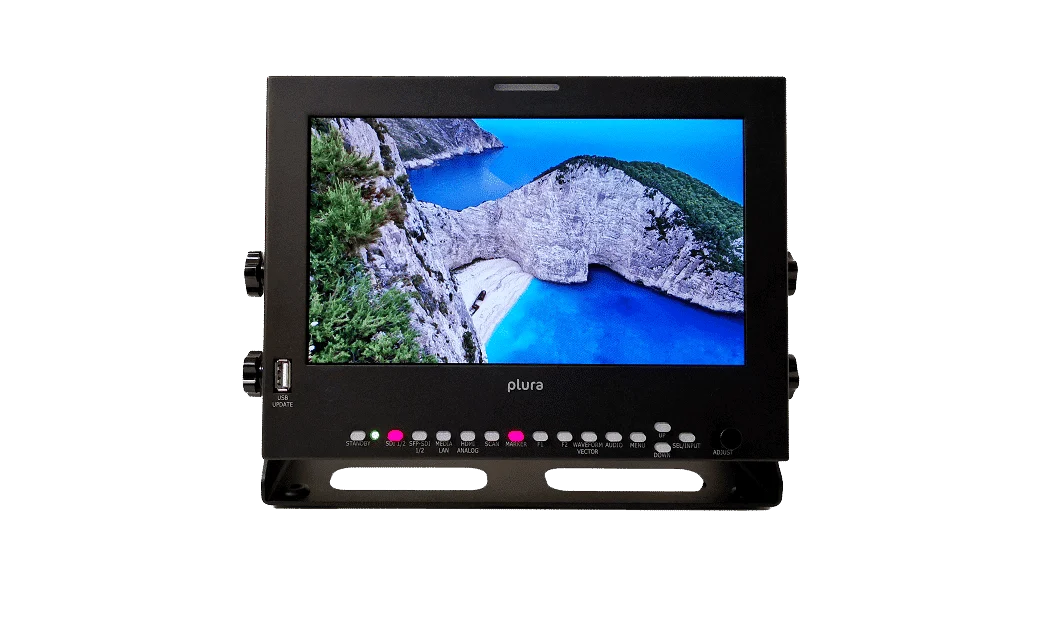

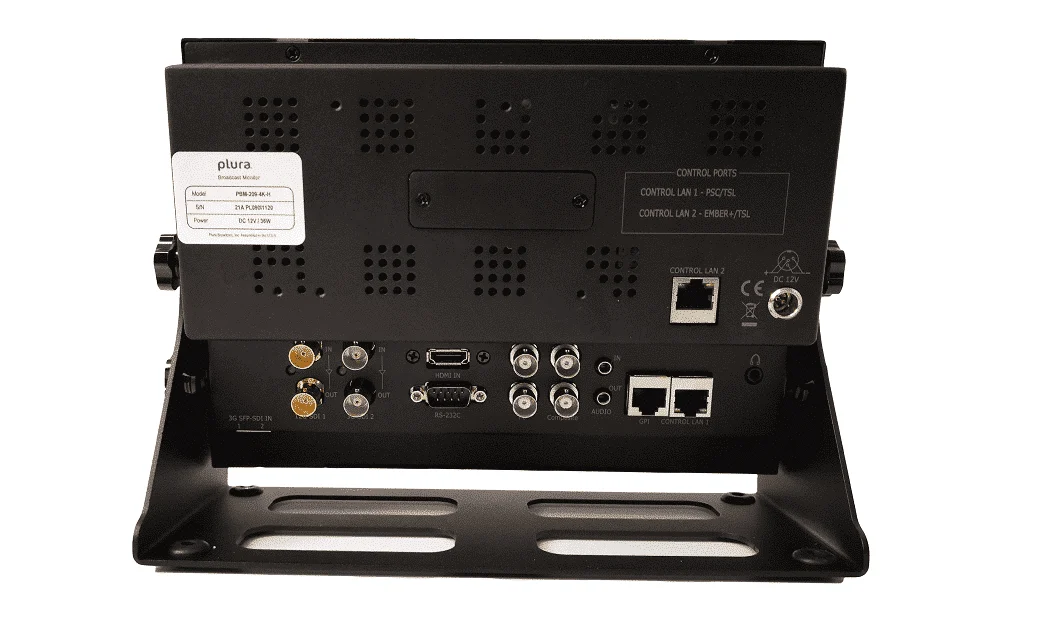

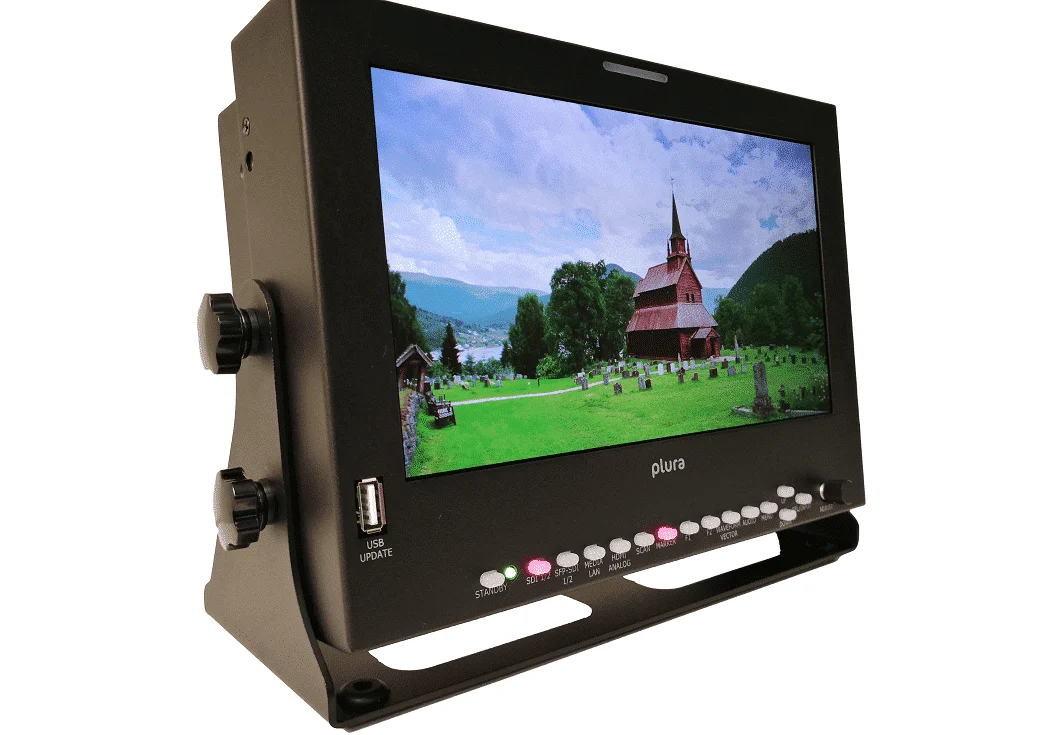

- PBM-209-4K-H, 9″ FHD 1000 nit TRUE HDR Panel
- Supports up to 4096 x 2160 resolutions
- Supports Coaxial 12G/3G/1.5G BNC I/O connectivity
- Supports Coaxial SFP I/O connectivity
- 1 x SFP+ cages supporting 3G/1.5G SDI
- 1 x 12G/3G/1.5G input port
- 1 x 3G/1.5G input port
- 1 x 12G/3G/1.5G output port
- 1 x 3G/1.5G output port
- 1 x HDMI 1.4
- 8 bit panel color depth
- HDR (High Dynamic Range) capabilities
- PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
- RGB 12 bit Digital Signal Processing
- 178 degree Viewing Angle Display
- Gamma Selectable ( 0.8 – 3.0)
- Color Temperature – User, VAR, Adjustable (9300K TO 3200K)
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- 3D LUT (ITU-R, BT.2020, D-Cinema, BT.709)
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Various and User defined Markers Display & Safe Area
- Programmable 3 User Front Pushbutton Controls & GPI
- Closed Caption (608/708) – North American Market
- Teletext 801 & Subtitle OP-47 – Australia & N.Z. Market
- Cutting edge De-interlacing and scaling Technology
- Ember+ compliant control system capabilities
- Fast Response Time for high motion video
- Internal Monitor Display (IMD)
- Ethernet & RS232 Remote Control
- Pixel to Pixel Mode, Tally, DC operation
- False Color and Peaking Filter / Focus Assist
- Video Range test with adjustable Y & C values
- Display LTC & DIVTC time code with line select
- Embedded Audio input, Digital Audio Decoding
- Internal Pattern Generator and Wall Control System
