Description

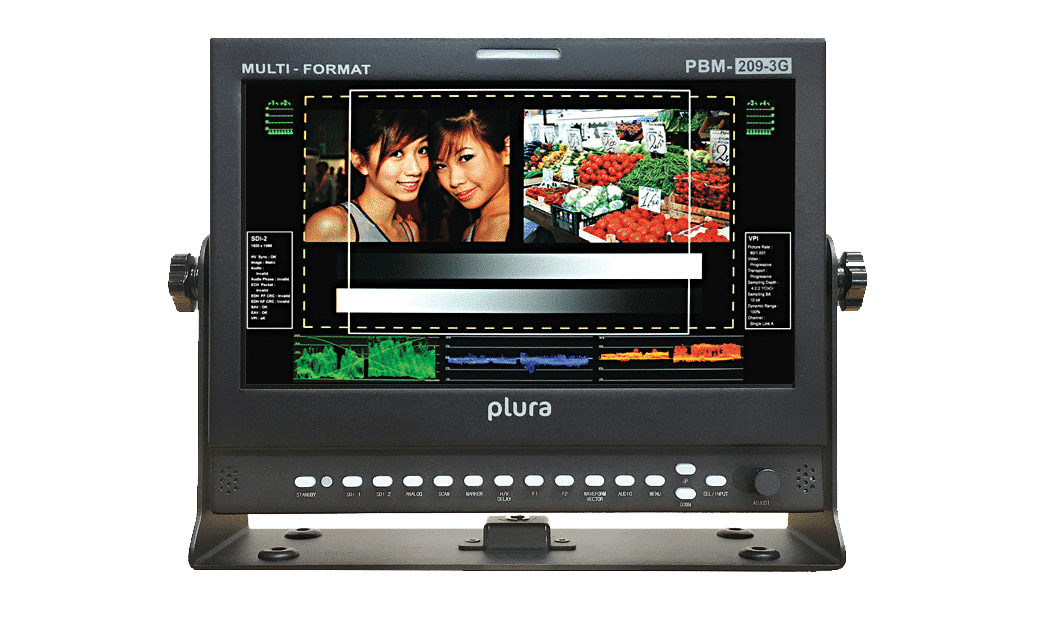

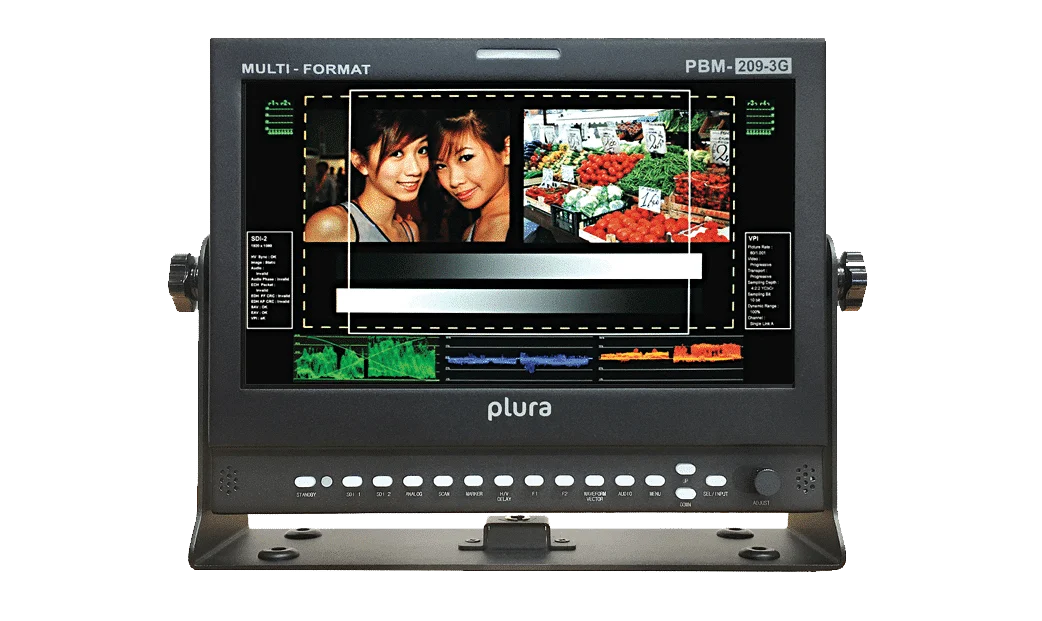

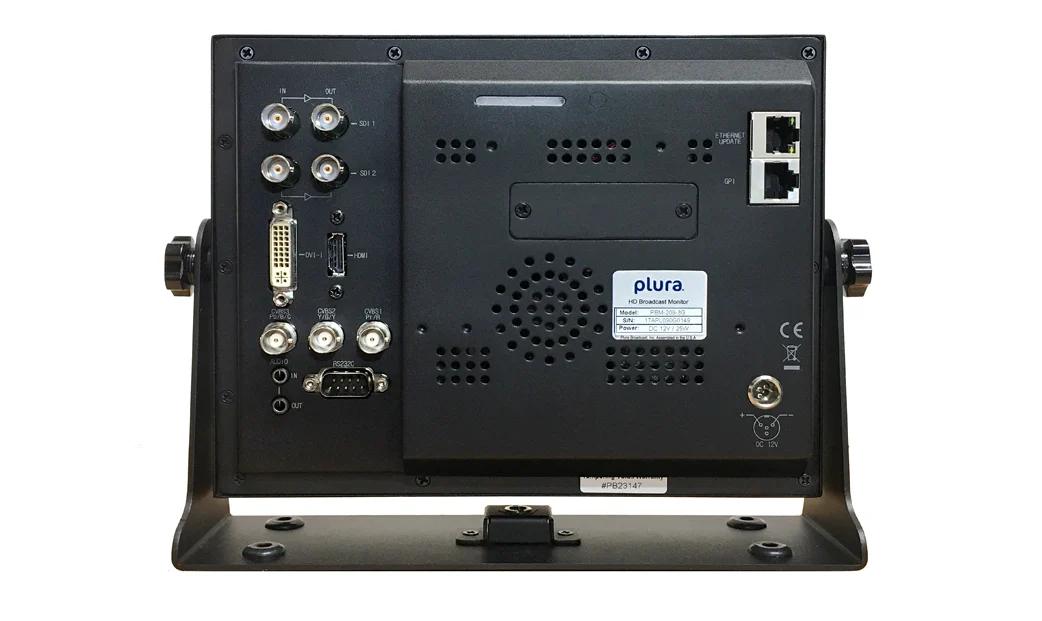

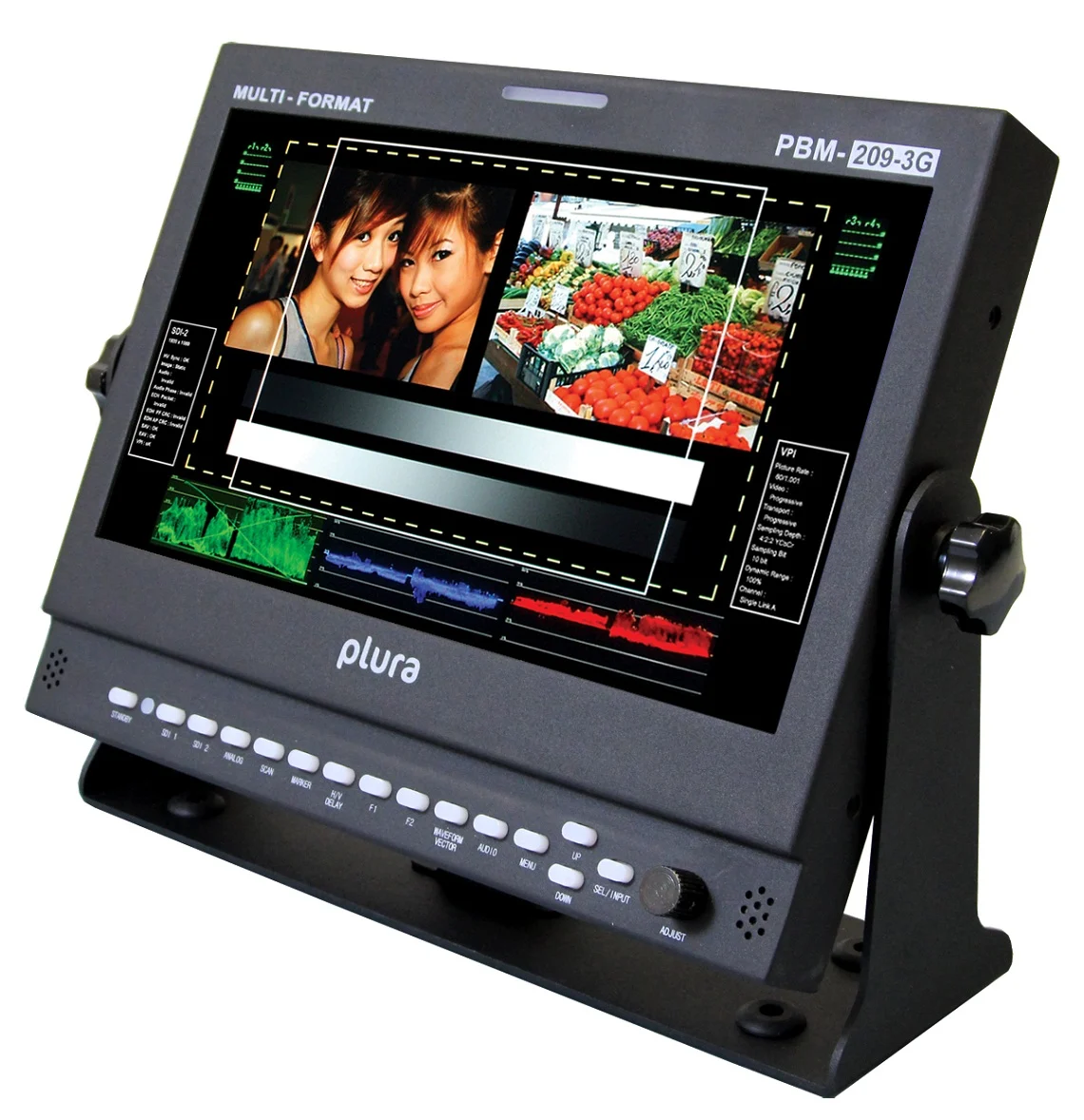

- PBM-209-3G, 9” Portable Monitor
- 3Gb/s ready – 1080/60P
- 2 x Auto-detect HD-SDI, SDI with active loops (3Gb/s / 1.485Gb/s / 270Mb/s)
- Dual HD SDI YPbPr 4:2:2 – Dual HD SDI YPbPr/RGB 4:4:4 & 2K
- RGB, YUV, Y/C, Composite, UXGA, DVI(DHCP) & HDMI(DHCP)
- Complies with EBU-3320 TECH, SMPTE-C and ITU-R BT.709 Standards
- (ICAC) – Plura Intelligent Connection for Alignment & Calibration
- Closed Caption (608/708) – North American Market
Teletext 801 & Subtitle OP-47 – Australia & NZ Market - Cutting edge De-interlacing and Scaling Technology
- Fast Response Time for high motion video
- RGB 10 Bit Digital Signal Processing
- 178° Viewing Angle Display
- Internal Monitor Display (IMD)
- Underscan/ Overscan/ Normal / Zoom
- Pixel to Pixel Mode, Tally, DC Operation
- False Color and Peaking Filter / Focus Assist
- Video Range Test with adjustable Y & C values
- Display LTC & DVITC time code with line select
- Internal Pattern Generator and Wall Control System
- Built In Stereo Speaker , 16 CH Audio Metering Display
- Analog & Embedded Audio Input, Digital Audio Decoding
- Color Temperature – User, VAR, Adjustable (11000K TO 3200K)
- Various and User defined Markers Display, Safe Area in HD & SD
- Picture and Picture (PaP), Picture in Picture (PiP) display / Blend
- Intuitive OSD Display, Graphic based, 6 Languages (UNICODE System)
- Display Advanced Waveform & Vector Scope simultaneously with line select
- Programmable Front Pushbutton Controls, GPI & RS232 Remote Control
- OPTIONS: Battery Mount, Carry Case, Rack mount & Sunvisor
