Home  //  Timing  //  Rubidium  //  Generators  //  RUB G3
G3-FrontG3-Front
  • RUB G3

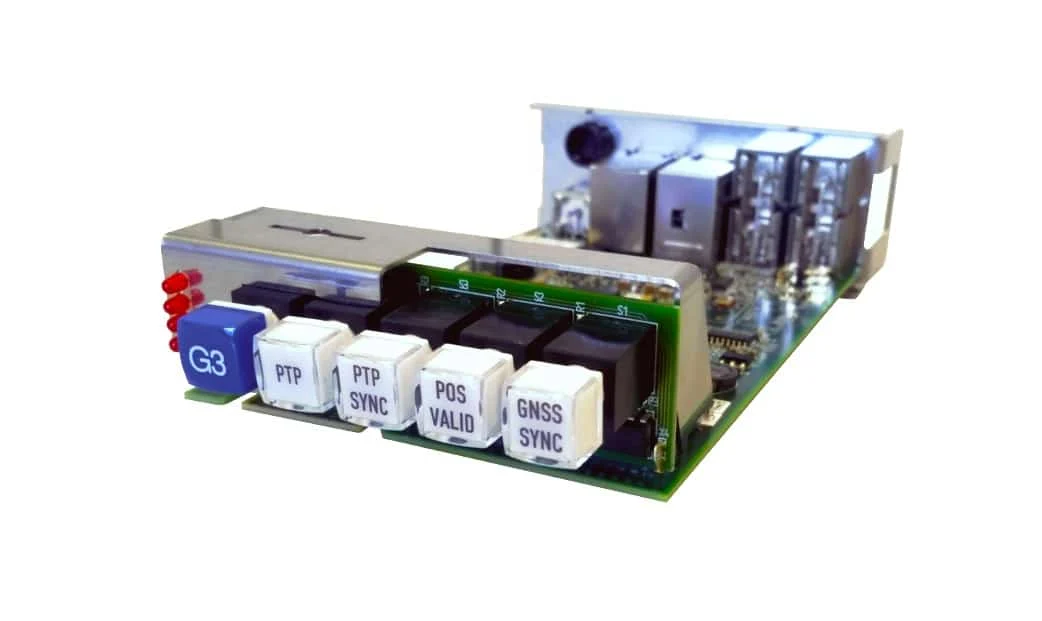

    The RUB G3 is a PTPv2 Grandmaster with integrated multi GNSS receiver.

    The RUB G3 module conforms to SMPTE 2059-2 standards & IEEE 1588-2008 PTPv2 profile.

    The RUB G3 is the one of the most accurate tools to generate PTP signals in the broadcast industry.

    The RUB G3 is part of the RUBIDIUM SERIES 1 modular system which offers flexibility, future proof and longevity.

    Product Documents

    Datasheet

    • RUB PTP G3 Datasheet

    Manuals

    • RUB PTP G3 Manual

    Firmware

    • RUB G3 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Multi-GNSS receiver
    • Equipped with a 2nd antenna input and a 2nd receiver as an option
    • In case of double receiver assembly, automatic changeover is applicable

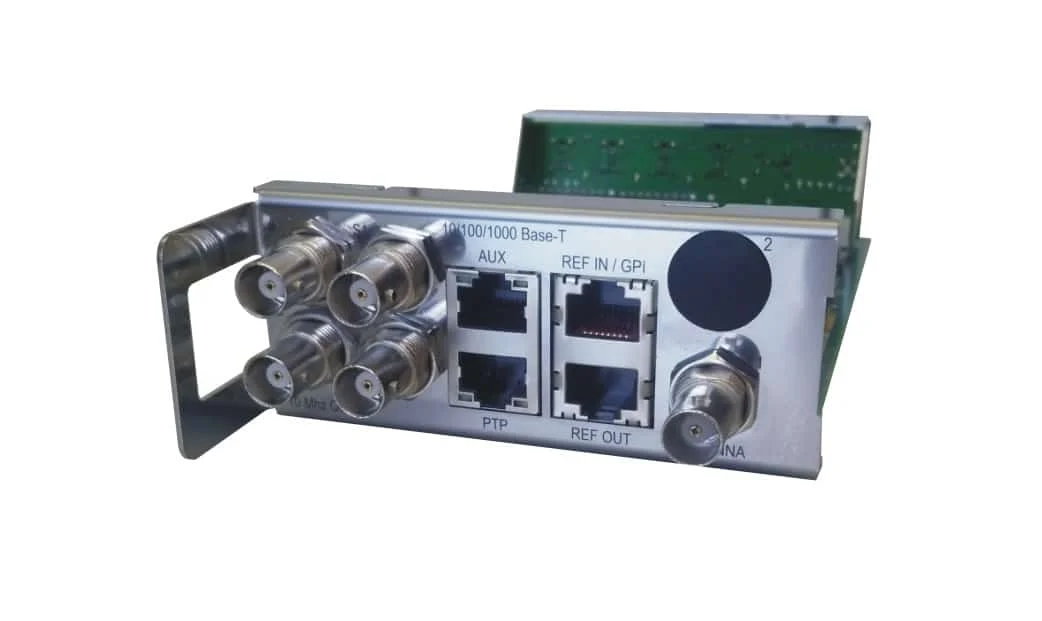

    • 10/100/1000 Base-T PTP Ethernet port
    • Compatible with SMPTE 2059-2
    • Two 10 MHz sine wave BNC outputs
    • Two programmable square wave BNC outputs
    • PPS, time and date data string reference outputs
    • Additional unbalanced and balanced PPS outputs
    • Leap year/second compatible
    • SNMP ready
    • Hot Swappable
    • Failure Relay
    • Compatible with TC_link
    • Integrated Surge Voltage Protector

    Additional information

    Weight 0.66 lbs / 0.3 kg
    Dimensions 4.1 × 1.7 × 6.5 in / 104.1 × 43.2 × 165.1 mm
    Generate

    PTP

    Reference Type

    GPS, PTP

    Housing

    Modular

    Features

    IEEE 1588-2008 PTP v2

    Product Documents

    Datasheet

    • RUB PTP G3 Datasheet

    Manuals

    • RUB PTP G3 Manual

    Firmware

    • RUB G3 Firmware

    Software Tools

    • Rubidium Configuration and Status Monitor PC Programs
    • USB Driver for (RUBIDIUM, TCC70 and TC60)

    Additional Resources

    • Timing Accessories
    • Plura Products Catalog
