BrightEye Rack Mount and Power Supplies

BrightEye Rack Mount

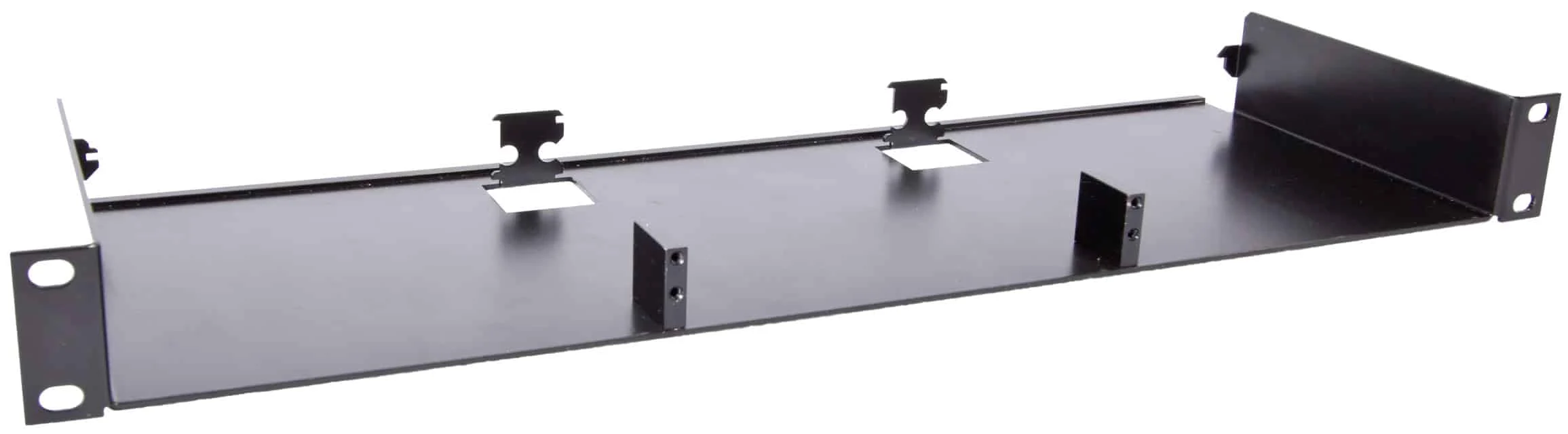

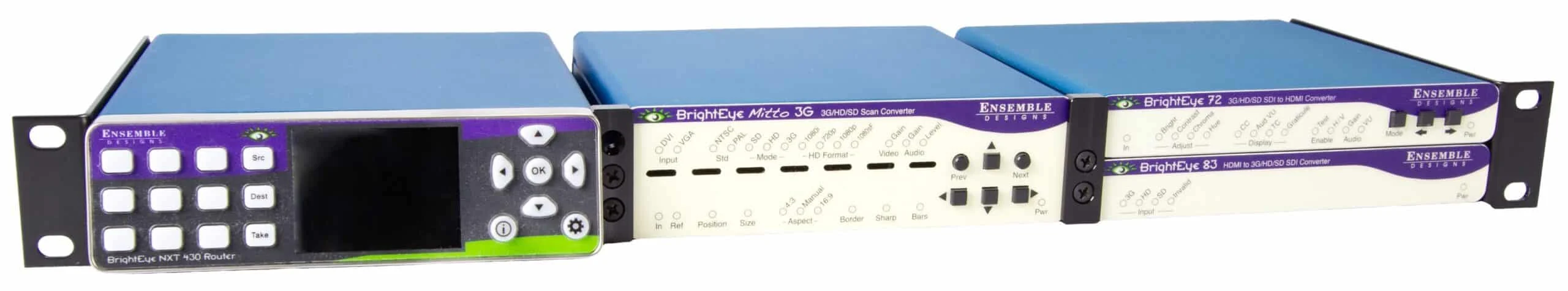

You can install 3 to 6 BrightEyes with the optional BERKMT-Full rack mount kit. 6 single high units or 3 double high units fit in just 1RU.

BrightEye Individual Power Supply

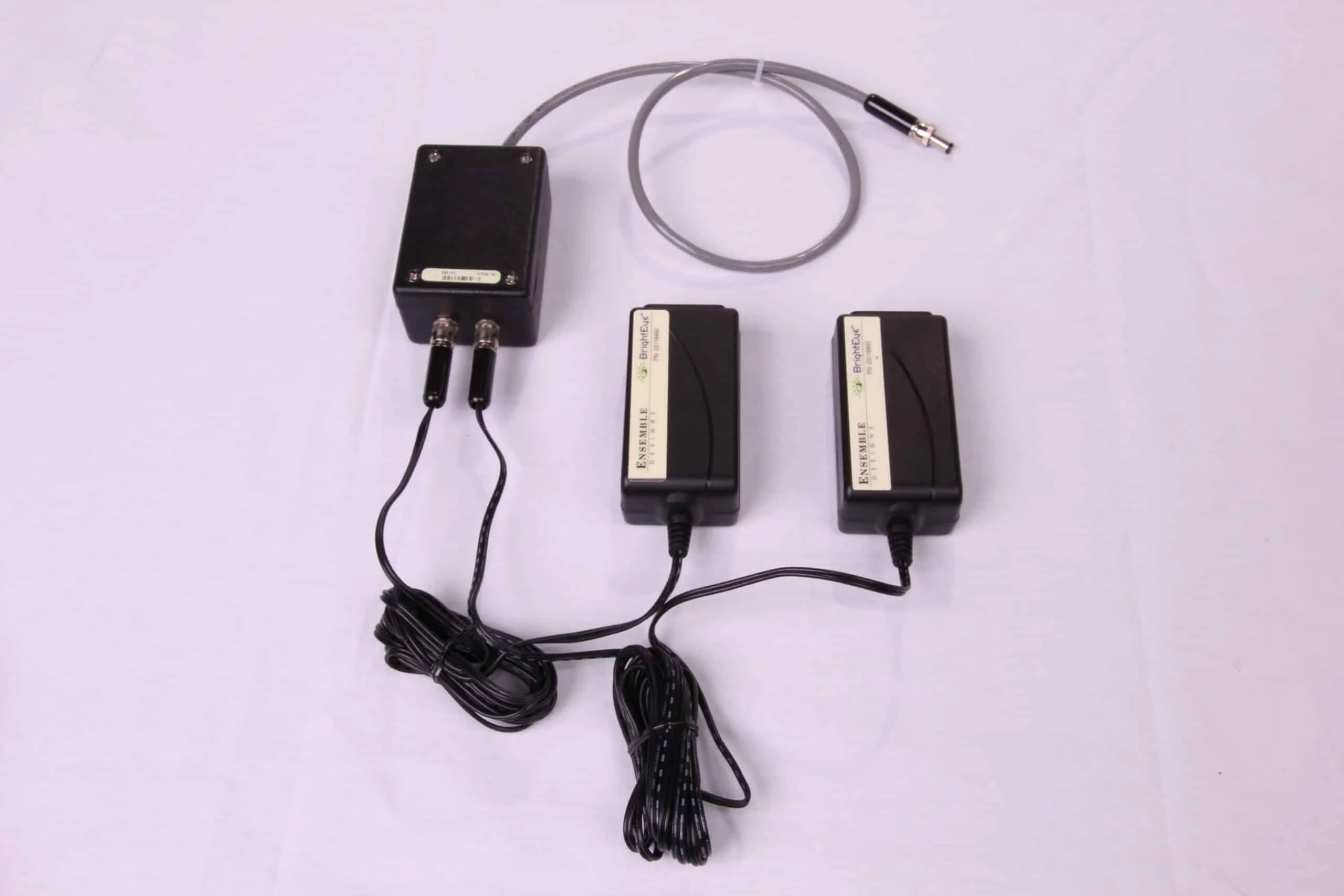

Power a single BrightEye unit with this universal (100/240V, 50/60Hz) power supply.

Power supply p/n 23118900 2.5A supply is for use with:
BrightEye models 1 – 94; BrightEye Mitto; Avenue 5830 Router Control Panel; Avenue Tabletop Control Panel; and Avenue GPI Control Panel

Power supply p/n 23600106 5A supply is for use with:
BrightEye NXT; Avenue 1RU Frame; and BEPS6

Spider Power Supply – BEPS6

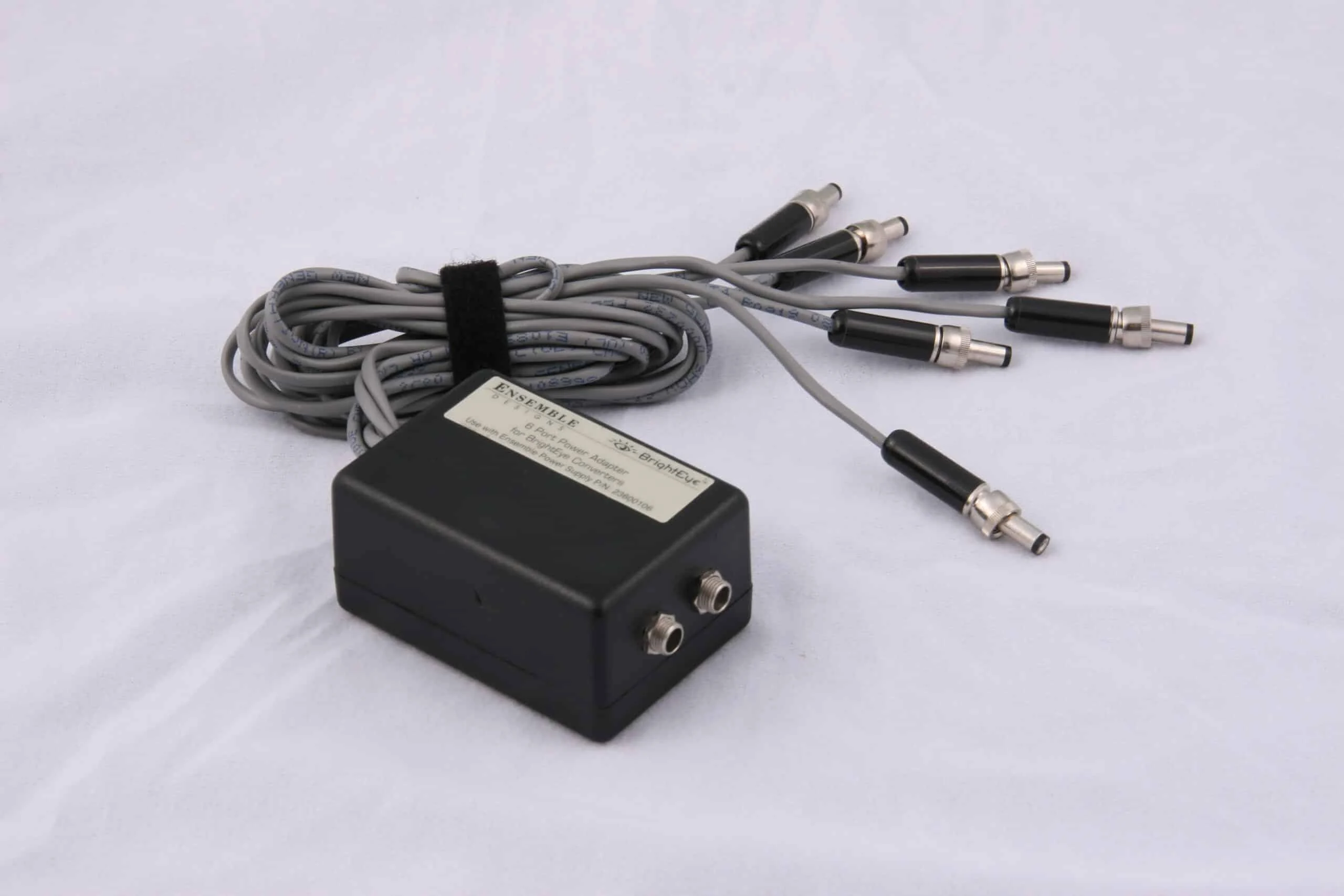

Power up to 6 BrightEyes with this universal (100/240V, 50/60Hz) power supply. Redundant power supply for Spider available, BEPS6-RP. (Powers up to 6 BrightEye models 1 – 94 and Mitto; not for use with BrightEye NXT)

Product Documents

Manual

Contact Sales

Description

  • Simple Rackmount Solution
  • Up to 6 BrightEye devices in 1RU
  • All connectors face rear of rack
  • Front of rack control and status
