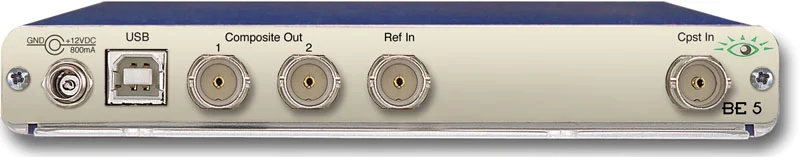

be05_rear-800x157be05_rear-800x157

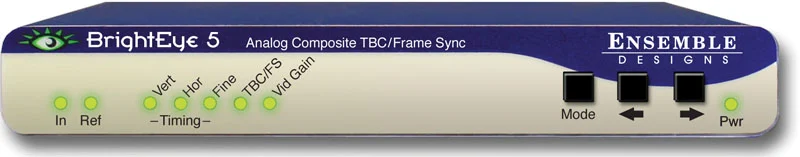

  • BrightEye 5 Analog Composite TBC and Frame Sync

    BrightEye 5 is a Time Base Corrector with analog composite inputs and outputs. 12 bit digital signal processing ensures the best signal handling and a solid output. BrightEye 5 will time base correct signals from analog sources such as consumer VCRs, cameras and noisy microwave receivers.

    The analog input is converted at 12 bits of resolution for digital processing. The signal is time base corrected and frame synchronized to the reference input and converted back to analog for output. BrightEye 5 auto detects the video standard of the input (PAL or NTSC).

    Basic controls are provided on the front panel. With the BrightEye Control app, you can control video proc functions; Gain, Chroma, Pedestal, and Hue. The vertical interval can be passed or blanked.

    Product Documents

    Datasheet

    • BE5 Data Sheet

    Manual

    • BrightEye 5 Manual
    Contact Sales
    • Highlights
    • Specifications
    • Product Downloads

    Description

    • Use with VCR’s, cameras, satellite receivers
    • Analog Video Inputs and Outputs
    • TBC and Frame Sync
    • 12 bit processing
    Analog Video Input
    • Number: One
    • Signal Type: NTSC, PAL Composite
    • Impedance: 75 Ω
    • Return Loss: >40 dB, DC to 5.5Mhz
    • Input DC: +/-1 volt DC
    • Input Hum: <100 mV
    Reference Input
    • Number: One
    • Type: 1 V P-P Composite Video, PAL or NTSC
    • Impedance: 75 Ω
    • Return Loss: >40 dB
    Performance
    • Frequency Response: ±0.1 dB , 0 to 5.5 MHz
    • K Factor: <1%
    • ScH Phase Error: <±2°
    • Differential Phase: <1°
    • Differential Gain: <1%
    • Signal to Noise: >65 dB
    • Timing Window: Infinite (with respect to reference)
    • Output ScH: Phase matches reference
    • Timing Resolution: Adjustable to within 1° of subcarrier
    Analog Video Output
    • Number: Two
    • Type: Composite PAL or NTSC (follows input)
    • Return Loss: >40 dB
    • Output DC: <100 mV
    General Specifications
    • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
    • Power: 12 volts, 4 watts (100-230 VAC modular power supply)
    • Temperature Range: 0 to 40° C ambient
    • Relative Humidity: 0 to 95° non-condensing

    Product Documents

    Datasheet

    • BE5 Data Sheet

    Manual

    • BrightEye 5 Manual
