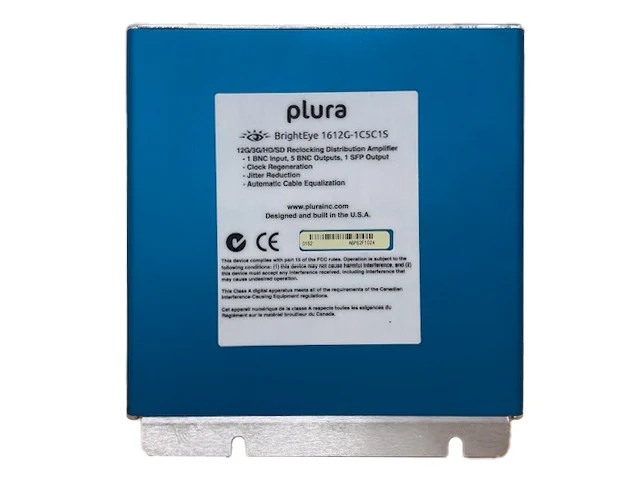

BrightEye 1612G 12G/3G/HD/SD/ASI Distribution Amplifier

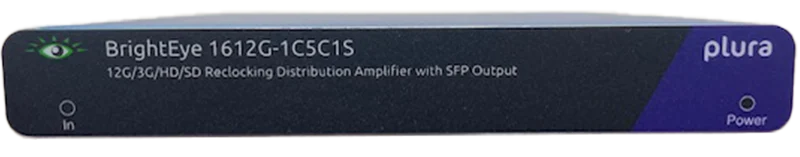

BrightEye 1612G 12G/3G/HD/SD/ASI Distribution Amplifier - Image 2
BrightEye 1612G 12G/3G/HD/SD/ASI Distribution Amplifier - Image 3

BrightEye 1612G 12G/3G/HD/SD/ASI Distribution Amplifier

The BrightEye 1612G is a series of high-performance re-clocking distribution amplifiers which can be Powered by USB-Batterypack and designed for reliable signal delivery across 4K/UHD, FHD, SD-SDI, and ASI workflows. It is available in flexible combinations of BNC coaxial and SFP fiber inputs and outputs to suit various broadcast and professional media infrastructures.

The series supports 12 Gb/s, 3 Gb/s, and 1.5 Gb/s high-definition signals, as well as 270 Mb/s standard-definition and ASI signals. All signals are equalized, re-clocked, and delivered to the outputs.
Available models include:

– 1612G-1C6C – Coaxial Input and Outputs
– 1612G-1C5C1S – Coaxial Input with Coaxial and SFP Outputs
– 1612G-1S6C- SFP Input with Coaxial Outputs
– 1612G-1S5C1S- SFP Inputs with Coaxial and SFP Outputs

Contact Sales
BrightEye 1612G 12G/3G/HD/SD/ASI Distribution Amplifier
Datasheet Contact Sales

Highlights

  • Versatile Integration: Use with video converters and TSGs to increase output capacity.
  • Broad Signal Support: Compatible with digital UHD, FHD, and SD signals.
  • 3G HD Support: Full support for Level A and Level B.
  • ASI Support: DA functionality for ASI signals.
  • Audio Integrity: Passes all embedded audio.
  • Signal Processing: Includes clock regeneration, jitter reduction, and automatic cable equalization.
  • Convert to/from SFP fiber with extra outputs.
  • Supports signal conversion via SFP modules
  • Rack mount Solution Available (6 units in 1RU!)
  • Pair with other BrightEye devices for signal distribution.
  • Dual Power Ports: Equipped with both USB-C (5V) and Mini-XLR (12V) inputs.
Serial Digital Input
    • Number: One
    • Signal Type:
      12 Gb/s 4K/UHD Serial Digital (SMPTE 2082M)
      3.0 Gb/s HD Serial Digital (SMPTE 424M, 425M)
      1.5 Gb/s HD Serial Digital (SMPTE 274M, 292M or 296M)
      270 Mb/s SD Serial Digital
    • Impedance: 75 Ω
    • Return Loss:
      Better than 15 dB from 1.5 GHz to 3 GHz
      Better than 10 dB from 3 GHz to 6 GHz
      Better than 10 dB to 4 dB up to 12 GHz
    • Max Cable Length:
      300 meters for 270 Mb/s
      100 meters for 1.5 Gb/s
      70 meters for 3.0 Gb/s (Belden 1694A)
      75 meters for 12.0 Gb/s (Belden 4694R)
    • Automatic Input Cable Equalization
Serial Digital Output
  • Number: Six
  • Signal Type: 12G/3G/HD/SD/ASI Serial Digital follows input
  • Impedance: 75 Ω
  • Return Loss: Better than 15 dB from 1.5 GHz to 3 GHz, 10 dB from 3 GHz to 6 GHz, and 10 dB to 4 dB up to 12 GHz
  • Output DC: None (AC coupled)
General Specifications
  • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
  • Power: 12 volts, 7 watts (100-230 VAC modular power supply)
  • Temperature Range: 0 to 40° C ambient
  • Relative Humidity: 0 to 95° non-condensing
