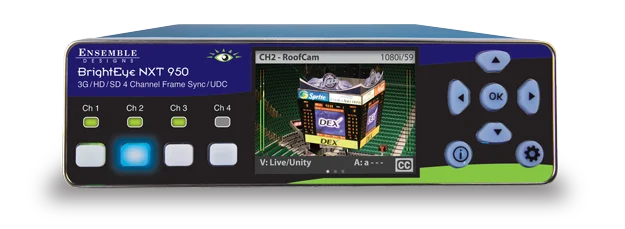

be_nxt_950_front-625x229be_nxt_950_front-625x229

BrightEye NXT 950 4 Channel SDI Frame Sync & U/D/C

The BrightEye NXT 950 Frame Synchronizer packs a lot of features in a tiny package. Frame Synchronization and Format Conversion, with 16 channels of embedded Audio. The NXT 950 has four independent frame synchronizers. Each supports automatic input format detection and conversion to desired output format. Adjust video and chroma gains with the built-in Proc Amp. Color Correct to compensate for input material or to match projectors and monitors. Adjust levels and swap/mix channels in Embedded Audio. Even embedded surround sound (Dolby, AC-3) is synchronized from input to output.

Control the Frame Syncs and monitor each channel’s input and output from the front panel, or through the interactive Web interface. Rackmount up to three NXT 950s in 1RU for the ultimate processing density.

Product Documents

Datasheets

Contact Sales

Description

  • Amazing Features – And Amazingly Compact
  • Web Interface with Video Proxies
  • Automatic Format and Frame Rate Conversion
  • From SD to 4K, and Everything In-between
  • 4K support as a quad cable frame sync
  • Video Proc Amp and Color Correction
  • Crop and Scale
  • Audio Channel Swap and Level Adjust
  • SFP ports for HDMI, Fiber, Composite, or additional SDI I/Os
  • Front Panel Live Monitor
  • Monitor Pre- and Post-Processed Signals

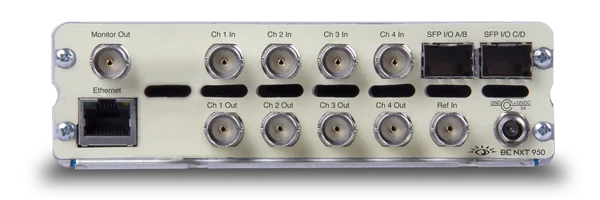

Serial Digital Inputs
  • Number: Four
  • Type:
    • 270 Mb/s SD SDI SMPTE 259M
    • 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M
    • 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M
  • Impedance: 75 Ohms
  • Return Loss: > 15 dB
  • Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s
  • Cable EQ Automatic
4K Inputs
  • Number: One
Serial Digital Outputs
  • Number: Four
4K Outputs
  • Number: One
Monitor Output
  • Number: One
  • Type:
    • 270 Mb/s SD SDI SMPTE 259M
    • 1.485 Gb/s HD SDI SMPTE 274M, 292M, 296M
    • 2.97 Gb/s HD (3G) SDI SMPTE 424M, 425M
  • Impedance: 75 Ohms
  • Return Loss: > 15 dB
  • Cable Length: 300 meters for 270 Mb/s, 100 meters for 1.485 Gb/s, 70 meters for 2.97 Gb/s
SDI Standards Supported – for both Input and Output
  • 1080i 50, 59.94 or 60 Hz, SMPTE 274M -4,5,6
  • 720p 50, 59.94 or 60 Hz, SMPTE 296M -1,2,3
  • 1080p 23.98, 24 or 25 Hz, SMPTE 274M -9,10,11
  • 1080p 50, 59.94, 60 Hz, SMPTE 424M, 425M, Level A
  • 1080sF 23.98, 24 or 25 Hz, RP211 -14,15,16
  • 625i 50
  • 525i 59.94
SFP (Small Format Pluggable) Interfaces:
  • Number: Two
  • Ports: HDMI: One per SFP
  • SDI, Fiber: Two per SFP
  • IP Encapsulate (SMPTE 2022, and more): One per SFP
  • Usage: Assignable to Channel Input or Output
  • As Input: in place of SDI or HDMI
  • As Output: in addition to SDI
Frame Synchronizers
  • Number: Four
  • Range: Infinitely adjustable in H and V
Format Conversion
  • Integrated with Frame Synchronizer
  • Automatic conversion from any input to configured output format
  • Audio Synchronization
  • Sample Rate Conversion of Embedded PCM Audio
  • SDI Inputs Supports 16 channels
  • HDMI Inputs Supports 8 channels
  • Re-Synchronization of encoded Surround Sound Dolby-E, Dolby-D, AC-3 Automatically detected
Reference Input
  • Number: One
  • Type: 1 V P-P Composite Video, PAL or NTSC or Tri-Level Sync
  • Impedance: 75 Ω
  • Return Loss: >40 dB
Ethernet Control
  • Type: RJ-45
  • Speed: 10/100 Mb/s
  • Protocols: HTTP, TCP/IP, SNMP
General Specifications
  • Size: 5.63” W x 1.65” H x 6.75” D (143 mm x 42 mm x 172 mm) including connectors and flange
  • Weight: 1 lb 12oz
  • Power: 12 volts, 35 watts (100-230 VAC modular power supply)
  • Temperature Range: 0 to 40° C ambient (all specs met)
  • Relative Humidity: 0 to 95%, non-condensing
  • Altitude: 0 to 10,000 ft.
