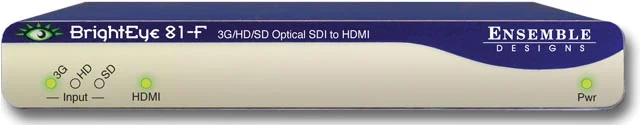

BrightEye 81-F Optical to HDMI and 3G / HD / SD SDI Electrical Converter

Convert optical HD or SD video feeds to HDMI and electrical with the BrightEye 81-F. Convenient for feeding a video monitor, BrightEye 81-F provides a reliable way to monitor optical feeds in broadcast and mobile applications.

BrightEye 81-F is an optical to HDMI and electrical converter for use with standard definition video signals and 3 Gb/s and 1.5 Gb/s high definition signals. The video input is received on an optical LC connector, converted, and then output on both a BNC connector and an HDMI connector. The HDMI output is not HDCP encrypted.

For facilities using 3G, the issue of monitoring the signal becomes a challenge. A 3G video signal can be easily viewed via the HDMI output.

Signal monitoring and control is provided through the included BrightEye Mac and BrightEye PC software.

Product Documents

Datasheet

Manual

Firmware

Contact Sales

Description

  • Optical to HDMI Converter
  • Optical to Electrical Converter
  • Use with Video Monitors that have HDMI Input
  • Use with HD or SD Signals
  • 3G HD, Level A Supported
  • Optical Receiver
  • Passes Embedded Audio
Optical Input
  • Number: One, LC/UPC
  • Type:
    • 270 Mb/s (SMPTE 297M, optical equivalent of 259M)
    • 1.485 Gb/s Gb/s HD Serial Digital (SMPTE 274M, 272M or 296M)
    • 2.97 Gb/s HD Serial Digital (SMPTE 424M, 425M), Level A
  • Wavelength: 830 to 1610 nm
  • Max Cable Length: 20 km (For greater distances, or higher power and larger loss budgets, please contact the factory)
  • Fiber Type: Single Mode. Multi-mode compatible with attenuation at transmit end.
SDI Standards Supported
  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50, 59.94 or 60 Hz
  • 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
  • 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
  • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
  • 525i, 625i (SMPTE 259M)
HDMI Output
  • Number: One
  • Type: HDMI 1.3
  • Format: Follows Input
Serial Digital Output
  • Number: One, BNC
  • Signal Type: Follows Input
  • Impedance: 75 Ω
  • Return Loss: >15 dB to 1.485 GHz, >10 dB to 2.97 GHz
  • Output DC: None (AC coupled)
General Specifications
  • Size: 5.625” W x 0.8” H x 5.5” D (143 mm x 20 mm x 140 mm) including connectors
  • Power: 12 volts, 7 watts (100-230 VAC modular power supply)
  • Temperature: 0 to 40° C ambient (all specs met)
  • Relative Humidity: 0 to 95° non-condensing
  • Altitude: 0 to 10,000 ft.
