BrightEye 15 SDl to Analog Converter with Frame Sync/Genlock

BrightEye 15 is a digital to analog video converter with a timeable output. It’s perfect for feeding analog switchers and routers, where signal timing is required.

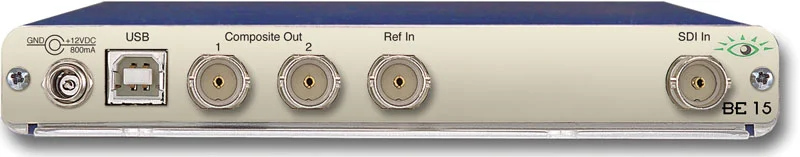

BrightEye 15 has an SD SDI video input and a reference input. The input signal is converted to analog composite and synchronized (genlocked) to the reference signal. The analog composite output is fully timed with respect to the reference, including ScH phase.

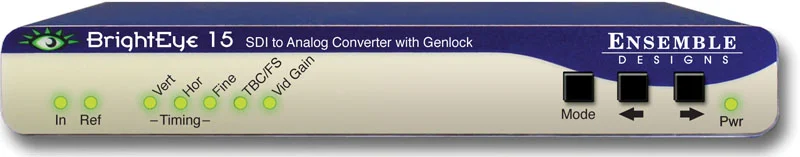

Basic controls are provided on the front panel. With the BrightEye Control app, you can control video proc functions; Gain, Chroma, Pedestal, and Hue. The vertical interval can be passed or blanked.

Product Documents

Datasheet

Contact Sales

Description

  • Feed Analog Switchers and Routers
  • SD SDI Input
  • Analog Video Output
  • Timing Control for Output
