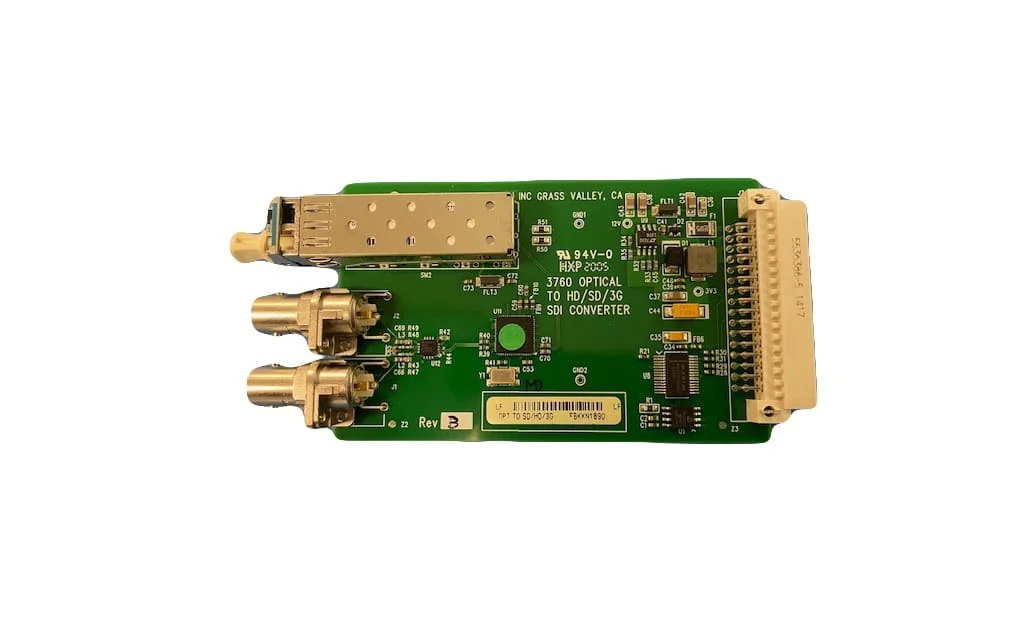

avenue_3760_pcb-1021x623avenue_3760_pcb-1021x623

Avenue 3760-IS 3G/HD/SD/ASI Optical to Electrical Converter

The Avenue 3760-IS module is an optical-to-electrical converter that supports 3 Gb/s HD, 1.5 HD, SD, and ASI data rates. The optical input is converted to electrical form and the resulting serial digital signal is reclocked and delivered to two BNC outputs.

The Avenue 3760-IS installs in the 1RU Avenue Intersection Frame.

Product Documents

Datasheet

Contact Sales

Description

  • Optical to Electrical Converter
  • 3G/HD/SD/ASI
  • SC Optical Connector
  • High Density in Avenue Intersection Frame
Optical Input
  • Number One
  • Signal Type 3G/HD/SD/ASI
  • SMPTE 297M, optical equivalent of 259M or
  • DVB-ASI at 270 Mb/s or
  • SMPTE 274M, 292M, 296M
  • SMPTE 424M, 425M
  • Wavelength 830 to 1610 nm
  • Receiver Sensitivity SD and ASI: -18 dBm
  • HD: -18 dBm
  • Max Cable Length 20 km
  • Fiber Type Single Mode
  • Multi-mode compatible with
  • attenuation at transmit end
  • Connector SC/UPC
Serial Digital Output
  • Number Two
  • Signal Type 270 Mb/s SD Serial Digital
  • SMPTE 259M or DVB-ASI at 270 Mb/s
  • 1.485 Gb/s HD Serial Digital
  • SMPTE 274M, 292M or 296M
  • 2.97 Gb/s HD Serial Digital
  • SMPTE 424M, 425M
  • Follows input
  • Impedance 75 Ω
  • Return Loss >15 dB to 1.485 GHz
  • >10 dB to 2.97 GHz
  • Max Cable Length 300 meters for 270 Mb/s
  • 100 meters for 1.485 Gb/s
  • 70 meters for 2.97 Gb/s
General Specifications
  • Power Consumption <5.0 watts
  • Temperature Range 0 to 40°C ambient (all specs met)
  • Relative Humidity 0 to 95%, noncondensing
  • Altitude 0 to 10,000 ft
