Home  //  Monitors  //  PRM-3G  //  Monitor PRM-317-3G
17 Inch Reference Monitor prm-317-3g17 Inch Reference Monitor prm-317-3g
  • 17 Inch Reference Monitor prm-317-3g
  • Monitor PRM-317-3G

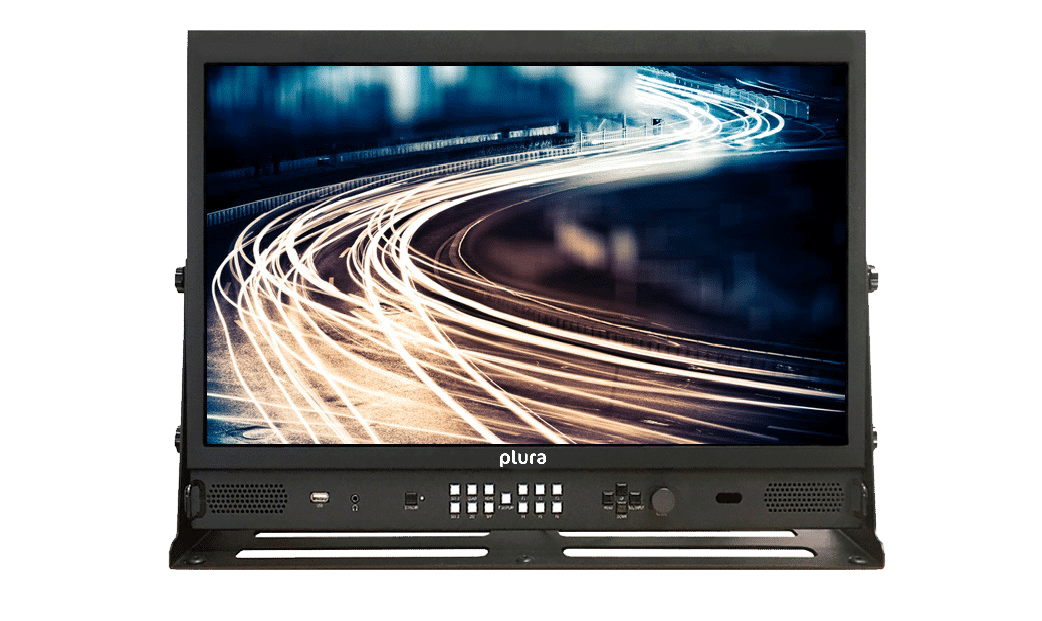

    PRM-317-3G is a 17″ – Reference Broadcast Monitor equipped with UHD 10 bit panel (3840×2160). supports up to 3G 1080P resolutions, 3D LUT, with waveform and vector scope.

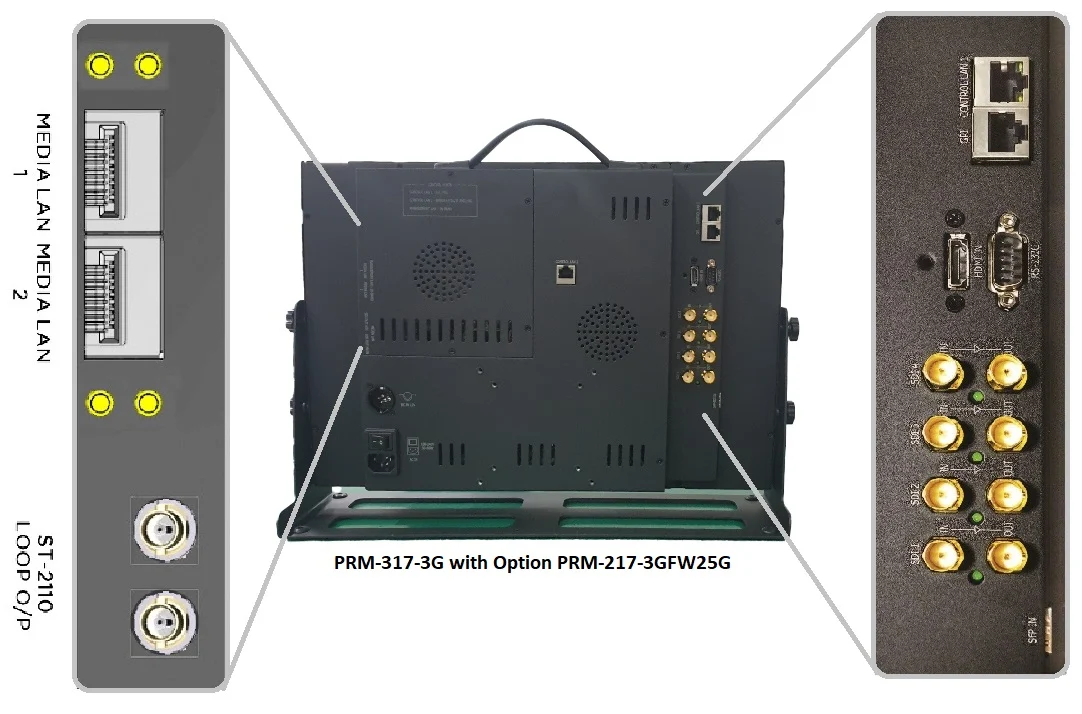

    The monitor is field upgradable to PBM-217-4K with S/W based license option “PRM-217-3GFW4K” and/or SFP-217-25G with S/W & H/W based license option “PRM-217-3GFW25G“.

    It was designed in alignment with increased industry demand for affordable, reliable and future proof reference monitor.

    Plura PRM-317-3G, PBM-217-4K and SFP-217-25G bring the exceptional built-in features Plura monitors are known for, maintaining quality and performance to give production facilities an edge in FHD, UHD(1,2) and 25G IP-2110(1) monitoring respectively.

    Plura PRM-317-3G, PBM-217-4K and SFP-217-25G focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require. Ember+ control capabilities are included, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

    Product Documents

    Datasheet

    • PRM-317-3G Datasheet

    Manuals

    • PRM-317-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PRM-3G Mechanical Drawings

    Firmware

    • PRM-217-3G CC SN 12APL Firmware

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog
    Contact Sales
    • Highlights
    • Specifications
    • Videos
    • Product Downloads

    Description

    • PRM-317-3G, 17 Inch Reference Monitor

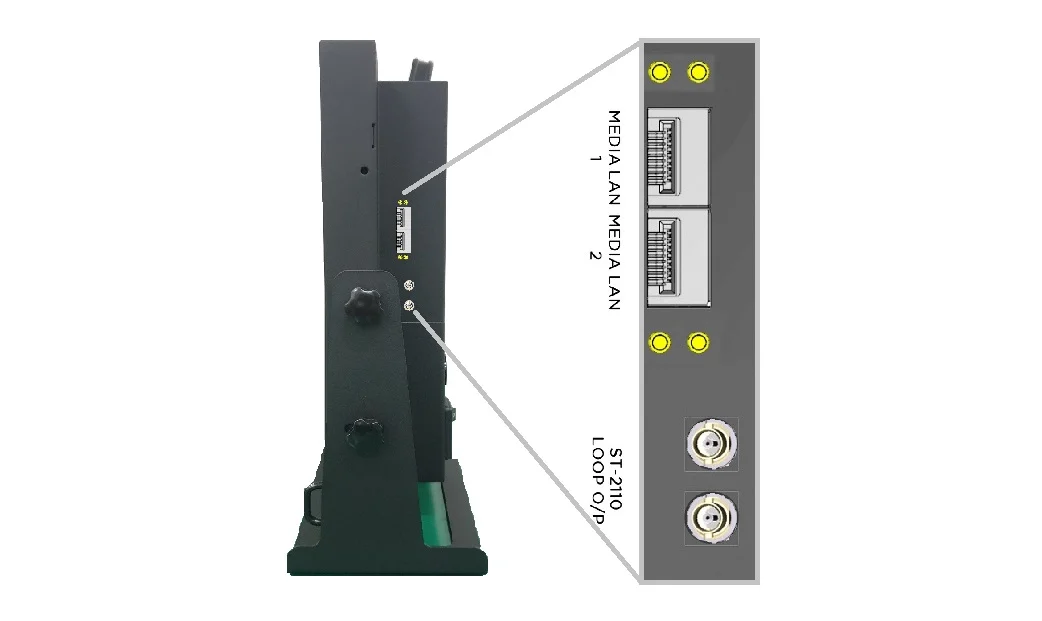

    • 2 x 25 GbE SFP28 ports supporting ST 2110, ST 2022-7(1)
    • 1 x HDMI 2.0 HDCP 2.2 port

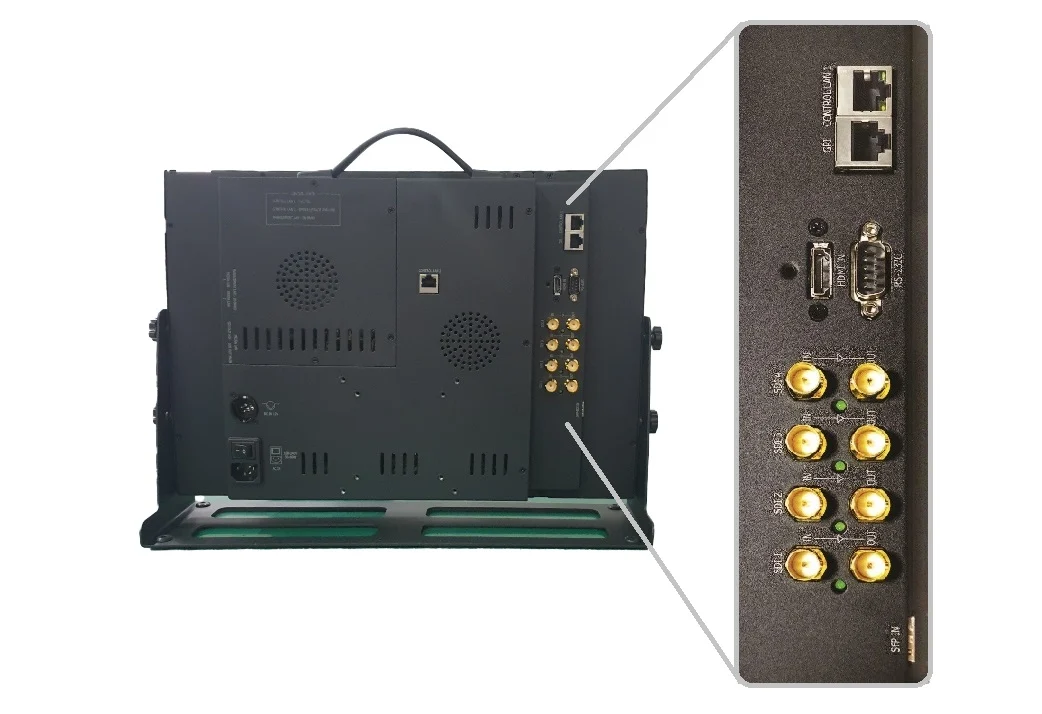

    • 2 x 12G(1,2), 6G(1,2), 3G, 1.5G ports
    • Quad 3G SQ(1,2) and 2SI(1,2) support
    • 1 x SFP-SDI Slot supporting Multiple I/O Standards
    • TRUE 17 Inch Reference Monitor with 10 bit panel color depth
    • RGB 12 Bit Digital Signal Processing
    • Supports up to 4096 x 2160 resolutions
    • HDR (High Dynamic Range) capabilities
    • PQ (SMPTE ST 2084) & HLG (Hybrid Log Gamma)
    • Gamma Selectable (0.8 – 3.0)
    • 3D LUT (ITU-R BT 2020, Native, BT.709, SMPTE-C, EBU, NTSC, D-Cinema)
    • Color Temperature – User, VAR, Adjustable (9300K TO 3200K)
    • (ICAC) – Plura Intelligent Connection for Alignment & Calibration
    • ColourSpace PRO tool integration, license is required
    • S-Log LUT curves integration included
    • NMOS, JT-NM Interoperability(1)
    • Ember+ Compliant, Ethernet & RS232 Remote Control
    • TSL 4.0, 5.0 and Internal Monitor Display (IMD) support
    • Cutting edge De-interlacing and Scaling Technology
    • Display Advanced Waveform & Vector Scope with line select
    • Programmable 6 User Front Pushbutton Controls & GPI
    • Various and User defined Markers Display Safe Area in HD and SD
    • Closed Caption (608/708) – North American Market
    • Teletext 801 & Subtitle OP-47- Australia & N.Z. Market
    • Fast Response Time for high motion video
    • Zeroscan / Pixel to Pixel Mode / Tally / DC Operation Ember+
    • False Color and Peaking Filter / Focus Assist
    • Video Range test with adjustable Y & C values
    • Display LTC & DVITC time code with line select
    • Embedded Audio Input, Digital Audio Decoding
    • Internal Pattern Generator and Wall Control System
    • OPTION: Battery Mount, Rack mount, Wall mount, Carry Case
    • (1) PRM-317-3G + “PRM-217-3GFW25G” S/W and H/W based license = SFP-217-25G. Refer to SFP-25G data sheet for more specifications.
    • (2) PRM-317-3G + “PRM-217-3GFW4K” S/W based license = PBM-217-4K. Refer to PBM-4K data sheet for more specifications.
    • More Plura Products information click here

    Additional information

    Weight 10 lbs / 4.5 kg
    Dimensions 17.4 × 12.2 × 3.18 in / 442.0 × 309.9 × 80.8 mm
    Screen Size

    17"

    Style

    Desktop

    Screen Resolution

    3840×2160

    Backlight

    LED

    Color Depth

    10bit

    Advanced Features

    Closed Caption 708/608, Ember+, Optional IP2110 / 2022-7, Teletext 801 & OP-47, Battery Operation, HDR

    Control

    Ember+, Optional NMOS, Ethernet, IR, RS232, Wall Control System

    ICAC

    Yes

    Video

    Quad 3G (SQ/2SI), 12G, 3G, CCVS, DVI, HD-DL, HDMI, HDSDI, SDSDI, VGA, Y/C, YUV

    Audio

    Analog Audio, Embedded Digital Audio

    Additional Features

    Ember+, Closed Caption, Vectorscope, Waveform

    Housing

    VESA (100×100) & (75×75), Optional 19" Rack

    RU

    7

    Videos

    Prev 1 of 1 Next
    • Ember+ TSL Integration with Plura Monitors

      Ember+ TSL Integration with Plura Monitors

    • PLURA Tutorials: Factory Reset on a PBM Monitor

      PLURA Tutorials: Factory Reset on a PBM Monitor

    • 2019 NABShow New York - BFE Controller

      2019 NABShow New York - BFE Controller

    • 2017 NABShow New York - Plura PRM 224

      2017 NABShow New York - Plura PRM 224

    Prev 1 of 1 Next

    Product Documents

    Datasheet

    • PRM-317-3G Datasheet

    Manuals

    • PRM-317-3G Manual
    • Plura System Controller Manual
    • Ember+ / TSL Control Protocol User Guide

    Drawings

    • PRM-3G Mechanical Drawings

    Firmware

    • PRM-217-3G CC SN 12APL Firmware

    Additional Resources

    • Monitoring Accessories
    • Plura Products Catalog

    Related products you might be interested in

    PBM-224-4K24″ monitor supports up to 4096 x 2160 resolutions, focuses on delivering the highly detailed, accurate color representation and stunning picture consistency that high-end production applications require. PBM-4K monitor series supports ST-2082, ST-2110 and other earlier industry standards, 2 x 12G/3G/HD/SD-SDI inputs with active loop, 2 x SFP+ inputs & HDMI 2.0. The PBM-4K series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system. PBM-4K series offers HDR Display capabilities supporting PQ (ST-2084) & HLG standards. The PBM-4K series also adopts the exceptionally slim form factor that Plura customers enjoy, ensuring that even the largest 4K monitors in the portfolio demand a modest slice of real estate.
    PBM-317-3G-10PBM-317-3G-10, 17″ Portable & Rack-mountable monitor offers an elegant slim design integrated with Grade A – 10 BIT LED 17″ panel and delivers outstanding BLACK performance, HDR (High Dynamic Range) capabilities, very fast response time for smooth video with virtually NO motion blur, High contrast ratio, wide viewing angle, accurate color reproduction and quality picture consistency that meets all your HD & SD Monitoring application. PBM-3G series designed for every possible broadcast mobile environment ensuring accurate color reproduction in accordance with SMPTE, EBU, REC 709 Broadcast Standards. The standard calibration feature enables gamma, color temperature and white luminance level adjustments to meet all Broadcast standards. The PBM-3G is compatible with Plura (ICAC) calibration tool and provides 10 bit look up table (LUT) (1024 steps of grayscale). As an optional feature the PBM-3G series offers Ember+ compliant control system capabilities, i.e. can be controlled by Lawo-VSM, BFE-Core or any other Ember+ compliant control system.

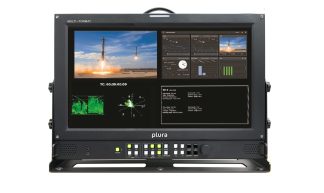

    SFP-324-HThe SFP-324-H is integrated with powerful H/W & S/W platforms to support Coaxial 3Gb/s BNC I/O connectivity, Coaxial SFP I/O connectivity, IP SDI SFP+ over Fiber decoding “ST-2110” with Third-Party H/W decoder and the NEW PIPM-R-7 “Plura Software Stack IP Platform” decoder. SFP-324-H, 24″ monitor is the NEW FUTURE PROOF Hybrid Monitor which supports
