Avenue Audio Adaptors and Interfaces

Interfacing Avenue digital audio modules with existing twisted pair cabling is easy. Simply plug the appropriate interface adapter into the Avenue backplane and connect existing twisted pair cables to it. Several different adapters are available for conversion between balanced 110 ohm cabling and the unbalanced 75 ohm I/O on Avenue digital audio modules. The front of the interface has 3-position plug-in terminal blocks that make it simple to terminate the twisted pair cable and then plug it into the adapter. BNC connectors on the rear of the interface plug directly into the Avenue backplane.

The 5080 is a 5 Port AES 110 Ohm Adapter for use with:

5150 as an AES DA

• Requires one per 5150 to provide 1 in/4 out
• Requires two per 5150 to provide 1 in/9 out

5155 as a Dual AES DA

• Requires two per 5155 to provide 2 × 1 in/4 out

The 5082 is a 4 Port AES 110 Ohm Adapter for use with:

8500 with 8510 or 8415 Audio Sub modules when all four AES ports are desired

• Requires one per 8500

5330 with 6330 Audio Sub module when all four AES ports are desired

• Requires one per 5330

The 5084 is a 2 Port AES 110 Ohm Adapter for use with:

8500 with 8510 or 8415 Audio Sub modules when only two AES ports are desired

• (in order to allow access to four SDI outputs); Requires one per 8500

5330 with 6330 Audio Sub module when only two AES ports are desired

• (in order to allow access to four SDI outputs); Requires one per 5330

5230 with 6230 Audio Sub module

• Requires one per 5230

7600 HD Mux/Demux

• Requires two per 7600 for full access to all four AES ports (just one for two ports)

7900 with 8415 Audio Sub module

• Requires two per 7900 for full access to all four AES ports (just one for two ports)

7910 with 8415 Audio Sub module

• Requires two per 7910 for full access to all four AES ports (just one for two ports)

7920 with 8415 Audio Sub module

• Requires two per 7920 for full access to all four AES ports (just one for two ports)

7930 with 8415 Audio Sub module

• Requires two per 7930 for full access to all four AES ports (just one for two ports)

7555 HD/SD Video Processing Frame Sync

• Requires two per 7555 for full access to all four AES ports (just one for two ports)

7660 HD/SD Embedder, Disembedder and Data Inserter

• Requires two per 7660 for full access to all four AES ports (just one for two ports)

9550 3G Video Processing Frame Sync

• Requires two per 9550 for full access to all four AES ports (just one for two ports)

9600 3G Embedder, Disembedder and Data Inserter

• Requires four per 9600 for full access to all eight AES ports (just one for two ports, two for four ports, three for six ports)

The 5094T is a 5 Port AES 110 Ohm Adapter for use with:

6010 ADC. It provides two copies each of outputs 1/2 and 3/4. A fifth plug-in terminal block is provided for the AES reference input.

The 5094S is a 4 Port AES 110 Ohm Adapter for use with:

6010 ADC providing two copies each of outputs 1/2 and 3/4. The 5094S is physically shorter than the 5094T, which allows the 6010’s coaxial AES reference input to be used.

The 5096 is a 2 Port AES 110 Ohm Adapter for use with:

6020 DAC providing for inputs 1/2 and 3/4

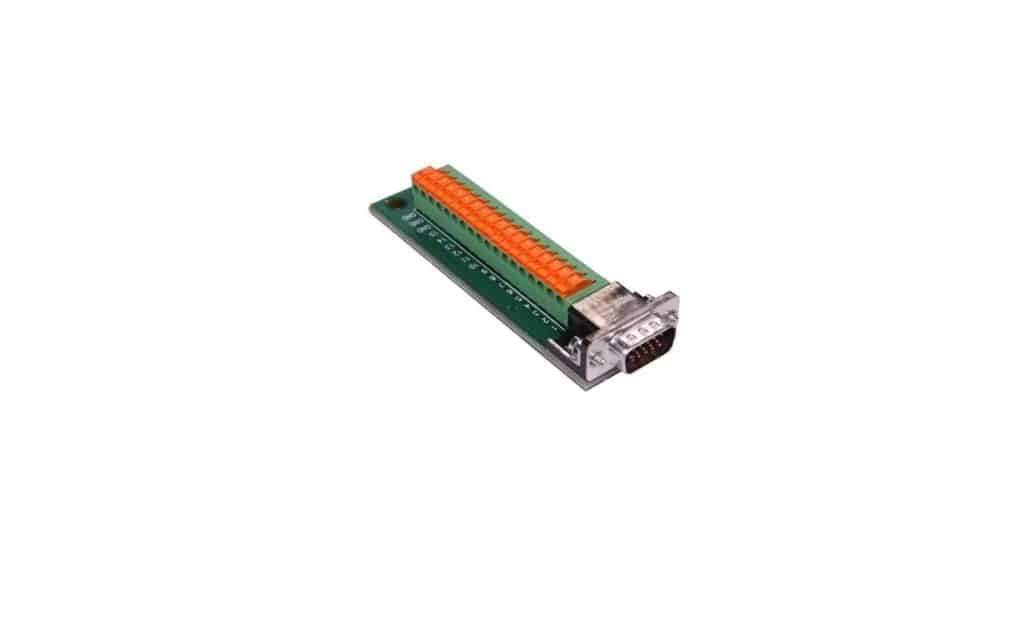

The PHX15 Breakout Adaptor with Phoenix Terminals for use with:

Any Avenue module that uses the HD15 Analog Audio Connector

BEAC Analog Audio Breakout Cable for use with:

Any Avenue module that uses the HD15 Analog Audio Connector. One end of this cable has an HD15 connector and the other end is pigtailed for use with your choice of connector (e.g. XLR.)
