VF-PBM-307

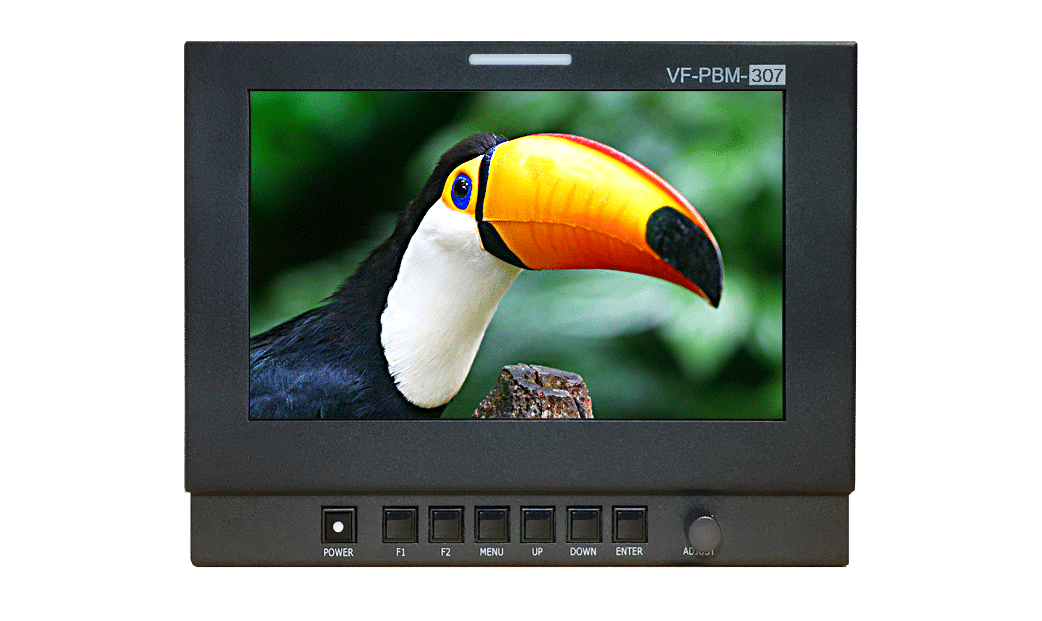

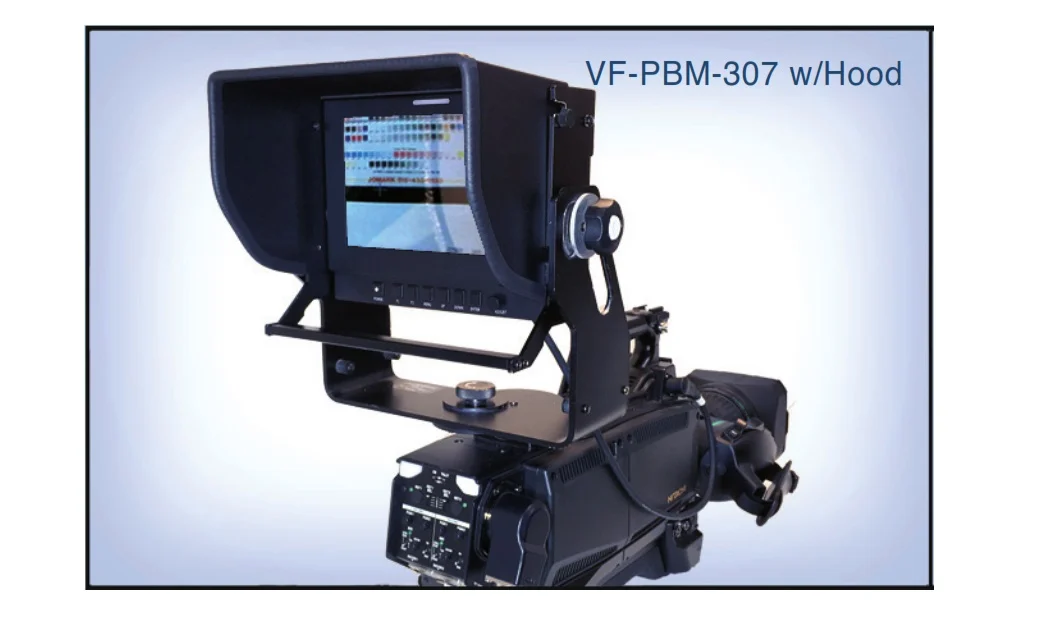

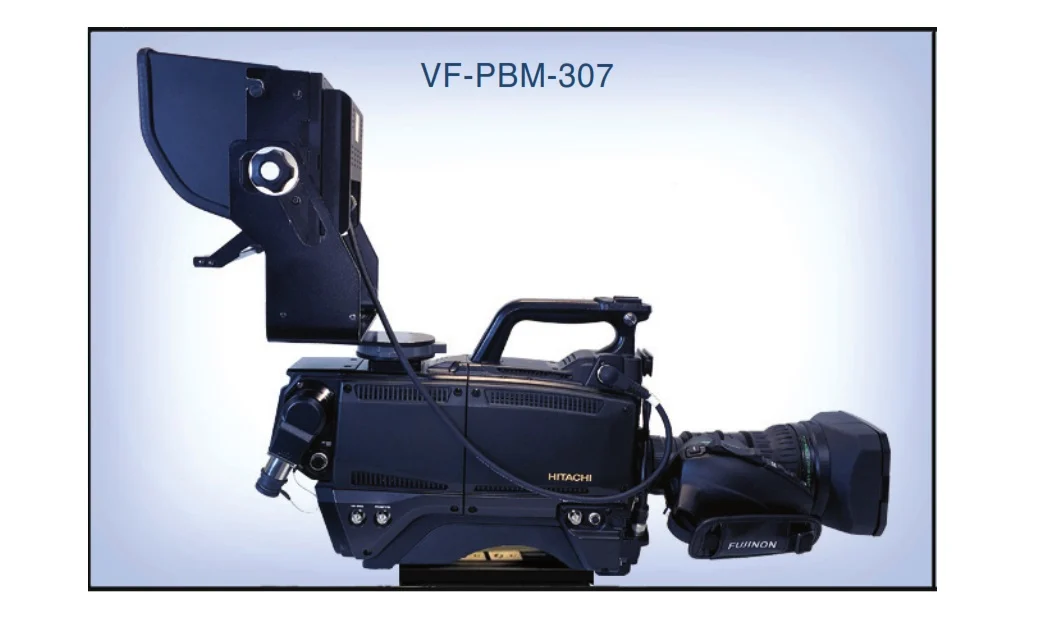

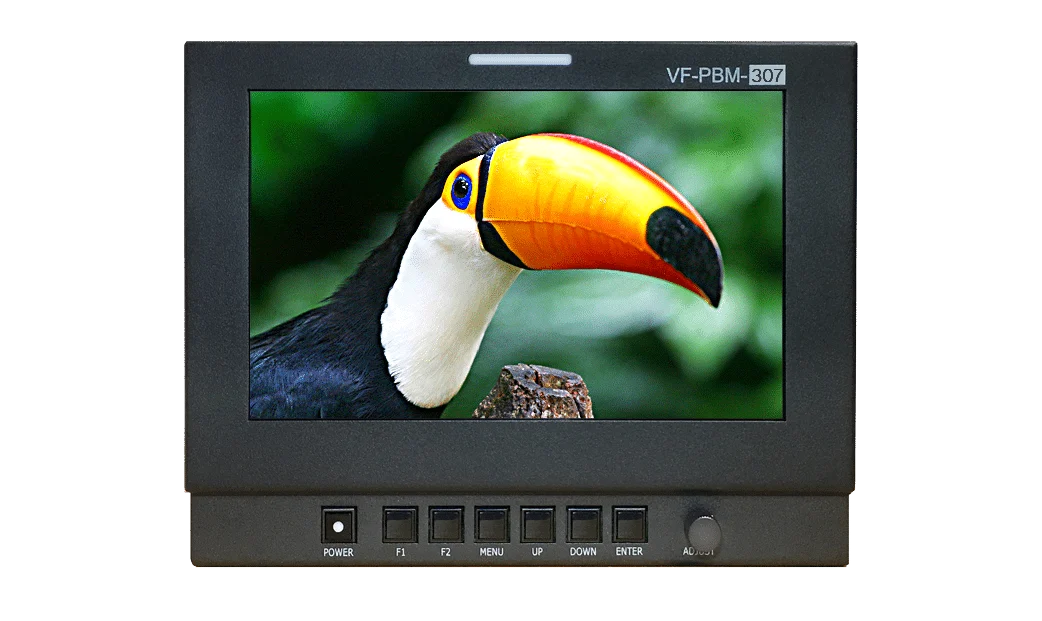

VF-PBM-307, Plura 7″ Viewfinder designed and built exclusively for Hitachi Cameras.

Product Documents

Description

High resolution, 7″ TFT-LCD, Backlit, Color, display panel.
Viewfinder Power On/Off.
Preset and user-programmable color temperature – User, VAR, 11000^oK, 9300^oK, 6500^oK, 5400^oK, and 3200^oK.
LCD Dimming Control.
Manual Dimming Level Control.
Tally LED function (Front Green/Red/AMBER, Back Red).
3 user-programmable memories to store and recall operational settings.
Switchable Aspect Ratio – 16:9, 4:3.
Over Scan/Zero Scan/Pixel to Pixel.
Picture magnification – 2X, 3X, 4X, 5X.
Mono/ Color display modes.
Preset Gamma selection – User-selectable gamma curves.
OSD: Graphic based On Screen Display, 6 Languages (UNICODE System).
Markers – Preset and user-programmable.
Safety Zone – 16:9, 4:3 aspect ratio, EBU action/ graphics, preset safety zones.
Crosshair – center marker.
Select-able color for Safety, Marker and Crosshair markers.
Auto Calibration: CA-210 (Minolta)
UMD – Programmable characters for indicating Tally On condition and the camera ID and camera person’s name.

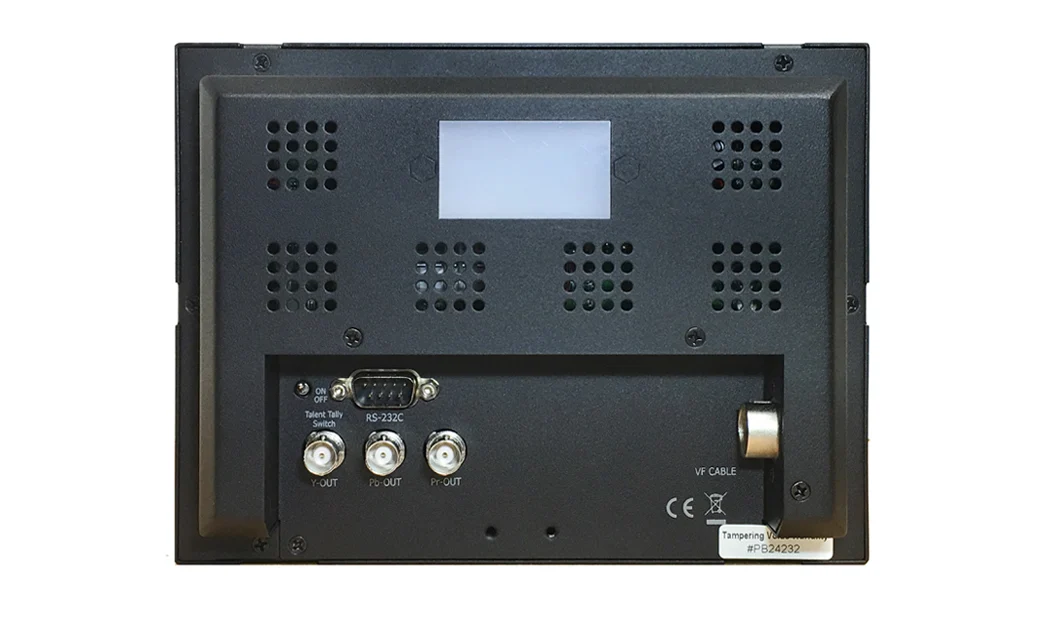

VF-Cable input – VC-90A (1x supplied with unit when purchased from Hitachi)
Component(Y,Pb,Pr) input with Active Loop Out.
Mechanical mount – Provided with 1/4″-20 threaded hole for use only with HITACHI AT-90, AT-500 or AT-750 viewfinder mounts.
